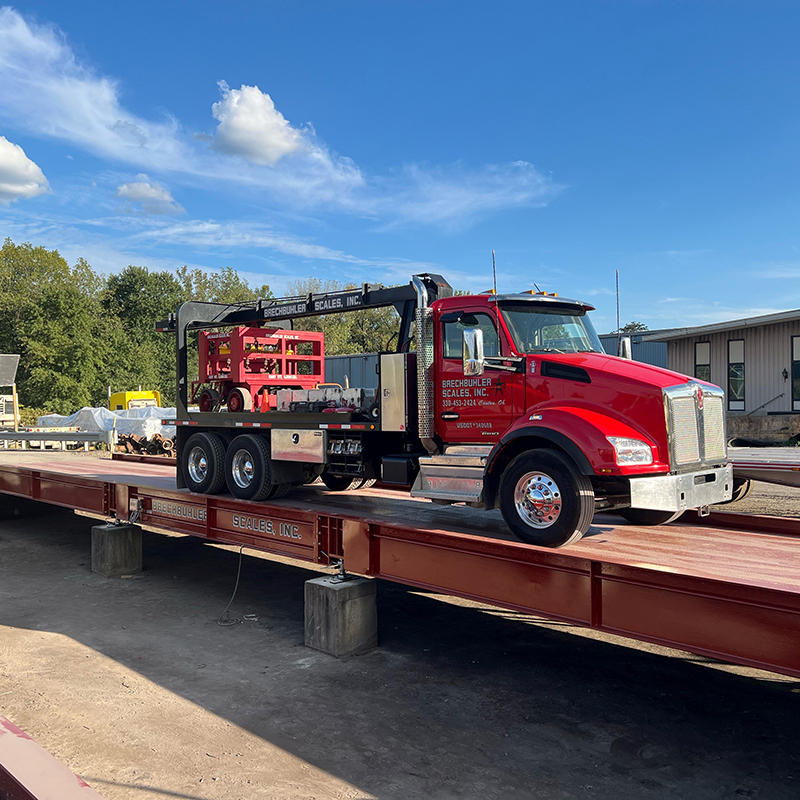

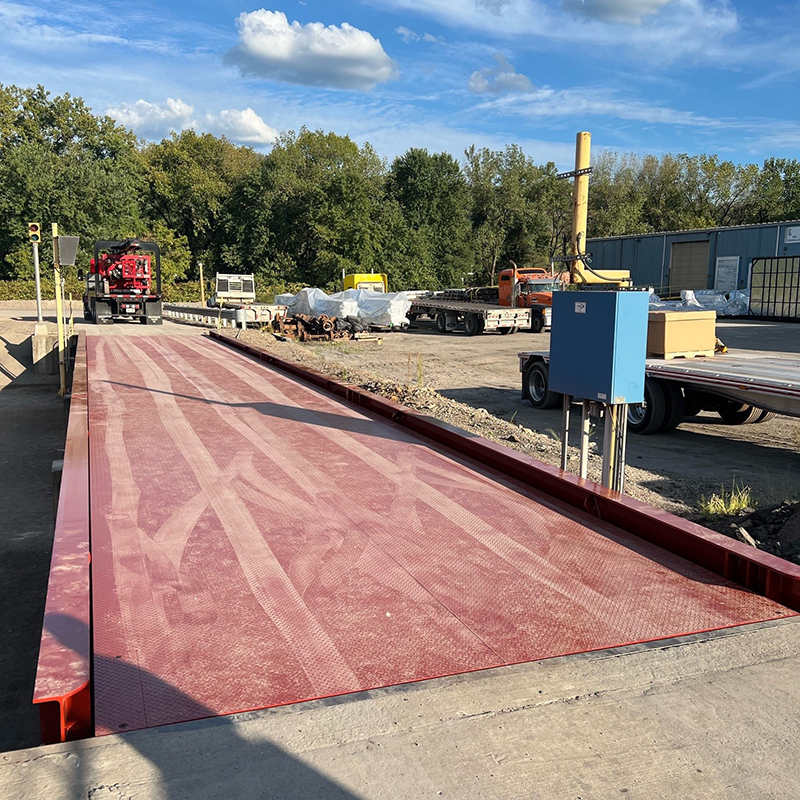

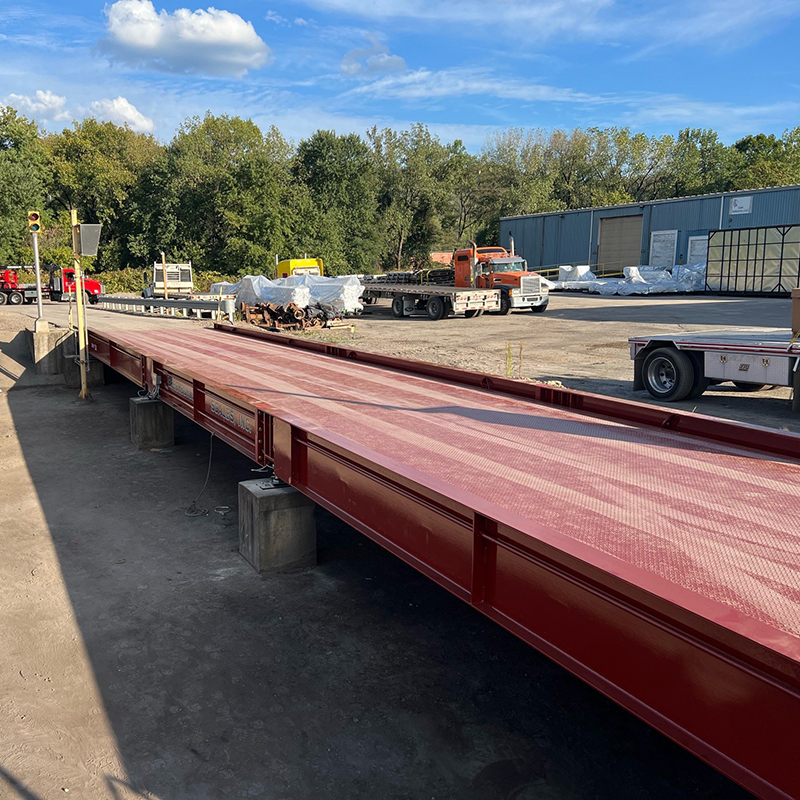

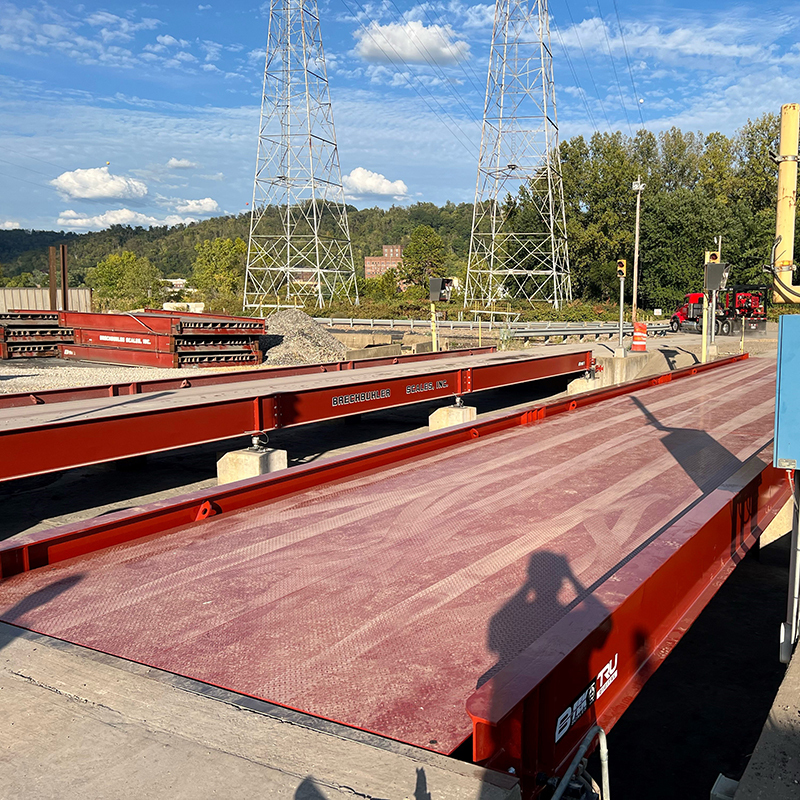

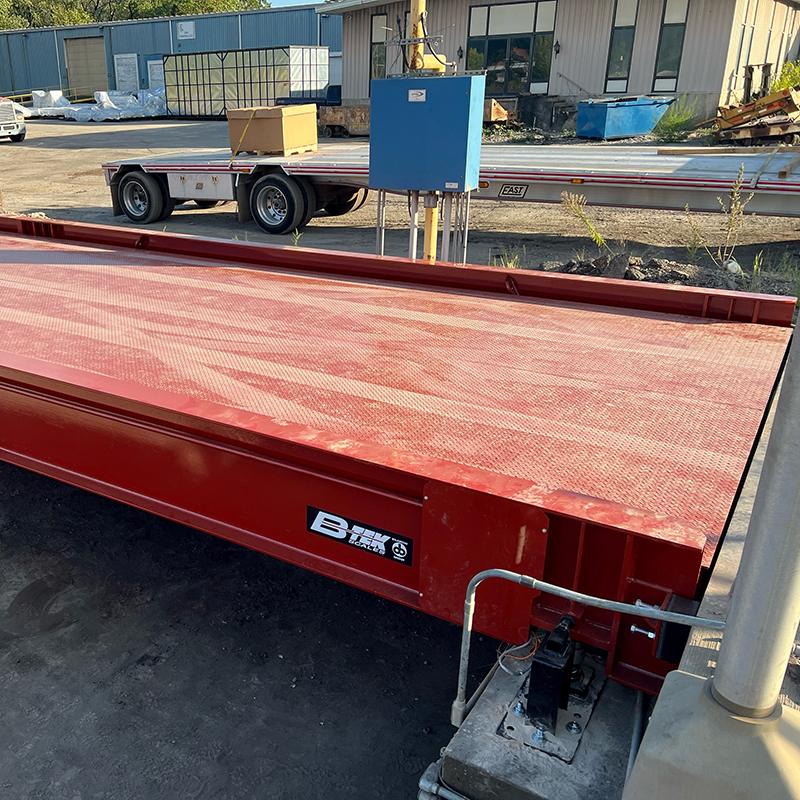

Side Rail Truck Scale
https://www.b-tek.com/products/vehicle-scales/truck-scales/truck-scale-weigh-bridges/side-rail-truck-scale-siderail-group
Share this product beyond Facebook and Twitter!
Product Code: BS-7011-270-FESD-HDSR-CPD-M
Side Rail truck scales represent one of the most popular truck scale designs in our industry up until the mid-2000’s. These scales are now mostly for retrofit or replacement.
Details
The B-TEK Side Rail truck scale is renowned for durable and accurate operation in the harshest of environments. 24” main girder beams provide high load bearing capacity, weighbridge rigidity and also act as integral guide / guard rails. The Side Rail truck scale is available in steel and concrete decks and with digital or analog load cells.
B-TEK’s Side Rail truck scale is designed with enhancements specifically tailored to make service and calibration easy and efficient:
- Hermetically sealed stainless steel (IP68/69K) load cells – Ultimate protection from harsh weather environments
- Dual calibration storage - download the calibration from the indicator to the load cells or upload from the load cells to the indicator, providing speedy plug-and-play replacement
- Nexia™ remote monitoring - provide full insight into scale performance through detailed health monitoring and event notifications
- NTEP Certified Legal for Trade
- Capacity: Up to 270,000 lb
- Concentrated Load Capacity: 80,000 lb
- Weighbridge deck: 3/8” tread plate decking
- Stainless steel compression column load cells
- Full-system surge voltage / lightning protection
Specifications
- COC: 97-116A1
- Type: Above ground integral side rail
- Scale Capacity: Up to 270,000 lb
- Concentrated Load Capacity: 80,000 lb
- Scale Height: 23”
- Available Widths: 10’ - 14’
- Weighbridge Deck: 3/8” tread plate decking
- Steel Preparation: Commercial blast cleaning SSPC-SP6
- Paint System: Cross linked two-part epoxy primer followed by polyurethane topcoat
- Foundation Anchor Bolts 3/4" X 7" included
- Load Cell:77K CPD-M digital compression column load cell, RS-485 digital output, stainless hermetically sealed (IP68/69K) construction
- Load Cell Cable: Stainless steel sheathed cable with clear polymer coating
- Junction Box: NEMA 4X stainless steel enclosure(s) and 8-cell terminal board with GDT surge protection
- Surge Protection: CPD-M digital load cells along with DD Series indicator protect against lightning.
- Built-in surge protection enhanced by Tripp-Lite Isobar Ultra 4-Outlet AC line transient protection device and two in-line serial port surge protection devices
- Indicator: Supplied with a DD700 desktop digital indicator
