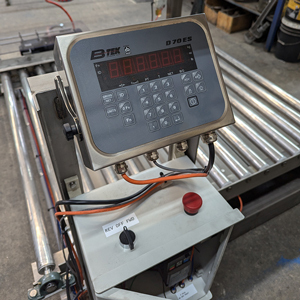

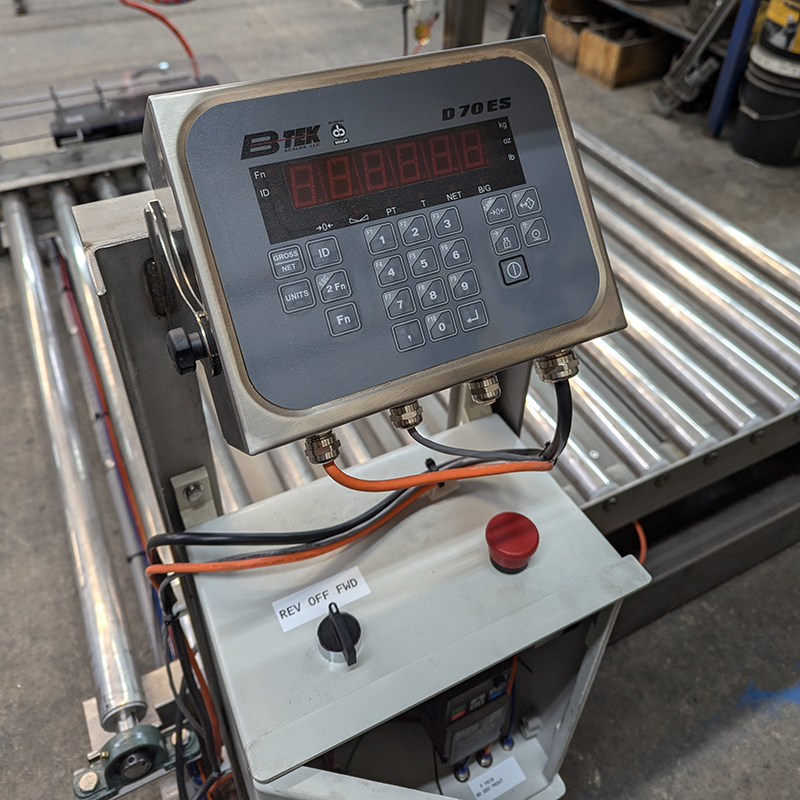

D70ES Multi-Functional Analog Indicator
The D70ES is B-TEK’s most versatile analog indicator, offering powerful features across a wide range of industrial weighing applications. Designed to meet the needs of bench, floor and truck scales, the D70ES supports everything from simple weighing to advanced Truck I/O functions. Housed in a durable stainless steel enclosure with an IP66 rating, it’s built to withstand tough environments. With intuitive operation, flexible configuration options and rapid setup via seven preloaded scale modes, the D70ES helps get your system up and running with minimal downtime.
- Quick Set-Up Function – Enables rapid deployment using seven pre-configured scale modes for truck, floor and bench applications
- Truck In/Out Functionality – Provides a streamlined workflow for truck weighing and data tracking
- Customizable Print Formats and Data Streams – Tailors output to match your business processes and documentation needs
- Durable Stainless Steel Enclosure – IP66-rated housing with swivel bracket ensures long-lasting performance in industrial environmentsDurable Stainless Steel Enclosure – IP66-rated housing with swivel bracket ensures long-lasting performance in industrial environments
- Flexible Power and Display Options – Operates on AC or DC power and can be configured as a primary or secondary display
Details
The D70ES is B-TEK’s most versatile analog indicator, offering powerful features across a wide range of industrial weighing applications. Designed to meet the needs of bench, floor and truck scales, the D70ES supports everything from simple weighing to advanced Truck I/O functions. Housed in a durable stainless steel enclosure with an IP66 rating, it’s built to withstand tough environments. With intuitive operation, flexible configuration options and rapid setup via seven preloaded scale modes, the D70ES helps get your system up and running with minimal downtime. Whether you need single-ingredient batching, customized print formats or up to 300 Truck ID registrations, the D70ES puts you in control.
Specifications

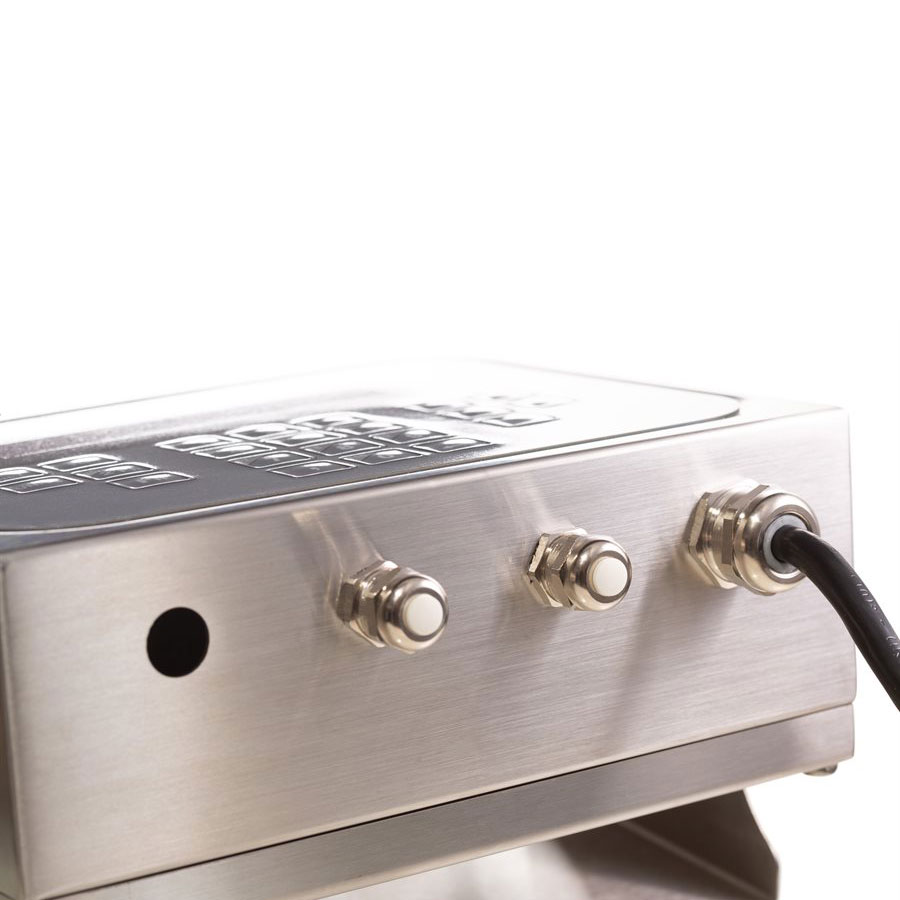

- Stainless steel (IP66/NEMA 4x) enclosure with swivel bracket

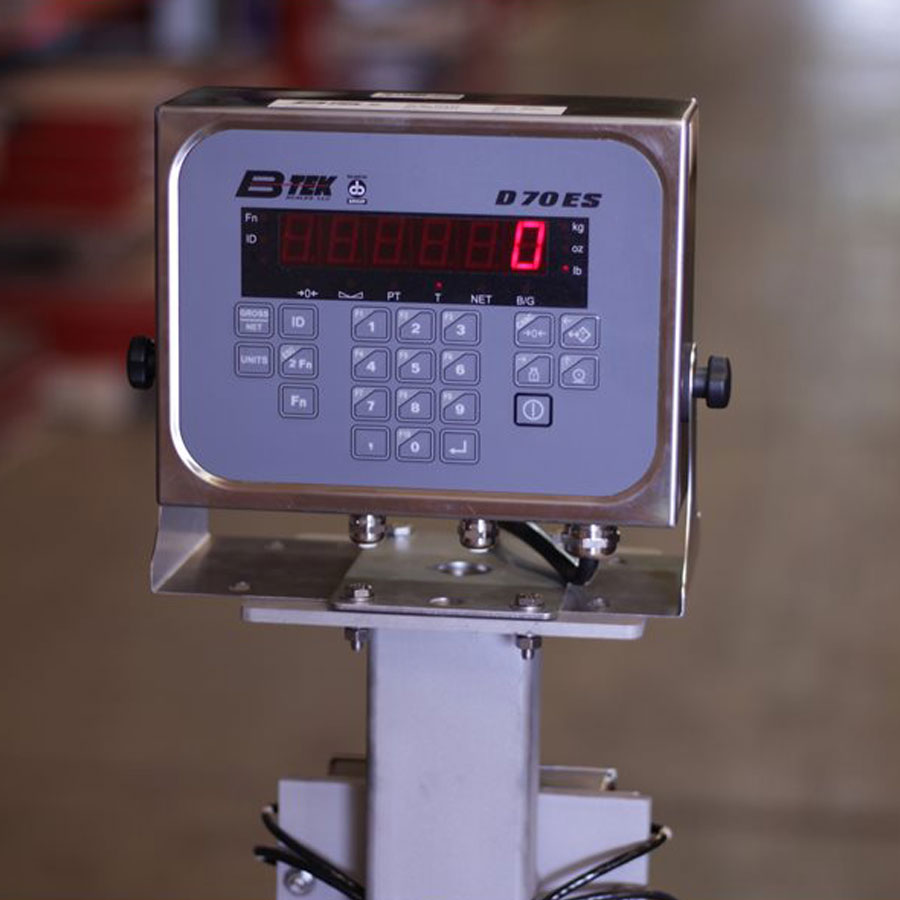

- Red LED 7 segment display, 6 - 0.8” digit
- Numerical and 10-function membrane keypad
- Quick set-up function with seven pre-configured modes
- Capacitive backed time/date/year
- Audit trail tracking for configuration and calibration changes
- Power (12) 350 Ohm cells
- Single weighing
- Truck In/Out
- 120 VAC or 12 VDC external power
- Configurable print formats
- Units: pounds, kilograms, ounce
- 300 Truck ID storage registration
- Peak hold
- Totalize by partial, general or code
- Configurable as primary or secondary display
- Certifications:
- NTEP COC: 17-010
- MC: AM-6054C
- OIML: R76/2006-NL1-17.33
- IP Rating: IP66
IP Rating
- IP66
Loading Resources ...
Options & Accessories
Loading Options & Accessories ...
Frequently Asked Questions
The D70es 12 VDC connector can take up to a 14ga stranded wire, and the 4-20ma output connectors can be up to an 18ga stranded wire. Normally a 16ga 12VDC wires is used, and a 22ga for the analog output.
