Patient Scale

Specifications

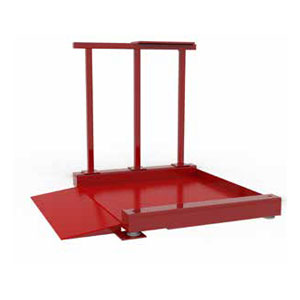

• Above-ground scale with integral ramp and hand rails:
• Certificate of Conformance: NON-NTEP
• Type: Low profile above ground
• Scale Capacity: 800 lb x 0.2 lb
• Scale Height: 1-1/2” nominal deck height
• Platform Sizes: 34” x 34” & 34” x 40” - Custom sizes upon request
• Weighbridge: Carbon steel smooth deck with non-slip surface finish, single integral ramp standard
• Deck: Side access FRP junction box, leveling foot adjustment holes in side rail
• Paint System: Grey epoxy finish
• Load Cell: Plated alloy steel, 350 Ohms, 3.0mV/V 800 lb. capacity: (4) 500 lb. cells
• Leveling foot: B-TEK stainless steel ball encapsulated foot - 2.5” diameter base
• Junction Box: NEMA 4 fiberglass reinforced plastic (FRP) with signal trim summing board
• In-floor scale:
• Certificate of Conformance: NON-NTEP
• Type: Low profile in-floor installation
• Scale Capacity: 800 lb x 0.2 lb
• Scale Height: 4” nominal deck height - mounted in pit frame
• Available Sizes: 34” x 34” & 34” x 40” - Custom sizes upon request
• Weighbridge: Carbon steel smooth deck with non-slip surface finish
• Deck: Top access FRP junction box, leveling foot adjustment holes
• Finish: Grey epoxy finish
• Load Cell: Plated alloy steel, 350 Ohms, 3.0mV/V 800 lb. capacity: (4) 500 lb. cells
• Leveling foot: B-TEK stainless steel ball encapsulated foot - 2.5” diameter base
• Junction Box: NEMA 4 fiberglass reinforced plastic (FRP) with signal trim summing board
• Options and Accessories
• Second access ramp for above ground scale (exit ramp)
• Stainless steel, scale mounted hand rail
