Product Code: HY-7211-DT
A slightly lighter duty version of our Centurion. This scale can also be customized to match any existing foundation. The Hybrid is available in steel deck.
Details
B-TEK’s Hybrid Truck Scale is designed with enhancements specifically tailored to make service and calibration easy and efficient:
- 14" end wall clearance - prevent dirt, debris and ice from building up and interfering with the scale’s operation
- Hermetically sealed stainless steel (IP68/69K) load cells – Ultimate protection from harsh weather environments

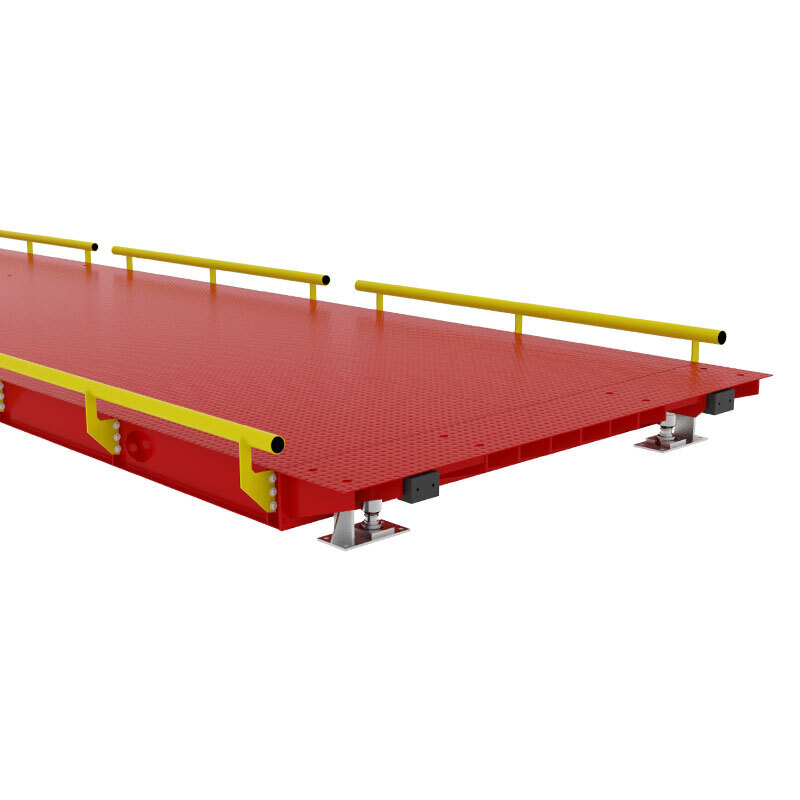

- Large top access covers - each load cell is accessible for easy installation, calibration and service
- Dual calibration storage - download the calibration from the indicator to the load cells or upload from the load cells to the indicator, providing speedy plug-and-play replacement
- Nexia™ remote monitoring - provide full insight into scale performance through detailed health monitoring and event notifications
Specifications
- Weighbridge Deck: 1/4" tread plate decking - welded to Quad Beam weighbridge
- Load Cell: 77K CPD-M digital compression column load cell, RS-485 digital output, stainless hermetically sealed (IP68/69K) construction
- Load Cell Cable: Stainless steel sheathed cable with clear polymer coating and water-tight connectors
- Junction Box: NEMA 4X stainless steel enclosure(s) and 8-cell terminal board with GDT surge protection
- Surge Protection: CPD-M digital load cells along with DD Series indicator protect against lightning.
- Built-in surge protection enhanced by Tripp-Lite Isobar Ultra 4-Outlet AC line transient protection device and two in-line serial port surge protection devices
- Warranty: 5 Year “End-Wall to End-Wall” parts, labor and travel warranty covering weighbridge, load cells, junction box and indicator from failure or damage due to lightning
- Indicator: Supplied with a DD700 desktop digital indicator
- Printer: Supplied with an Epson TM-U295 ticket printer
- Certificate of Conformance: 03-096A3
- Type: Above ground flat top and pit installation
- Scale Capacity: up to 270,000 lb
- Concentrated Load Capacity: 80,000 lb
- “r” Factor Rating: 2.35
- Scale Height: 16”
- Available Widths: 10’ - 14’
- Weighbridge Deck: 1/4” tread plate decking
- Steel Preparation: Commercial blast cleaning SSPC-SP6
- Paint System: Cross linked two-part epoxy primer followed by polyurethane topcoat
- Foundation Anchor Bolts 3/4" X 7" included
- Load Cell Cable: Stainless steel sheathed cable with clear polymer coating, detatchable
- Junction Box: NEMA 4X stainless steel enclosure(s) and 8-cell terminal board with GDT surge protection
- Built-in surge protection enhanced by Tripp-Lite Isobar Ultra 4-Outlet AC line transient protection device and two in-line serial port surge protection devices
- Printer: Supplied with an Epson TM-U295 ticket printer
Input
- Digital
- Analog
Width
- 11 ft
- 12 ft
Deck Type
- Steel
