Details

B-TEK’s Centurion is designed with enhancements specifically tailored to make service and calibration easy and efficient:

  • 14" end wall clearance - prevent dirt, debris and ice from building up and interfering with the scale’s operation
  • Hermetically sealed stainless steel (IP68/69K) load cells – Ultimate protection from harsh weather environments
  • Large top access covers - each load cell is accessible for easy installation, calibration and service
  • Dual calibration storage - download the calibration from the indicator to the load cells or upload from the load cells to the indicator, providing speedy plug-and-play replacement
  • Nexia™ remote monitoring - provide full insight into scale performance through detailed health monitoring and event notifications

Specifications

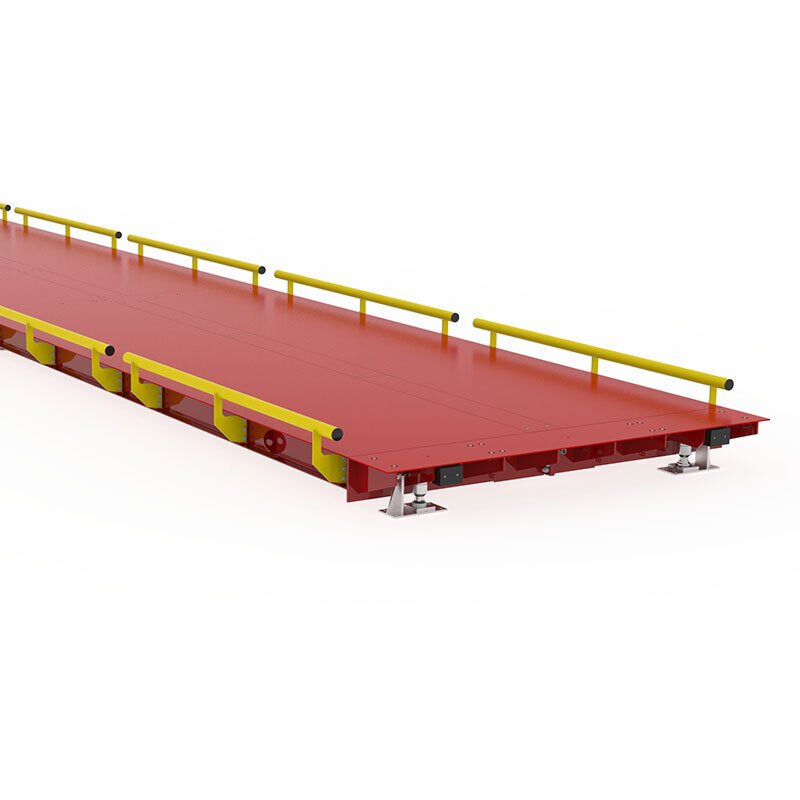

  • Weighbridge Deck: 3/8” tread plate decking - welded to Quad Beam weighbridge

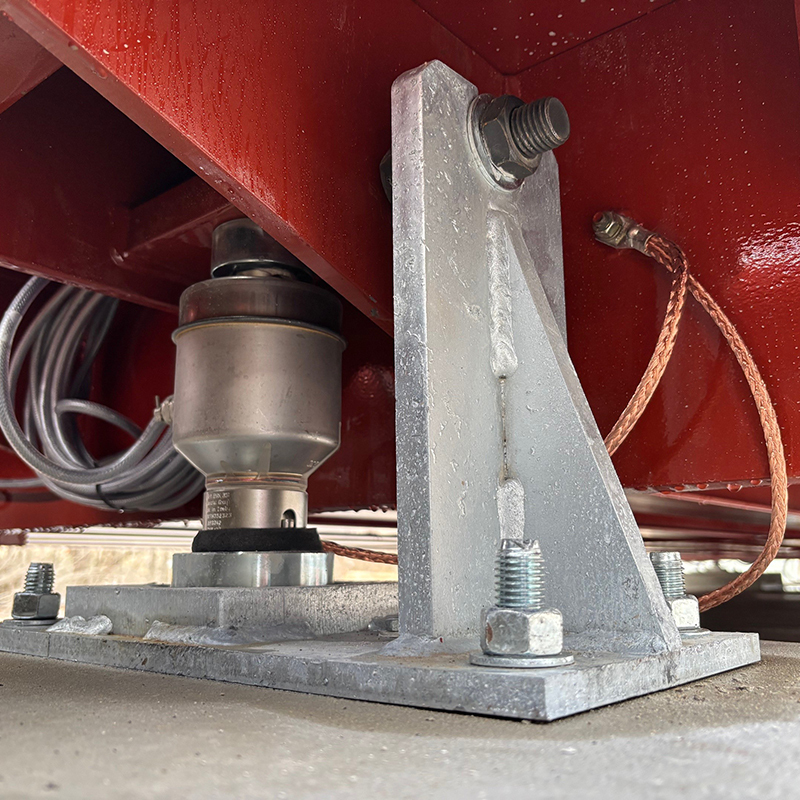

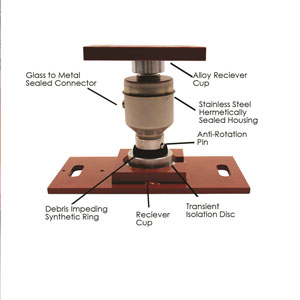

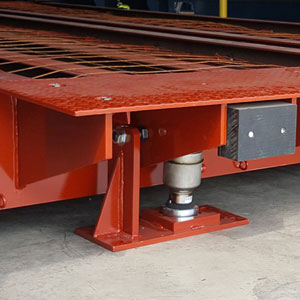

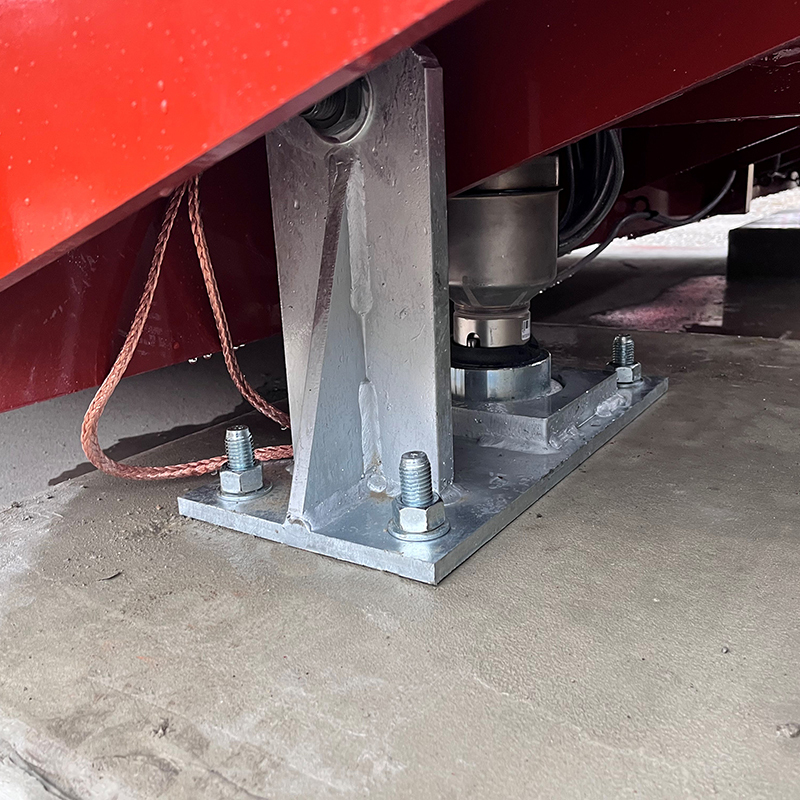

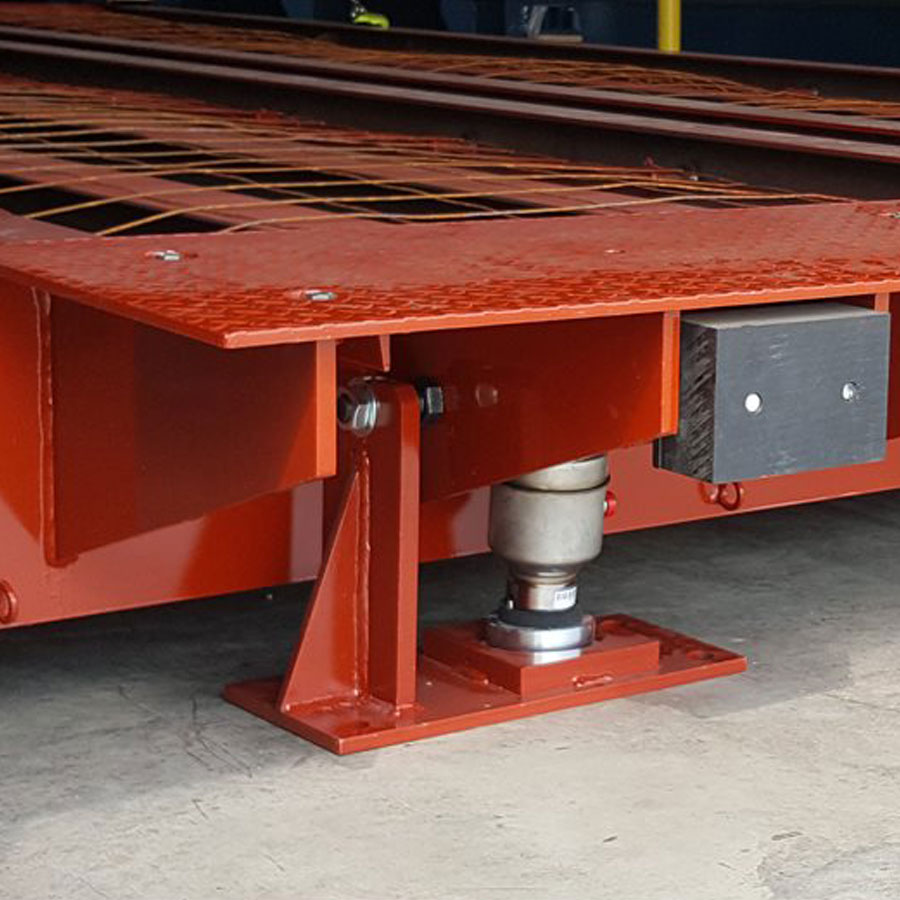

  • Load Cell: 77K CPD-M digital compression column load cell, RS-485 digital output, stainless hermetically sealed (IP68/69K) construction
  • Load Cell Cable: Stainless steel sheathed cable with clear polymer coating and water-tight connectors
  • Junction Box: NEMA 4X stainless steel enclosure(s) and 8-cell terminal board with GDT surge protection
  • Surge Protection: CPD-M digital load cells along with DD Series indicator protect against lightning.
  • Built-in surge protection enhanced by Tripp-Lite Isobar Ultra 4-Outlet AC line transient protection device and two in-line serial port surge protection devices
  • Warranty: 5 or 10 Year “End-Wall to End-Wall” parts, labor and travel warranty covering weighbridge, load cells, junction box and indicator from failure or damage due to lightning
  • Indicator: Supplied with a DD700 desktop digital indicator
  • Printer: Supplied with an Epson TM-U295 ticket printer
  • Certificate of Conformance: 03-096A3

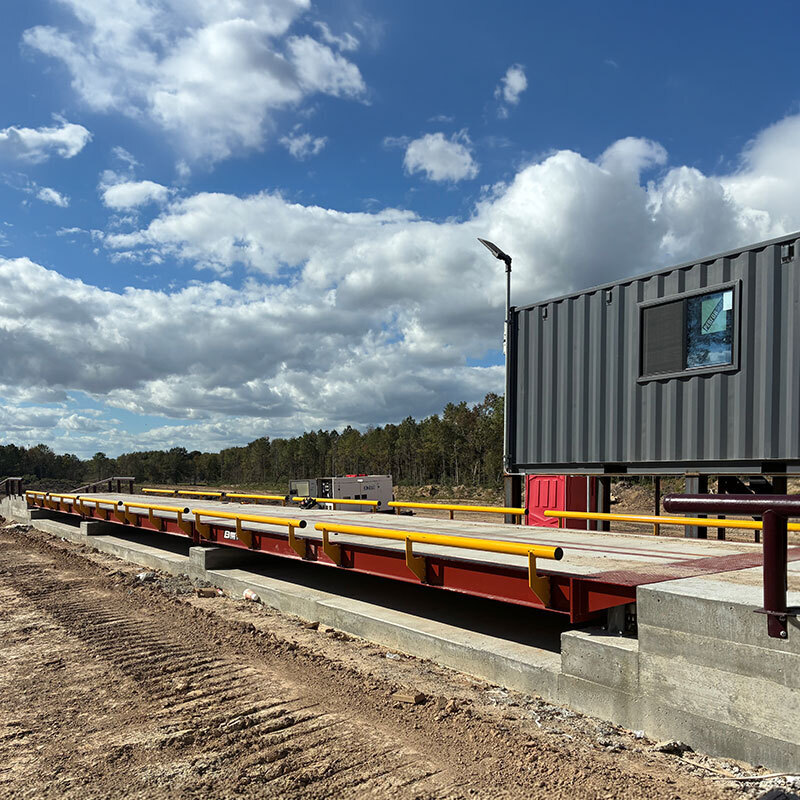

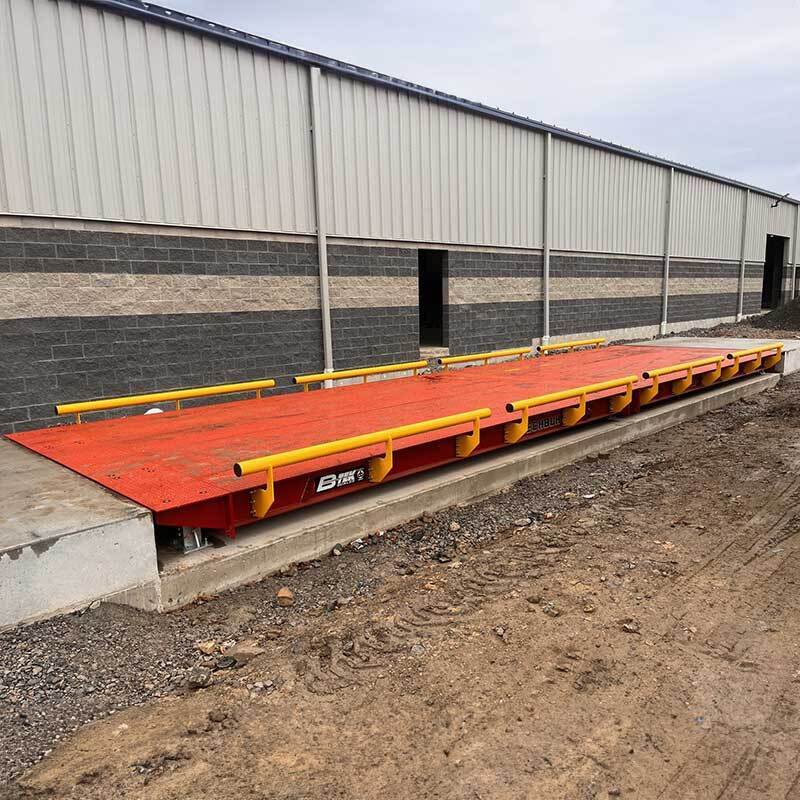

  • Type: Above ground flat top and pit installation
  • Concentrated Load Capacity: 100,000 lb standard - up to 120,000 lb
  • “r” Factor Rating: 2.94
  • Scale Height: 16”
  • Steel Preparation: Commercial blast cleaning SSPC-SP6
  • Paint System: Cross linked two-part epoxy primer followed by polyurethane topcoat
  • Foundation Anchor Bolts 3/4" X 7" included
  • NTEP Certified Legal for Trade

Input

  • Digital
  • Analog

Width

  • 11 ft
  • 12 ft

Deck Type

  • Steel
  • Concrete

Literature

Options & Accessories

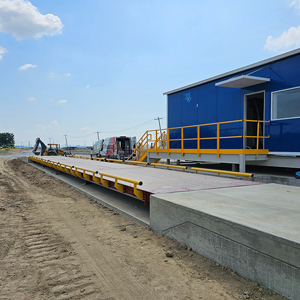

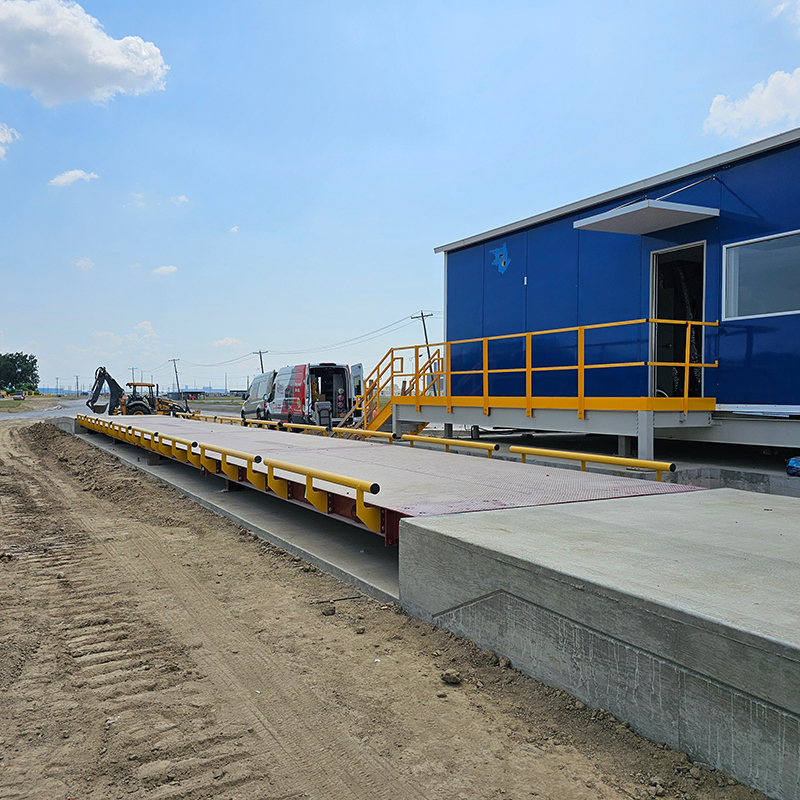

Catwalk Bridge with Handrail and Kick-plate
Product Code: TS-CATWALK-10
Catwalk Length
$3,800.00
DD 700 Weighing Terminal
Product Code: 899-100131
Indicator and Column
Input
$1,260.00
Skynet DD 1010 Weighing Terminal
Product Code: 899-100183
Indicator and Column
Input
$2,910.00
DD 1050 Weighing Terminal
Product Code: 899-100034
Indicator and Column
Input
$3,450.00

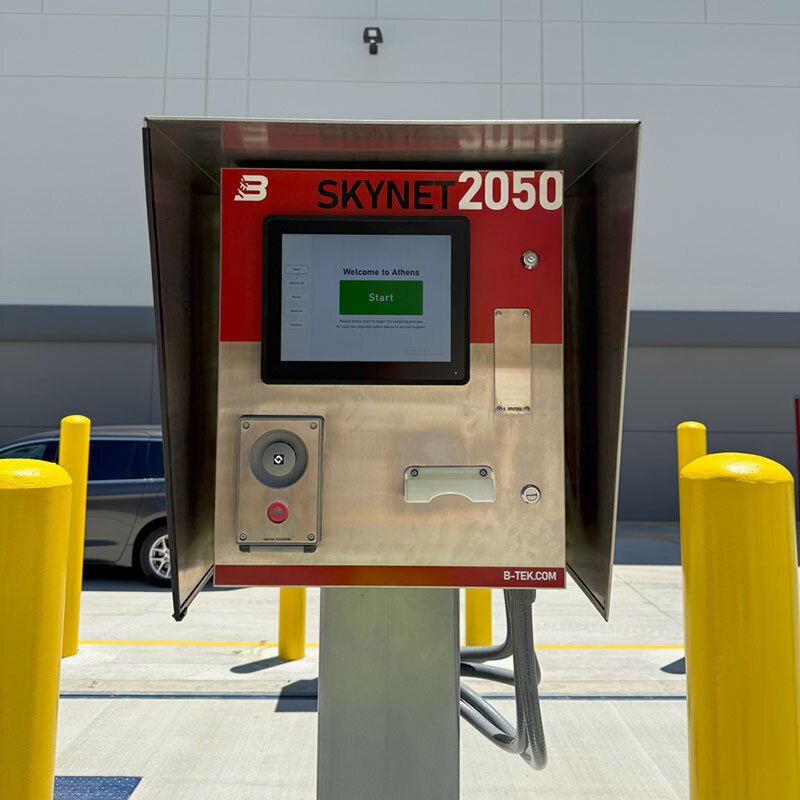

DD 2050 Self Service Weighing Terminal
Product Code: 899-100081
Input
$8,880.00
T405S
Product Code: 825-200005
Indicator and Column
$1,925.00
End Wall Coping
Product Code: TS-EWC-11-CT/HY
Width
$655.00
Epson TM-U295 Printer
Product Code: 831-000026KIT
TM Printers
$615.00
Manhole Opening
Product Code: TS-MANHOLE
Size
$775.00
T-Grip Molding with Barbs
Product Code: 900-100000
Length
$9.35

Frequently Asked Questions

  • Centurion-DT Warranty: 5-Year or optional 10-Year “End-Wall to End-Wall” parts, labor and travel warranty covering the weighbridge, load cells, load cell cables, junction box and DD 700 indicator from failure or damage due to surge voltage or lightning strike.
  • Centurion-AT Warranty: 5-Year weighbridge warranty covering defects in materials and workmanship. 5-Year components warranty covering defects in materials and workmanship.  5-Year surge / lightning warranty covering CPR-M load cells and summing boards

Industries

Aggregates and Mining

Aggregates and Mining

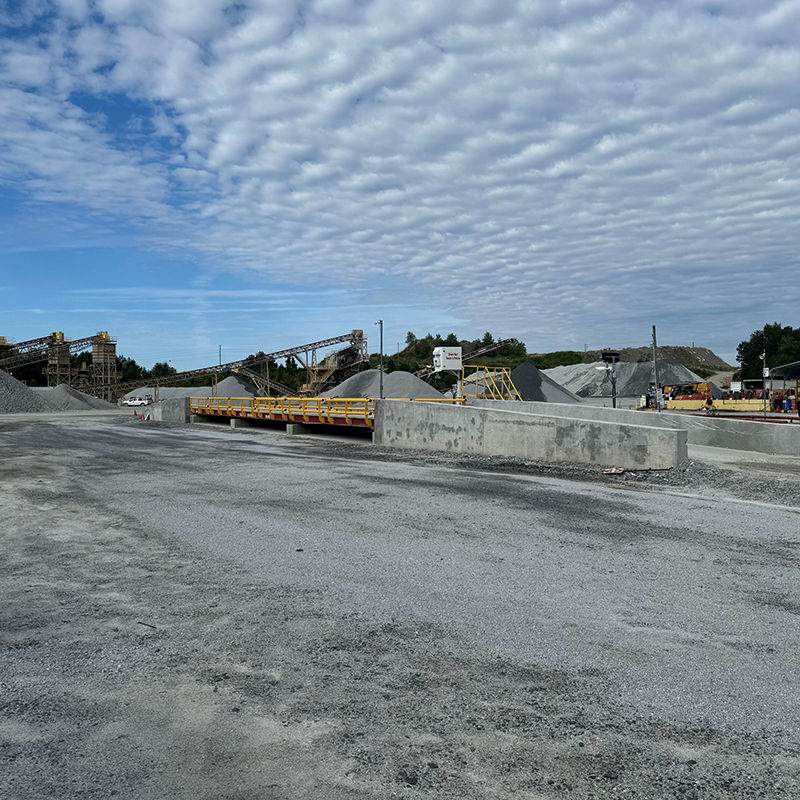

Our scales are designed with the most rugged quarries and job sites in mind.
