Details

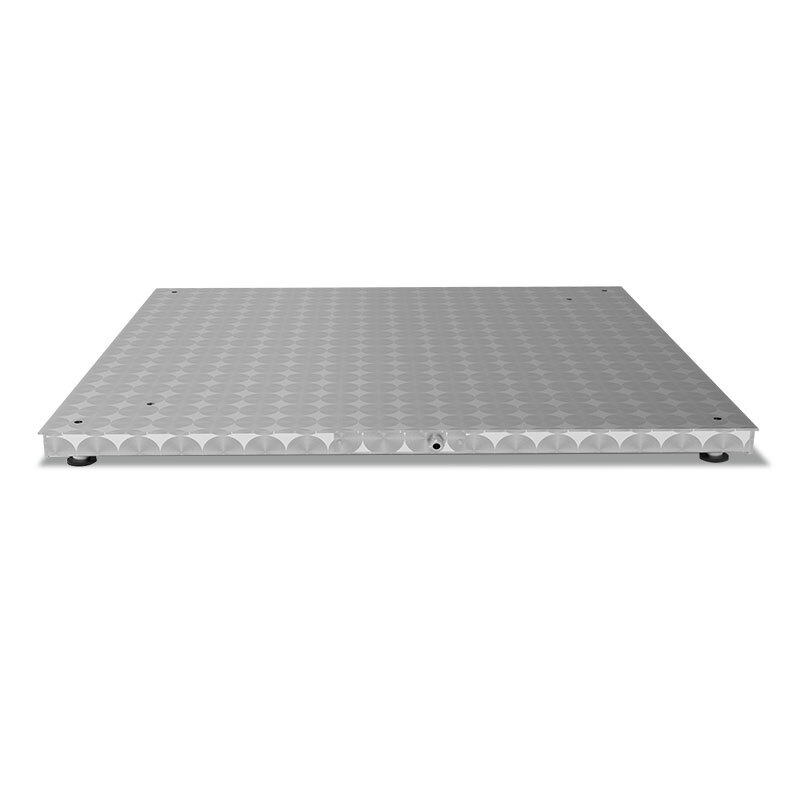

The Clydesdale floor scale is designed for use in a variety of industrial, commercial, and agricultural applications. NTEP (trade approved) platform sizes range from 24" x 24" to 120" x 96". Capacities from 500 lb x .1 lb to 20,000 x 5 lb. B-TEK excels in the ability to design and build the Clydesdale for applications beyond the normal, everyday warehouse scale. Custom sizes and capacities are available upon request.

Specifications

  • COC: 94-092A4
  • Above ground or pit installation
  • 4-3/8" deck height (2,500 - 10,000 lb) adjustable
  • NTEP platform sizes: 24" x 24" to 60" x 84"
  • 1/4" 304 stainless steel smooth or tread plate deck with structural channel sub-structure
  • Top or side access junction box
  • Stainless steel ball encapsulated feet - 2.5" diameter base
  • Top access foot leveling and lifting eyes
  • Stainless steel (IP67) load cells, 350 Ohms, 3.0 mV/V, FM Approved
  • NEMA 4 junction box with signal trim summing board
  • NTEP Approved

Literature

Options & Accessories

Clydesdale Portability Frame
Product Code: 917-1350
View Product
Size
Material
Indicator Column
$1,640.00
Clydesdale Stainless Steel Pit Frame
Product Code: 917-0051
View Product
Size
Envelope Size
$955.00

Frequently Asked Questions

  • 3-Years weighbridge steel structure
  • 2-Years on load cells, junction box, and summing board
