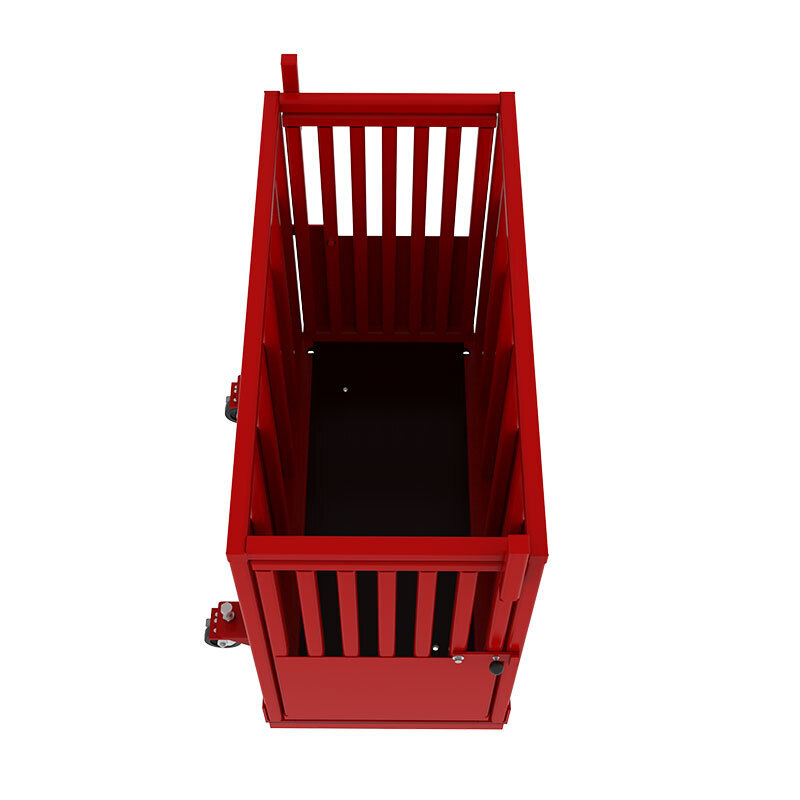

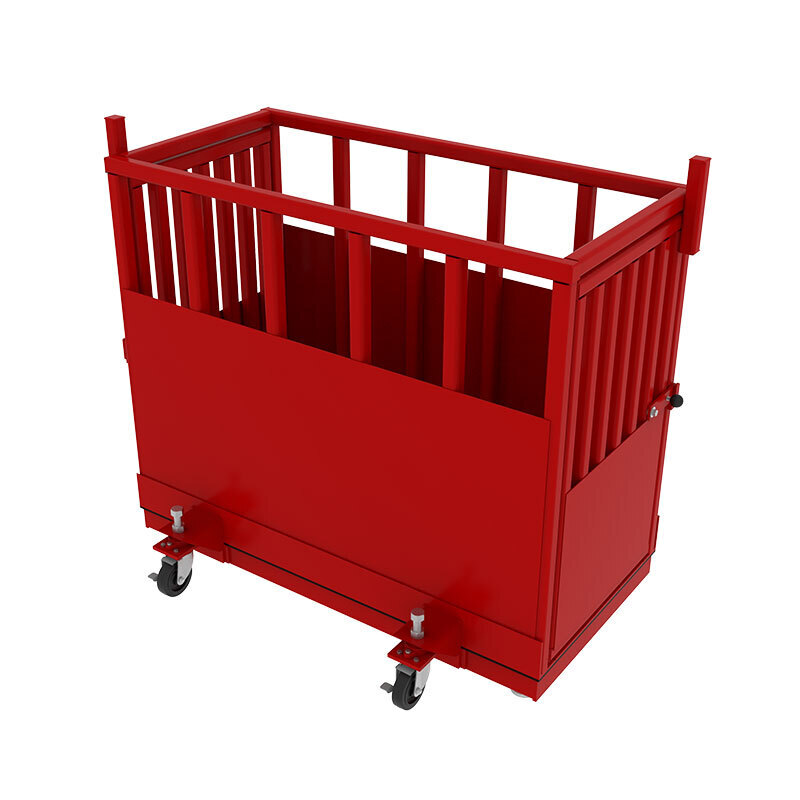

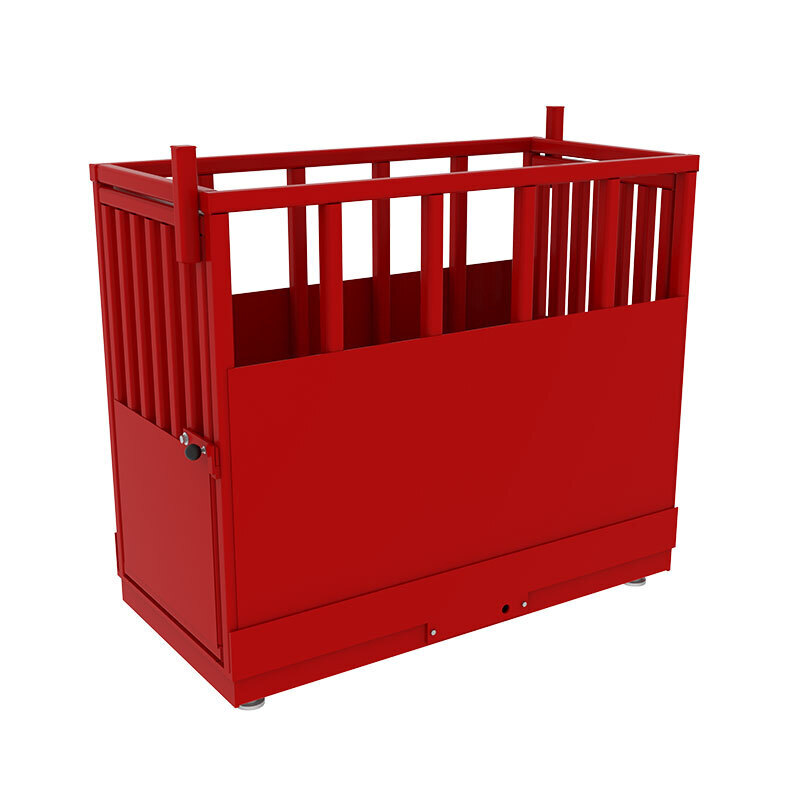

Small Single Animal Livestock Scale
The B-TEK Small Single Animal Livestock Scale is designed for accurate, dependable weighing of individual livestock in veterinary, agricultural and research environments. Built with a low-profile steel weighbridge and rugged racking, it provides safe containment and stable performance during weighing. Bolted rubber barn mats and full-width slide gates support animal comfort and controlled access. Available in 2' x 4' and 2' x 6' sizes with multiple capacity options, this scale delivers reliable results where a multi-animal system is not required.
- Low Profile Steel Weighbridge – Provides stable support with minimal step-up height for safer animal access
- Rubber Barn Mat Flooring – Improves traction and helps reduce animal stress during weighing
- Square Tube Steel Racking With Kick Plate – Enhances containment strength and protects structural components
- Full Width Slide Gates – Allows controlled entry and exit for safer handling
- NEMA 4 Junction Box With Signal Trim – Protects electrical components while maintaining accurate signal adjustment
- Optional Hermetically Sealed Load Cells – Supports performance in washdown and high moisture environments
Details
The Small Single Animal Livestock Scale combines durable steel construction with practical features that support safe animal handling and long-term serviceability. The 1/4" steel deck plate is reinforced with a formed channel sub-structure to minimize deflection under load. A bolted rubber barn mat provides traction and helps reduce stress on animals during weighing.
Square-tube steel racking with an integrated kick plate provides containment strength while protecting the scale structure from impact. Full-width slide gates at each end allow smooth entry and exit while maintaining control during weighing.
The scale is available in 2' x 4' and 2' x 6' configurations. Depending on the model selected, capacities are supported by plated-alloy steel load cells rated at 350 Ω and 3.0 mV/V. Optional hermetically sealed IP68 load cells are available for washdown or high-moisture environments. A NEMA 4 junction box with a signal trim summing board ensures secure and accurate signal management.
Ideal applications include veterinary practices, agricultural operations, research facilities, and county fair environments that require dependable single-animal weighing.
Specifications
- NTEP COC: 94-092A5
- Type: Above ground
- Scale Height: 4-3/8” nominal
- Available Sizes - 2’ x 4’ and 2’ x 6’
- Weighbridge - 1/4” steel deck plate with formed channel sub-structure, rubber barn mat bolted to deck
- Racking - Square tube steel with kick plate
- Gates - Full width slide gate at each end of scale
- Finish - Alkyd Enamel paint system
- Electrical Junction Box: NEMA 4 box with signal trim summing board
Loading Resources ...
Options & Accessories
Loading Options & Accessories ...
Frequently Asked Questions
• 3-Years on weighbridge steel structure
• 2-Years on load cells, junction box, and summing board
