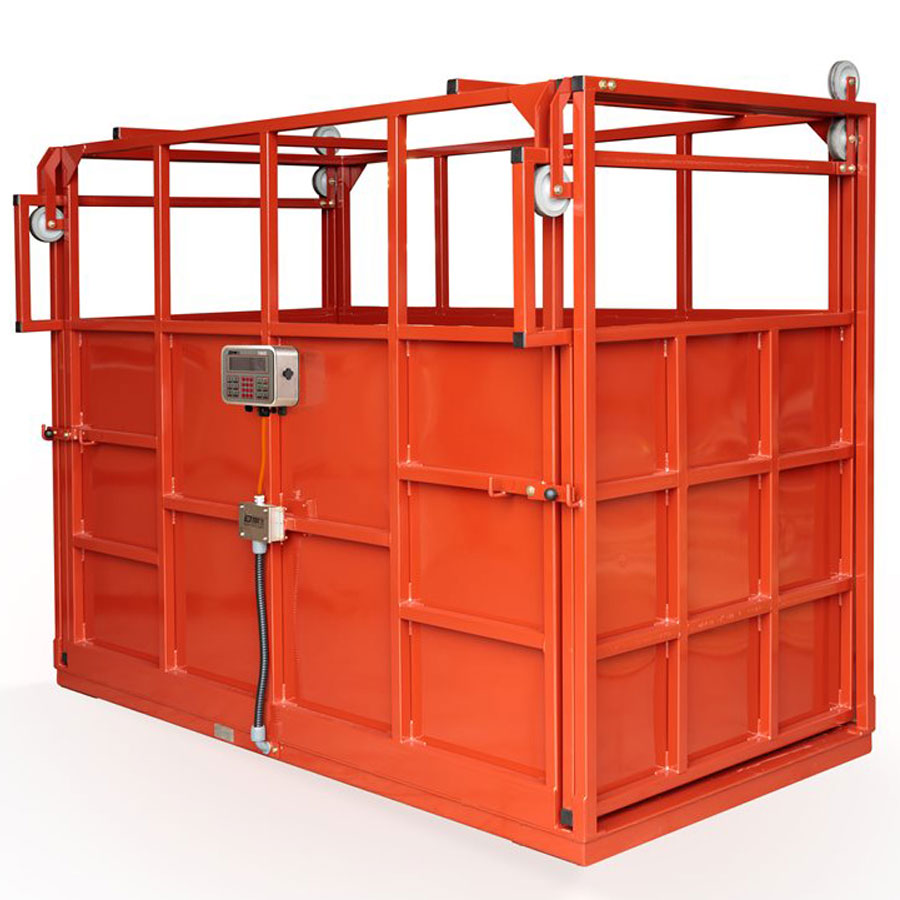

Large Single Animal Livestock Scale

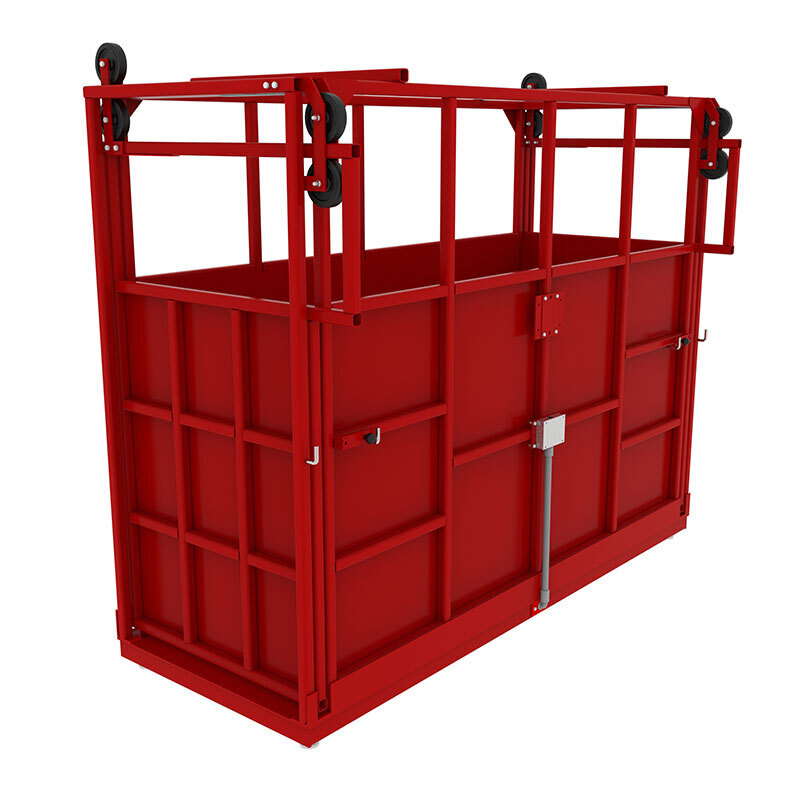

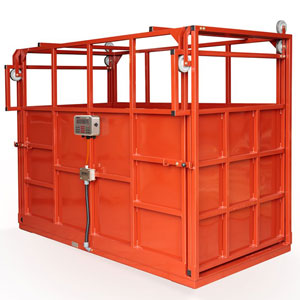

The B-TEK Large Single Animal Livestock Scale is engineered for accurate, dependable weighing of individual livestock up to 5,000 lb. Built with a reinforced steel weighbridge and full-length containment racking, it provides stable support and controlled access during weighing. A bolted rubber barn mat enhances traction while full-width slide gates allow safe entry and exit. Designed for veterinary clinics, agricultural operations and research environments, this above-ground scale delivers reliable single animal performance without requiring a multi-animal system.
- Reinforced Steel Weighbridge – Minimizes deflection under concentrated loads for stable performance
- 100 Percent End Load Capacity – Maintains accuracy at full rated 5,000 lb capacity
- Rubber Barn Mat Flooring – Improves traction and supports safer animal handling
- Square Tube Steel Racking With Kick Plate – Adds structural strength and containment protection

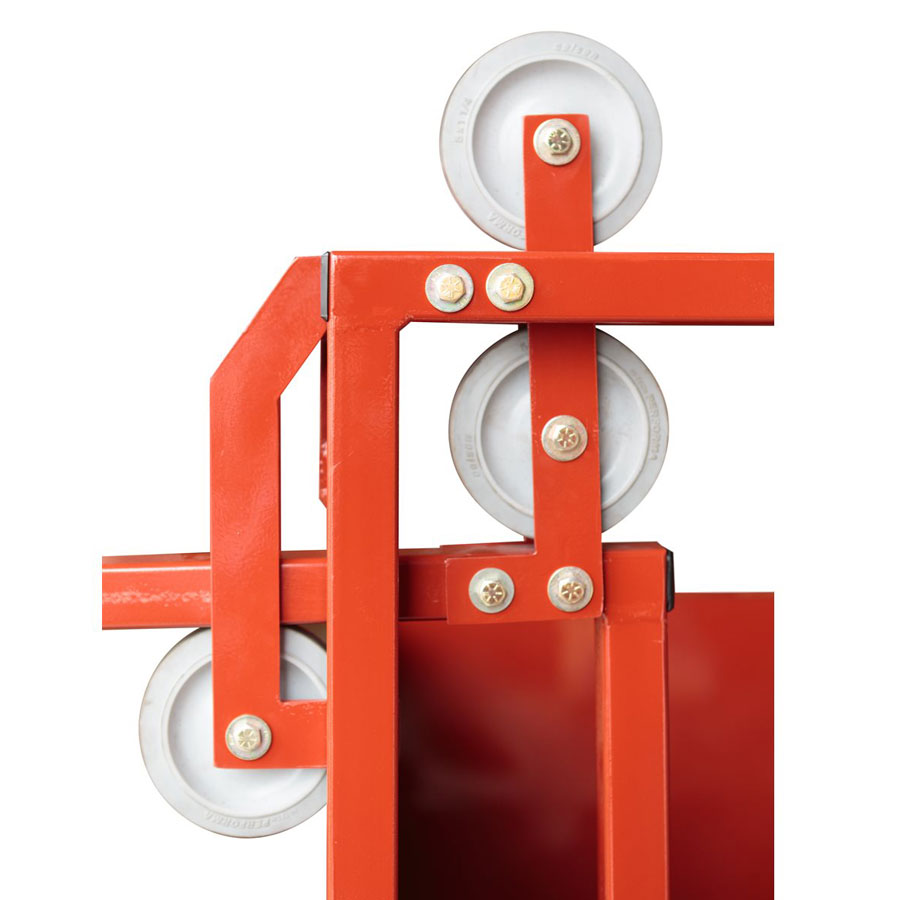

- Full Width Slide Gates – Allows controlled entry and exit during weighing
- NEMA 4 Junction Box With Signal Trim – Protects electronics while supporting precise signal adjustment
- Optional Hermetically Sealed Load Cells – Supports washdown and high moisture environments
Details
The Large Single Animal Livestock Scale is constructed for strength, stability and long-term durability in demanding livestock environments. The 1/4" steel deck plate is supported by a formed channel sub-structure to reduce deflection under load. A bolted rubber barn mat improves footing while helping maintain animal comfort during weighing.

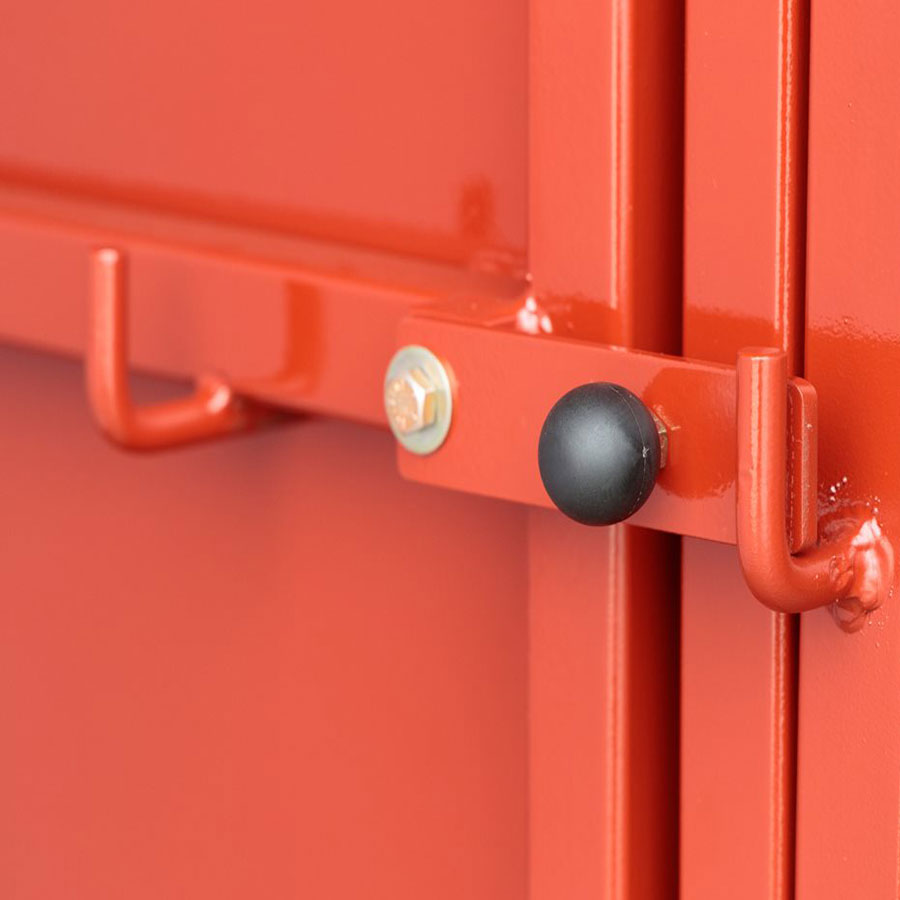

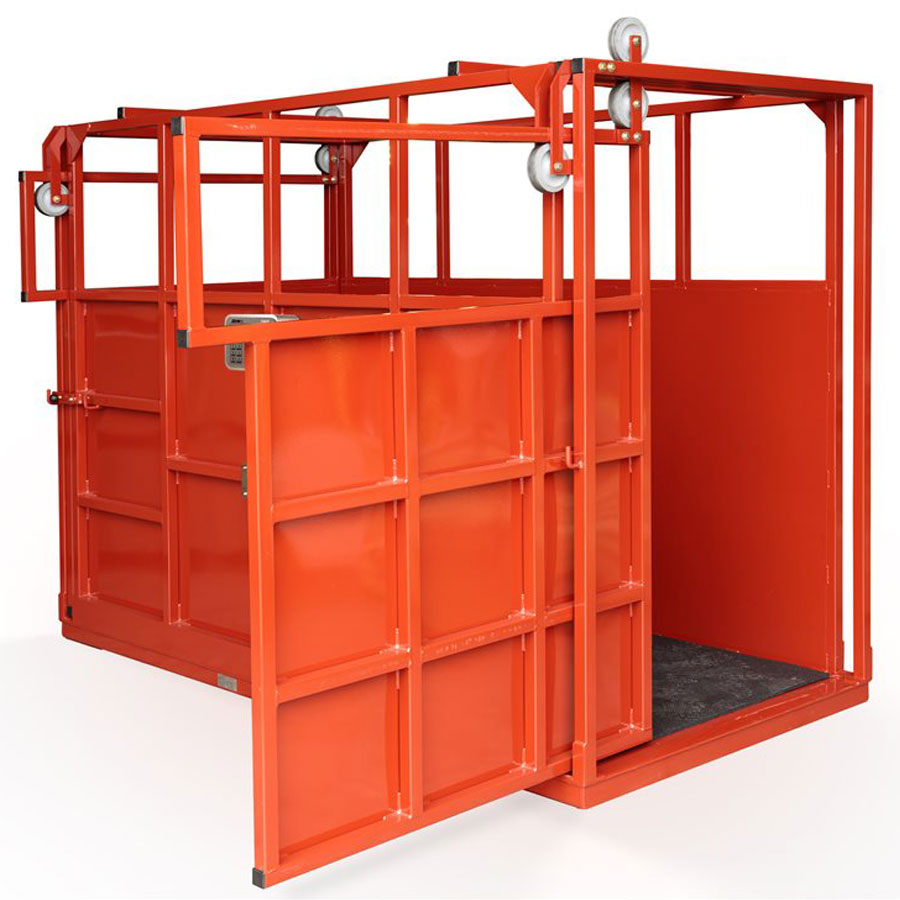

Square tube steel racking with an integrated kick plate reinforces the structure and helps contain larger animals safely. Full-width slide gates at each end of the scale provide controlled access and smooth animal flow.

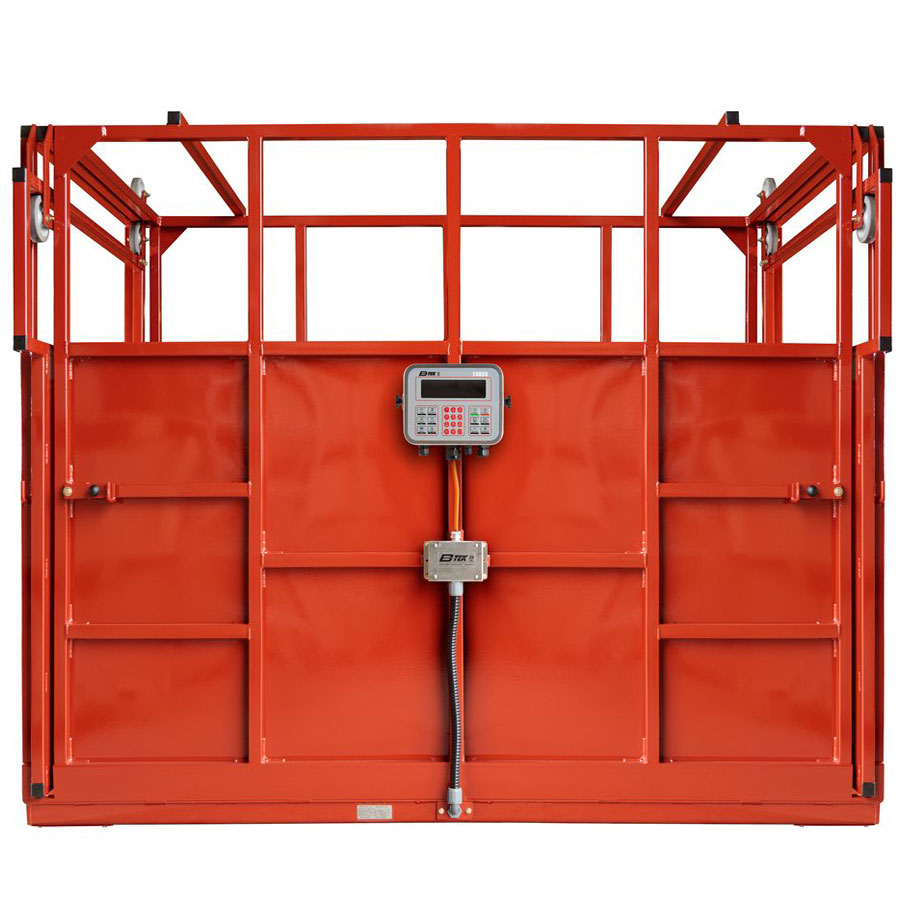

With an end load capacity of 100 percent at 5,000 lb, the scale maintains dependable performance even under concentrated loading conditions. The NEMA 4 junction box with signal trim summing board protects electrical components while allowing accurate signal adjustment.
Available in 8' x 3' and 8' x 4' sizes, the scale uses plated alloy steel load cells rated at 350 Ohms and 3.0 mV/V. Optional hermetically sealed IP68 load cells are available for washdown or high-moisture environments.
Ideal applications include veterinary practices, agriculture organizations, research facilities, county fairs, and operations requiring reliable single animal weighing at higher capacities.
Specifications
- NTEP COC: 94-092A5
- Type: Above ground
- End Load Capacity: 100% at 5K
- Scale Height: 4-3/8” nominal
- Available Sizes - 8' x 3' and 8' x 4'
- Weighbridge - 1/4” steel deck plate with formed channel sub-structure, rubber barn mat bolted to deck
- Racking - Square tube steel with kick plate
- Gates - Full width slide gate at each end of scale
- Finish - Alkyd Enamel paint system
- Junction Box - NEMA 4 box with signal trim summing board
- Load Cell: Plated alloy steel, 350 Ohms, 3.0 mV/V
- Load Cell: 5K capacity: (4) 4,000 lb cells
- Load Cell: Optional hermetically sealed (IP68) cells are available
Industry Solution
- Agriculture and Farming
Loading Resources ...
Options & Accessories
Loading Options & Accessories ...
Frequently Asked Questions
• 3-Years on weighbridge steel structure
• 2-Years on load cells, junction box, and summing board
