Details

The DD 700 series terminal has been designed from the ground up to be simple and user-friendly.  This weighing terminal comes preloaded with both single weighing and truck in / truck out programs.  In addition to the easy-to-use software, each DD 700 has a USB port that allows the user to input information using a QWERTY keyboard. The DD 700 offers the same functionality as the other DD Series terminals but in a smaller package. The terminal is intended for industrial applications.

INDICATOR MODEL: DD700
IP RATING: IP20
ENCLOSURE: ABS Plastic

INDICATOR MODEL: DD700i
IP RATING: IP69K
ENCLOSURE: Stainless Steel

INDICATOR MODEL: DD700ic
IP RATING: IP65 Front Panel / IP20 Enclosure
ENCLOSURE: Stainless Steel

INDICATOR MODEL: DD700PM
IP RATING: IP65 Front Panel / IP20 Enclosure
ENCLOSURE: Stainless Steel

Specifications

  • NTEP COC: 15-113
  • CANADA: AM-6012
  • Desktop mount molded ABS plastic enclosure / Swivel bracket and wall mount bracket with stainless steel enclosure (IP69K) rating
  • High visibility backlit LCD full graphic display
  • Membrane keypad with 18-keys
  • Customizable ticket formats with time and date
  • Extensive built-in diagnostic screens
  • Export transaction data to USB flash memory
  • Store up to 15,000 trucks / products / customers in memory
  • Up to (12) 350 ohm Analog Cells
  • Up to (12) Digital Cells
  • (2) “Plug & Play” option card slots

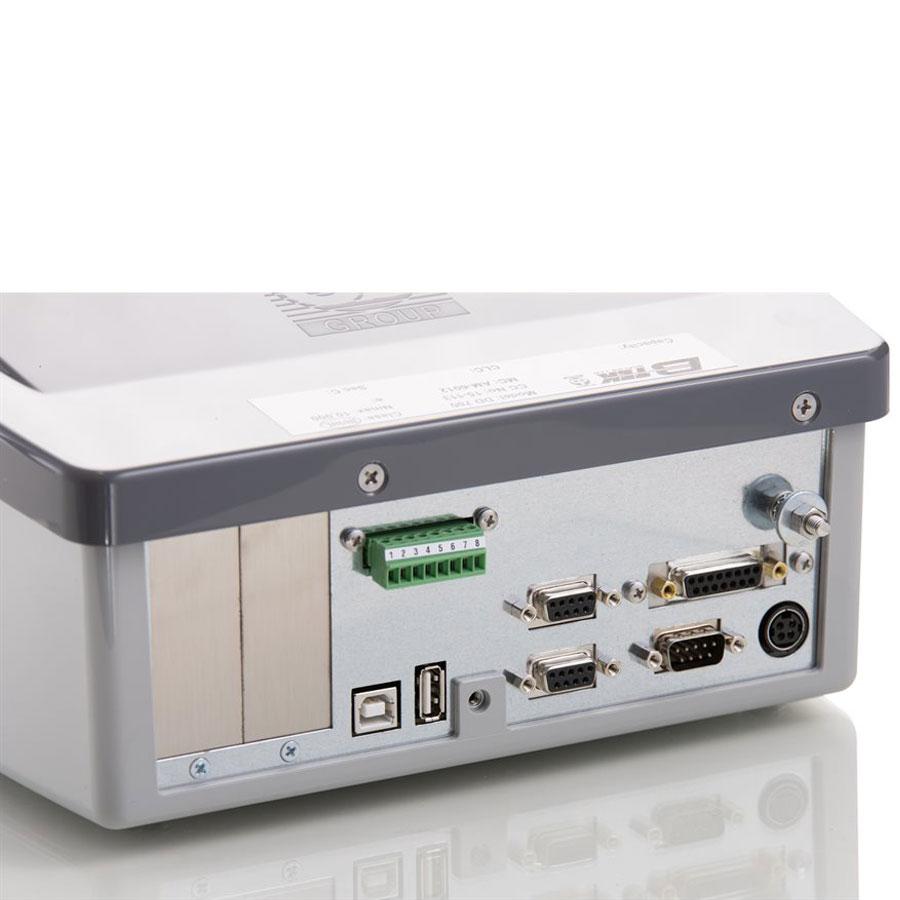

  • (1) USB host (Type A) port for updates, backup, archiving and keyboard
  • (1) USB serial (Type B) device port
  • (2) Isolated dry contact inputs
  • (2) Relay outputs (24v max)
  • (1) RS-232 serial port
  • (1) RS-232 / RS-422 / RS-485 configurable port
  • Six built-in language choices
  • Local / Remote Indicator via RS232, RS422, or TCP/IP Ethernet
  • Applications: Single Weighing, Double Weighing, Counting, Totalization, Multi - Operator, Batching, Check Weighing

IP Rating

  • IP20
  • IP69K

Literature

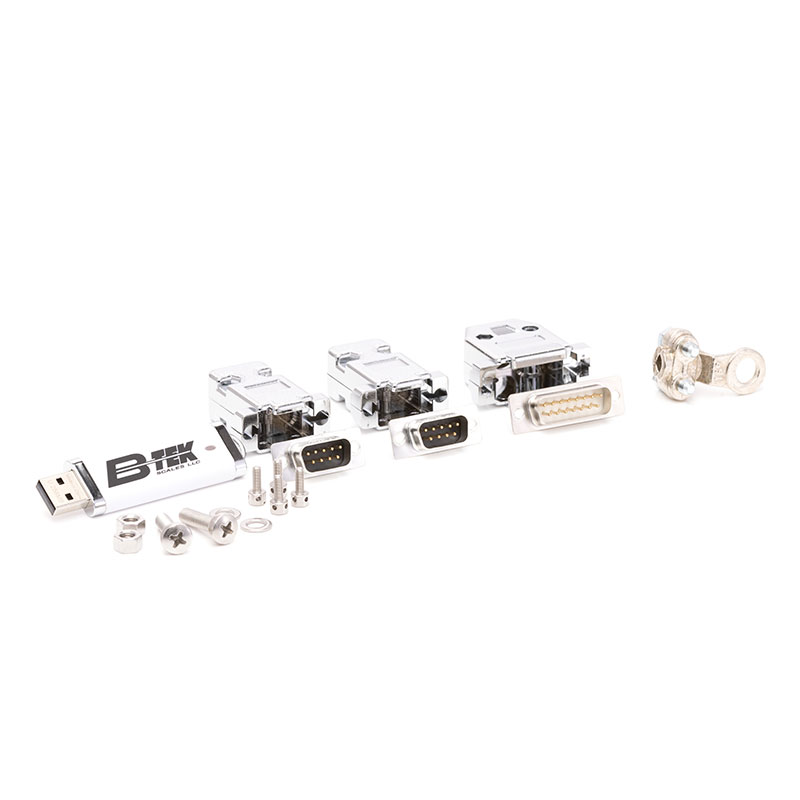

Options & Accessories
