Details

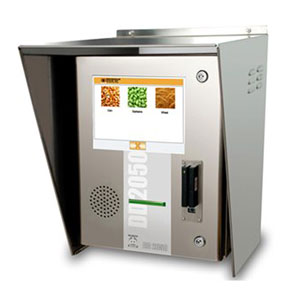

The DD 2050 combines computer programming power with flexibility and delivers it all in a compact, secure, unattended box with 12.1" touch screen display. The DD 2050 comes pre-loaded with standard in-out software and is NTEP approved for your legal for trade applications. Need more functionality? Simply program it to your end-user's specifications using standard Microsoft C# or VB .NET languages.

Specifications

  • NTEP COC: 13-055
  • Canadian approval: AM-5981
  • 500 MHz processor
  • 128 MB ram
  • 128 MB flash memory
  • 12.1" color TFT display with touch screen
  • 10/100 BaseT Ethernet onboard
  • 2 x I/O 24V AC/DC
  • 1 memory card expansion slot (SD, Compact Flash)
  • 3 expansion slots (for weighing machines, serial port, I/O, field buses, etc.)
  • Power supply: 110-230 VAC
  • NTEP Approval for up to 10,000 divisions
  • Multidivision and Multirange versions
  • Enclosure:
  • 304 stainless steel
  • Keyed enclosure access door
  • Protective secondary “hood” cover
  • Built-in heat / cool thermal control devices
  • Anti-vandal locking cover available
  • Display:
  • 12.1” color display
  • Touch screen with protective cover
  • High contrast display - legible in direct sunlight
  • Designed for temperature extremes of outdoor use
  • User programmable displays, icons and graphics and layout
  • Printer:
  • Thermal paper receipt printer
  • Large paper roll capacity—3.15” receipt width
  • Jam-proof automatic cutter and tensioning system
  • Illuminated receipt outlet slot
  • Internal uncollected receipt storage area
  • Optional Reader Devices:
  • Multiple user identification devices available
  • Optical bar code readers (swipe card or paper printed)
  • Proximity (RFID) reader or reader / writer (card or key fob)
  • Magnetic strip reader (swipe card)
  • Reader device securely mounted into front panel of enclosure
  • Optional Features:
  • One additional scale input
  • Two additional scale inputs
  • Three additional scale inputs
  • WI-FI interface card
  • Cellular network interface UMTS / GPRS / EDGE / GSM / MSPDA
  • Radio modem 2.4 GHz
  • (4) input / (6) output card
  • (8) input / (12) output card
  • Dual serial port card
  • Pulse input card
  • Analog input card
  • Profibus interface card
  • Sound card with microphone input
  • IP Rating: 67

IP Rating

  • IP67

Shipping Dimensions

Product Code Length Width Height Weight
899-100081
0"
0"
0"
90 lbs
899-100082
0"
0"
0"
84 lbs


Literature






Options & Accessories







































Frequently Asked Questions


The DD2050 kiosk uses 20-30 watts of power with the heater or fan running.
Industries
  Aggregates and Mining
Aggregates and Mining
 Our scales are designed with the most rugged quarries and job sites in mind.
Replacement Parts
