DILINK Digital Truck Scale Conversion Kit
https://www.b-tek.com/products/vehicle-scales/truck-scales/truck-scale-conversion-kits/dilink-digital-truck-scale-conversion-kit
Share this product beyond Facebook and Twitter!
Product Code:
899-260000
The DILINK Digital Truck Scale Conversion Kit allows you to upgrade an analog truck scale system with digital technology without replacing the load cells. Designed to streamline scale performance, the kit enhances long-term measurement stability, simplifies calibration and significantly reduces service time through automated angular calibration.
- Digital Conversion of Analog Load Cells – Enables modern diagnostics without replacing existing analog load cells
- Automated Angular Calibration – Improves scale accuracy and reduces service time
- Stainless Steel Sealed Housing – Provides durable protection against harsh environmental conditions
- Integrated Lightning and Surge Protection – Guards components from transient voltage and electrical interference
- RS-485 Communication Output – Eliminates signal interference for improved reliability
- Multiple Box Connectivity – Supports expanded systems beyond 8 cells with additional DILINK boxes
- Individual Cell Readings – Allows technicians to quickly identify load cell issues
- Simplified Calibration at the Indicator – Removes the need for junction box adjustments
Details

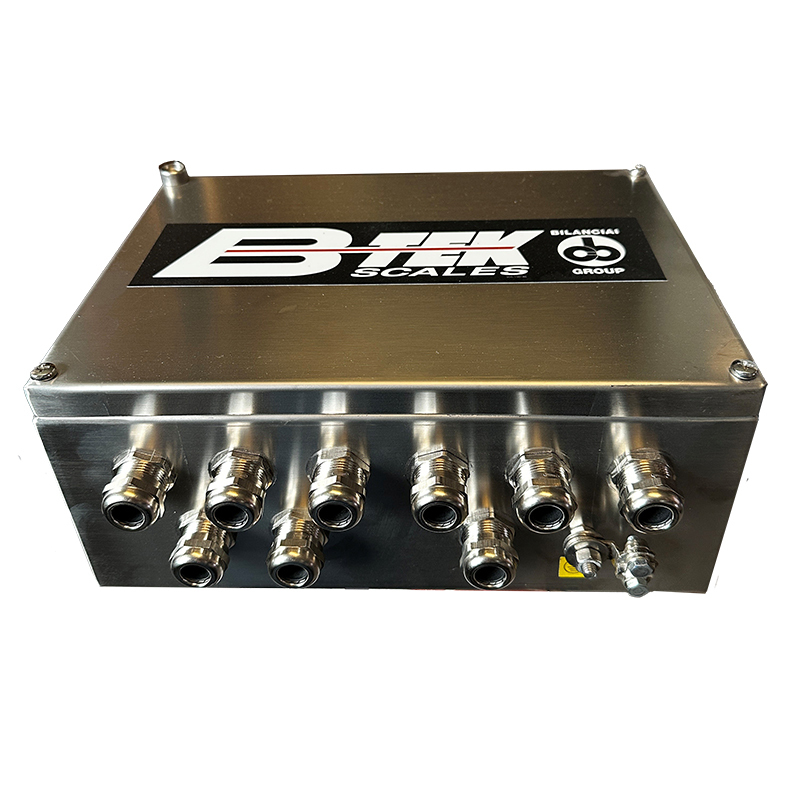

The DILINK Digital Truck Scale Conversion Kit allows you to upgrade an analog truck scale system with digital technology without replacing the load cells. Designed to streamline scale performance, the kit enhances long-term measurement stability, simplifies calibration and significantly reduces service time through automated angular calibration. The stainless steel, environmentally sealed DILINK housing delivers rugged protection, while integrated lightning and surge protection safeguards your scale from electrical damage. With RS-485 communication and B-TEK digital indicator compatibility, the system provides a reliable, interference-free signal path. Replacing a traditional summing card or junction box, the DILINK kit adds visibility and diagnostics for each load cell in your system.

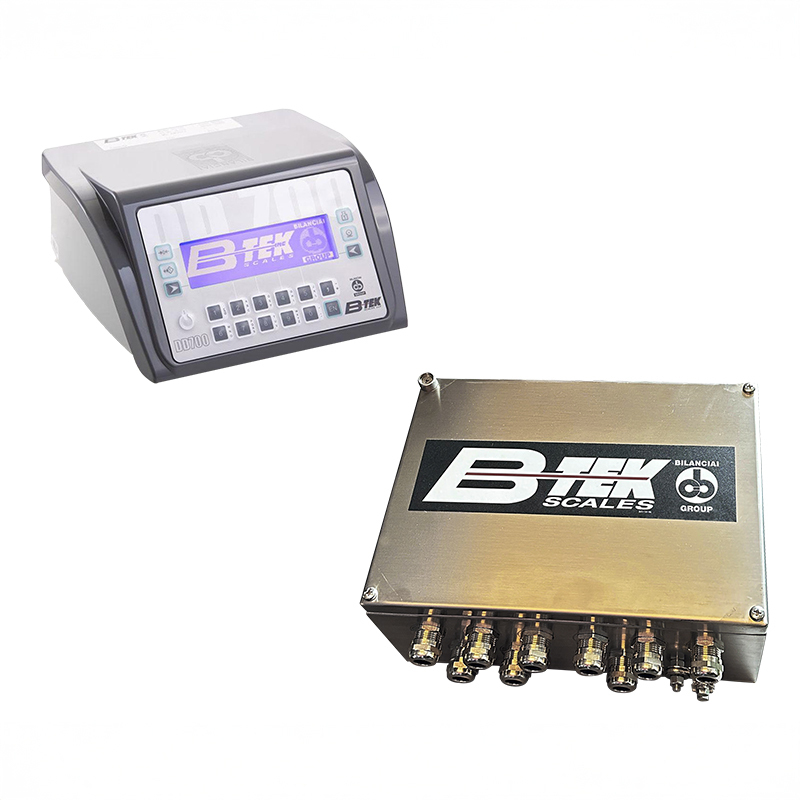

Kit Includes:

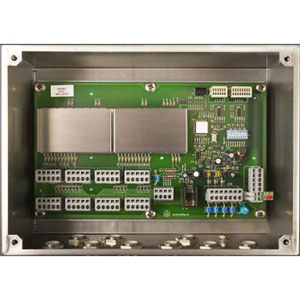

- DILINK Analog to Digital Converter
- DD 700 ABS Digital Desktop Indicator
- 65 ft Homerun Cable with Integral DB15 Connector
- RS-232 Port Surge Protection Device
- RS-422 Port Surge Protection Device
- Tripp Lite Isobar Ultra 4-Outlet Line Transient Protection Device
