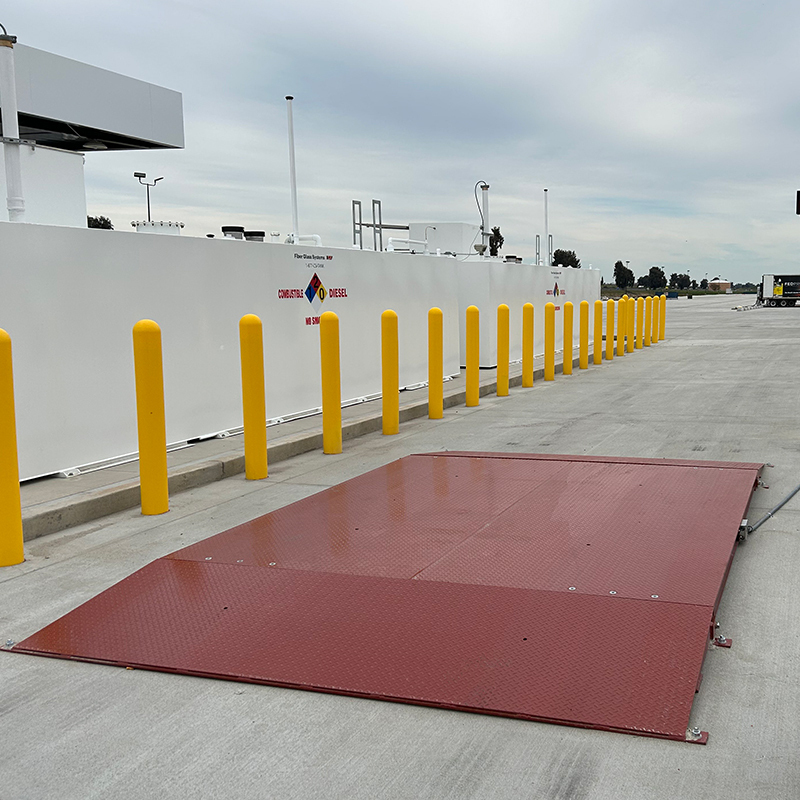

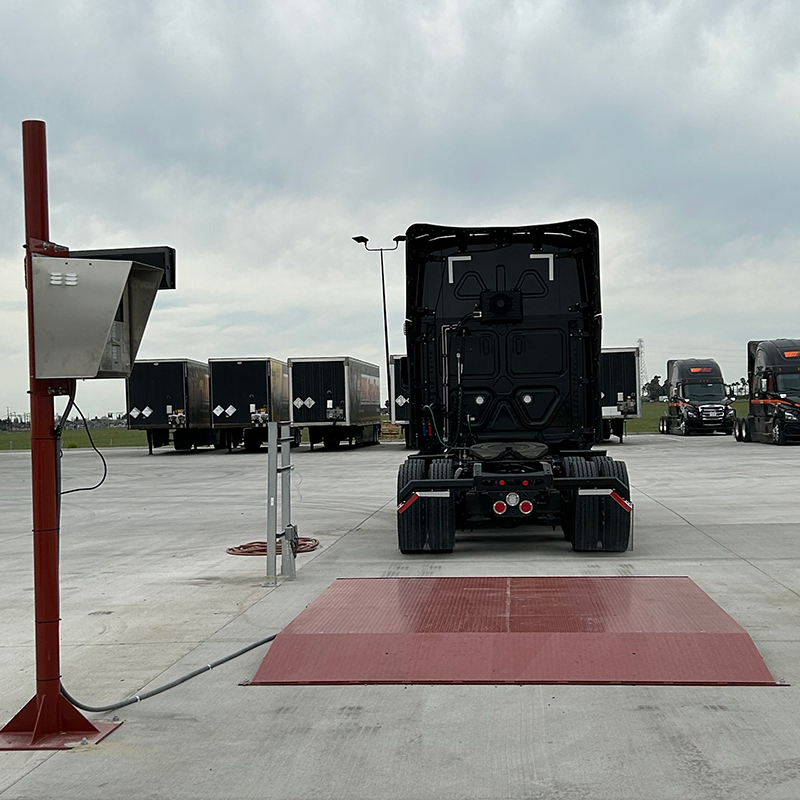

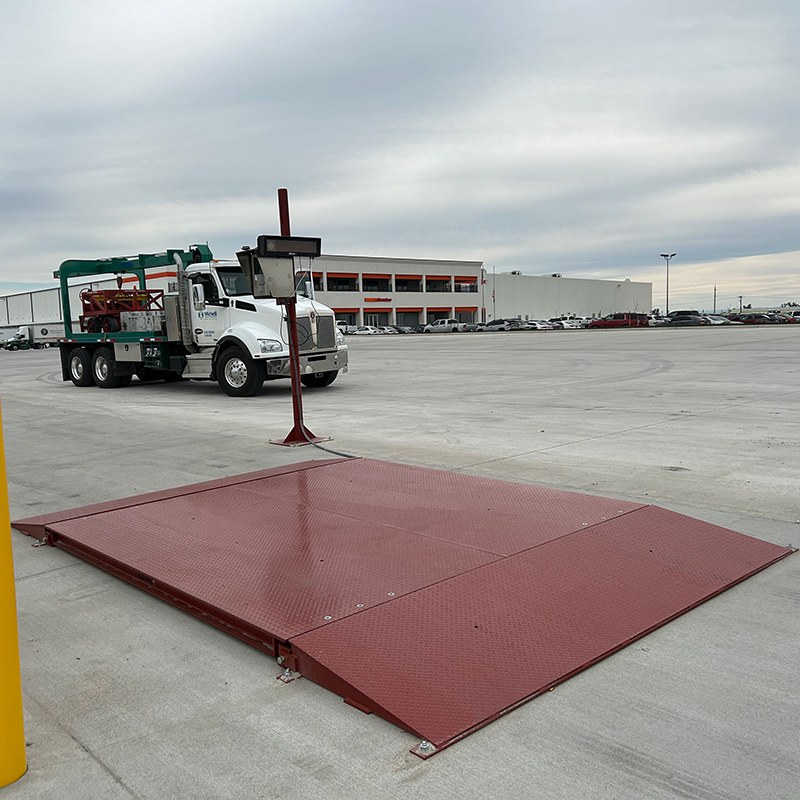

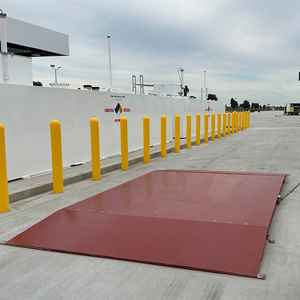

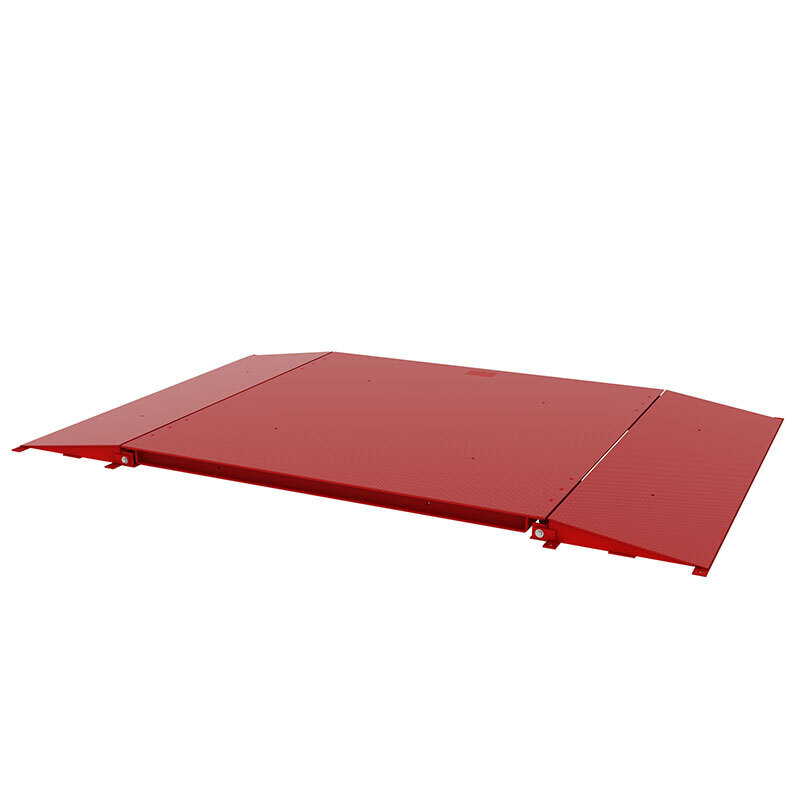

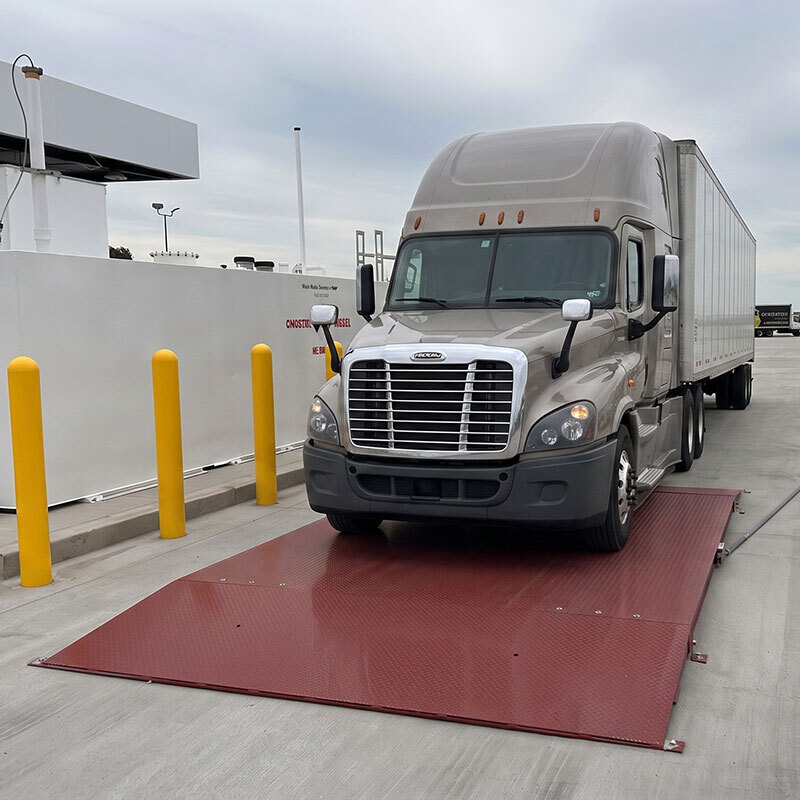

AX300 Axle Scale with Ramps
Click to rotate this product
https://www.b-tek.com/products/vehicle-scales/axle-scales/ax300-axle-scale-911-fc-ax300
Share this product beyond Facebook and Twitter!
Product Code:
911-5702-KIT
The B-TEK AX300 Axle Scale provides accurate axle weight readings in a compact, heavy-duty design. Built with a reinforced weighbridge and ½-inch tread plate decking, the AX300 minimizes overweight fines and helps maintain legal load limits while maximizing each truck’s payload capacity. It includes (2) ramps for an easy transition on and off the scale.
- No Foundation Required – Installs directly on concrete, asphalt or well-compacted gravel
- Removable Ramps - Easily drive on and off the scale platforms
- Superior Platform Construction – Built with I-beams for maximum strength and stability
- ½-Inch Tread Plate Decking – Thickest deck plating in the industry for ultimate durability
- Rigidly Mounted Load Cells – Eliminates moving suspension parts that can wear or bend
- Stainless Steel Junction Box – Protects wire terminations from moisture and debris
- Durable Epoxy Paint System – Shields the structure against corrosion and wear
- Custom Sizes Available – Offered in multiple lengths to meet specific site needs
Details
The AX300 Axle Scale offers a reliable and economical alternative to a full-size truck scale. Designed for use on concrete, asphalt or well-compacted gravel, the portable AX300 installs quickly with no foundation construction required. Each platform is equipped with four rigidly mounted load cells for precise axle weighing without moving suspension parts that can wear, bend or break.
Constructed with structural I-beams and the thickest decking in its class, the AX300 delivers superior strength and long-term durability in demanding field environments. Optional indicators allow users to accumulate axle weights for total vehicle weight verification, preventing underloading and improving operational efficiency. The AX300 is available in standard 7- and 10-foot lengths as well as custom sizes to meet unique site requirements.
Specifications
- COC: Non-NTEP
- AX300 scale is an economical alternative to a full-size truck scale
- Platform can be moved with fork lift
- Scale height of only 6” - very low profile for ease during drive-on
- No concrete or foundation construction required for installation
- Installs on top of concrete, asphalt, well-compacted gravel, or flush with grade
- Platform constructed with I-beams for superior strength
- Platform has 1/2” tread plate decking for ultimate durability
- Platform steel is shot blast cleaned (SSPC-SP6) prior to painting
- Platform and ramps have locations for attachment of lifting eyes
- Stainless steel junction box on the platform to protect wire terminations
- Interconnect cables available
- Two-component polyamide epoxy paint system
- Wheel load accurate to within 0.25% of full scale
- 60,000 lb gross scale system capacity
- Load Cells: (4) 25,000 lb double-ended shear beams, nickel-plated alloy steel, environmentally sealed (IP67) and 150% full scale safe overload
Loading...
Loading Resources ...
Options & Accessories
Loading...
Loading Options & Accessories ...
Frequently Asked Questions
- 1-Year weighbridge warranty covering defects in materials and workmanship
- 1-Year load cell warranty covering defects in materials and workmanship
