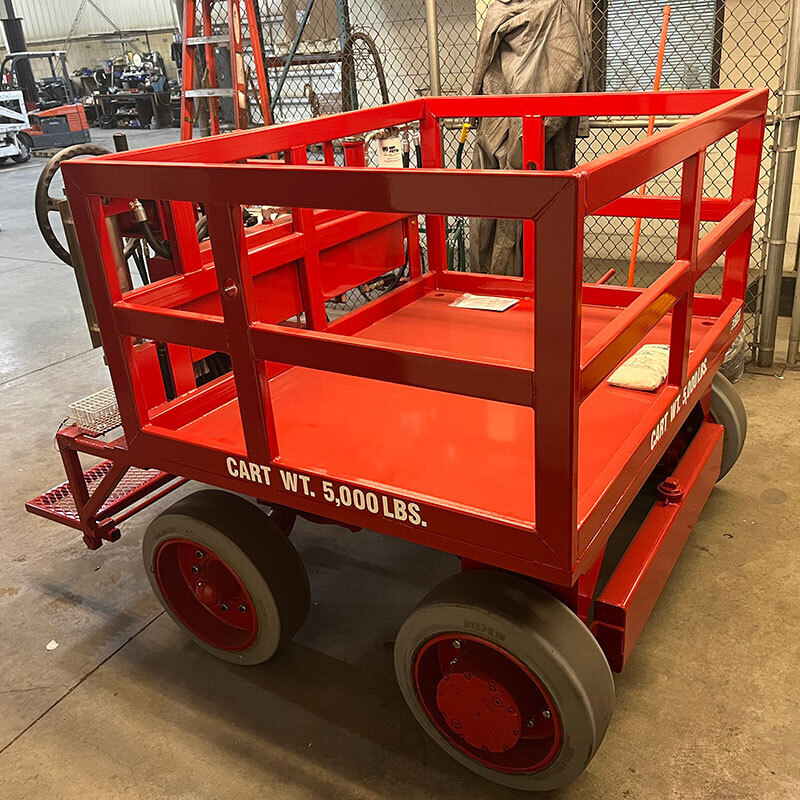

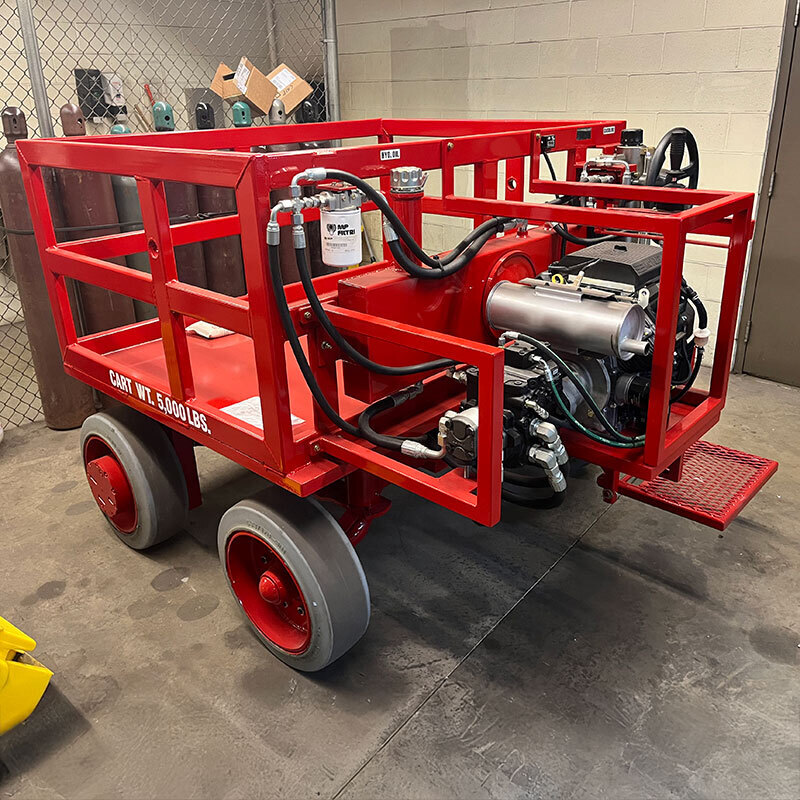

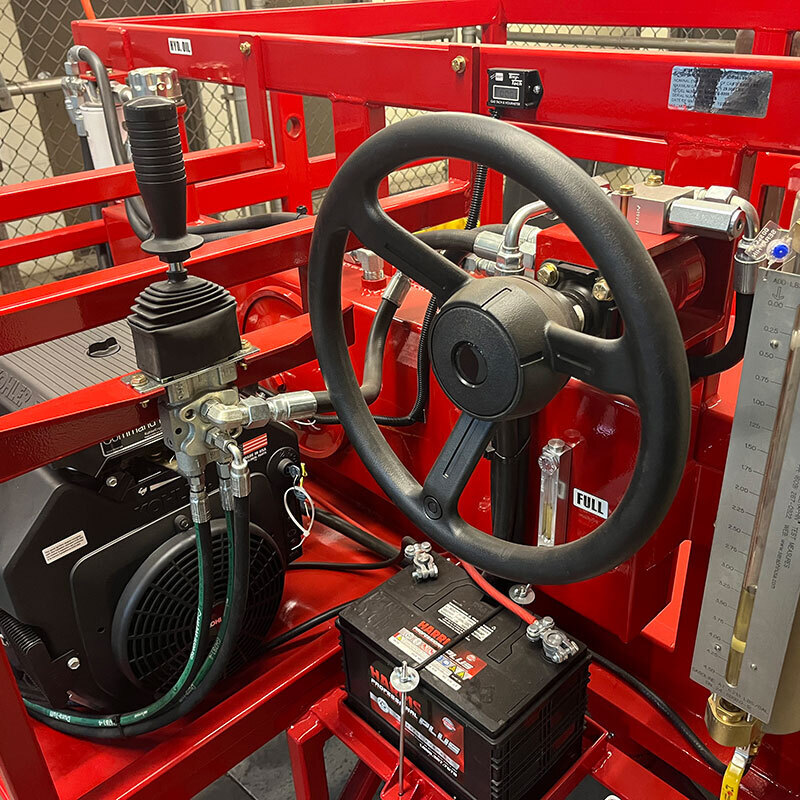

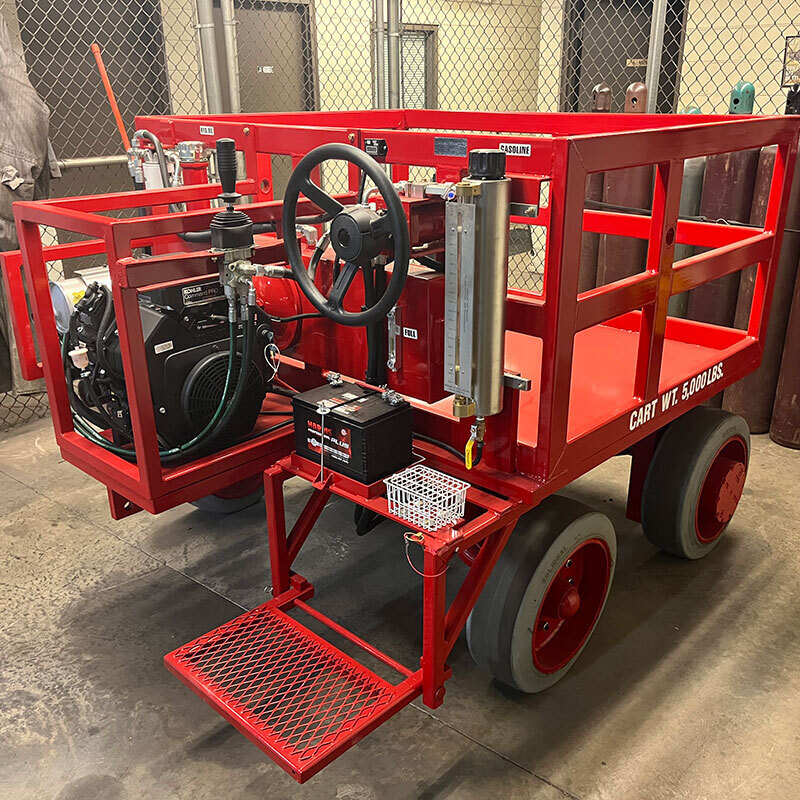

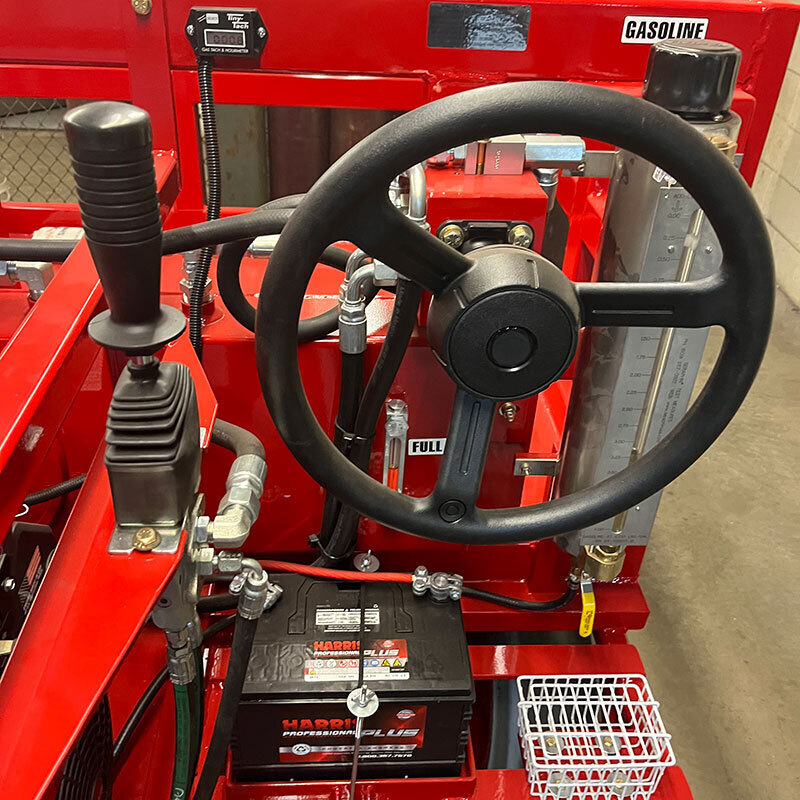

B-TEK's 4-Wheel Test Cart 5000 lbs empty weight. gasoline engine, electric start, hydraulic double reduction torque hub final drive and hydraulic steering on two wheels, brakes apply when not under power, cart holds up to (24) 1000lb weight blocks.
- Ease of Use - Fully-hydrostatic drive and power steering provide effortless maneuvering and positioning
- Fuel Efficiency - Gasoline powered engine with electric start eliminates the need to charge batteries or obtain specific fuel
- Customizable - Can be designed to fit any specific needs or applications
Details
B-TEK's 4-Wheel Test Carts are designed to accurately calibrate and test truck scales. They feature low-speed, high-torque operation and can hold (24) standard 1,000-pound test weights, for a gross capacity ranging from 27,000 to 30,000 pounds.
With decades of experience in the scale industry, our test carts provide best-of-class ease of operation and are built to last. B-TEK Test Carts ensure that your scales provide reliable weight readings, giving you the confidence that your scales are accurate and within tolerance.
Certification: Meets NIST specifications and tolerances for new field standard test carts per Handbook 105-8
Specifications
- 2 Drive Wheels
- Gasoline-powered Engine with Electric Start
- Hydraulic Torque Hub Drive/Hydraulic Power Steering
- Pressurized Oil Filtering System
- Sealable Ballast Weight Tank
- Sealable Hydraulic Fluid Tank
- Folding Operator Step
- 21” x 6” Smooth Tires
- Hour Meter on Engine
- Correction Weights Included
- Center-mounted Engine
- Parking Brake
- Empty Cart Weight 3k-6k lbs.
- Number of Test Weights: Up to 24 1k Blocks
- Gross Capacity: 27k-30k lbs.
- Optional Spreader/Lifting Bar for Test Cart and Weights
- Optional Lifting Basket Design for Overhead Crane Weighing
- Optional RF Remote Controls
- Optional Custom Basket Measurement
- Optional Extended Width Tires
- Optional Test Weights
- Optional Custom Colors and Branding
Cart Condition
- New
