Details

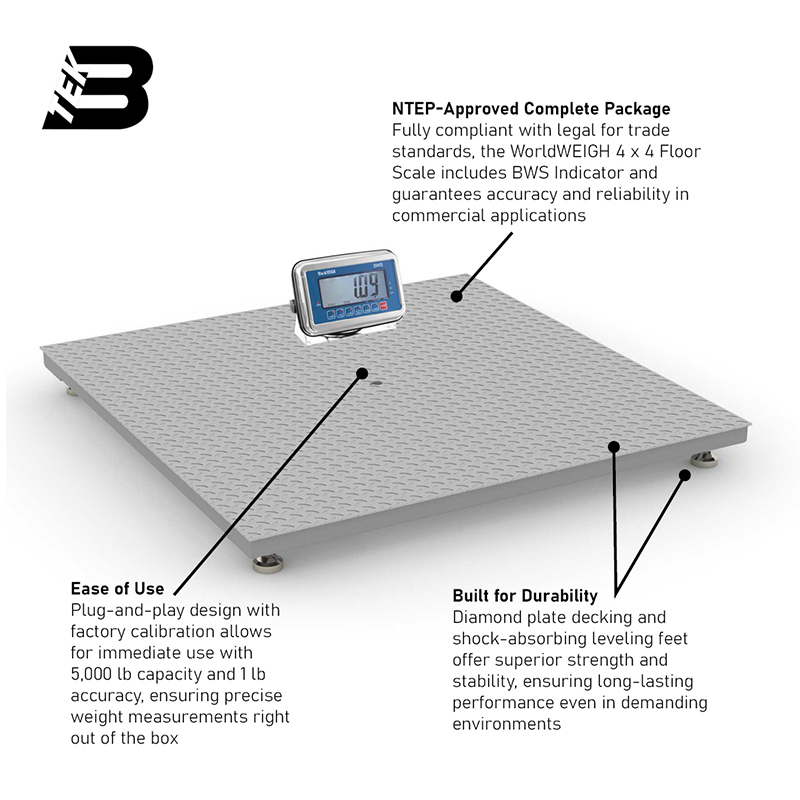

Equipped with gator grip decking, shock-absorbing leveling feet, and top access junction box. Easy set up with plug-and-play scale and indicator. The Floor Scale has a 5,000 lb capacity and factory calibration with 1 lb accuracy. The complete package includes a BWS indicator with stainless steel housing with extra-large, 2-inch tall display digits with a backlight for exceptional visibility.

FLOOR SCALE DECK TYPE: Tread
JUNCTION BOX ACCESS: Top

Specifications

  • NTEP Approved
  • Factory calibrated 5,000 lb x 1 lb
  • 48 x 48 inch
  • Gator Grip plate deck
  • (4) 2.5k load cells
  • 2-1/2-inch diameter swivel base leveling feet
  • Threaded plug for deck foot / lift eye holes
  • Lifting eye
  • 14-feet poly coated cable with DB-9 connector for indicator
  • Formed channel construction
  • Gray epoxy paint

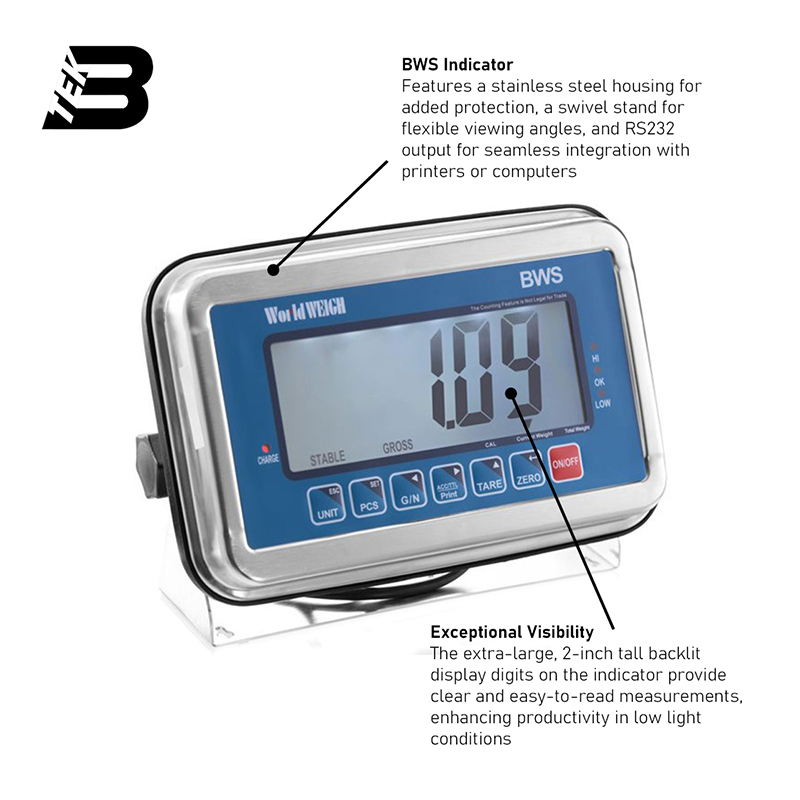

  • BWS indicator durable stainless steel housing
  • Backlit 2" LCD display
  • Units: kg, lb
  • AC line cord / Built-in rechargeable battery
  • 30-hour typical battery operation
  • (1) RS-232 computer / printer port
  • Simple menu navigation and configuration
  • IP65 water resistance rating

Function

  • Checkweighing
