Details

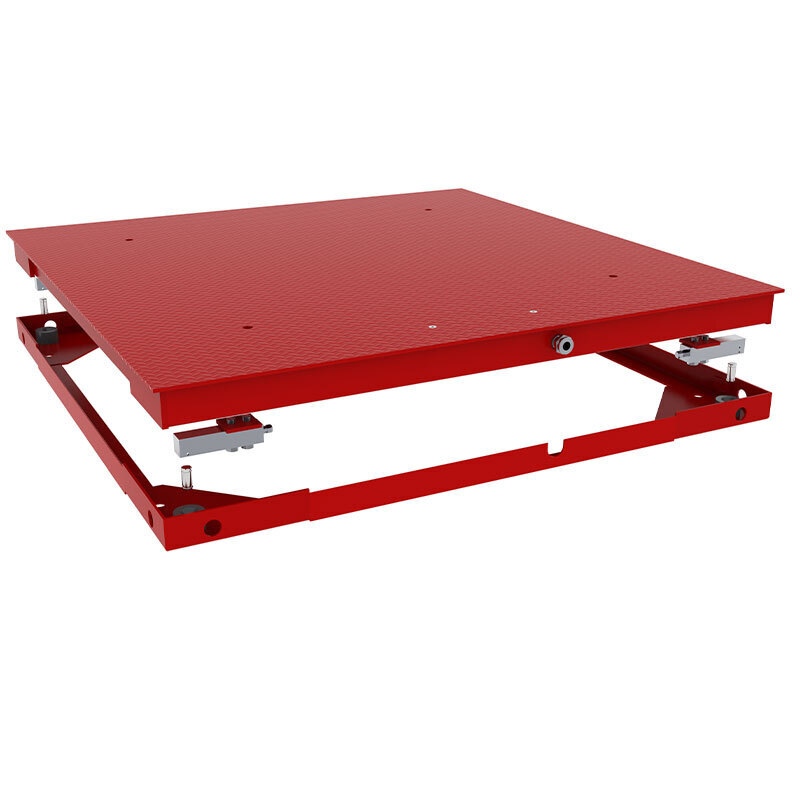

B-TEK's RPS (Rocker Pin Suspension) Floor Scale uses suspension style weighing while utilizing a self-aligning load cell, resulting in more precise accuracy. Minimal to no adjustments are needed with fixed receiver cups built into the frame allowing for less parts to become loose or out of tolerance. The RPS floor scale has a 100% end load capacity for greater protection and the lower deck height is designed to help with height restrictions and accessibility in hopper, shelving or conveyor applications.

Specifications

  • NTEP COC: 94-092A3
  • Type: Above ground or pit
  • Scale Capacity: 1,000 x 0.2 lb / 2,500 x 0.5 lb / 5,000 x 1 lb / 10,000 x 2 lb
  • Scale Height: 3" nominal (1,000 - 5,000) / 3-1/2" nominal (10,000)
  • Available Sizes: 3' x 3' - 5' x 7' - Custom sizes upon request

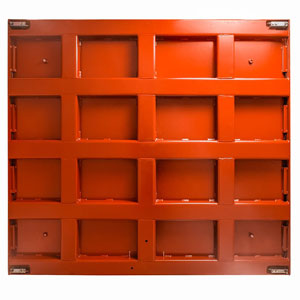

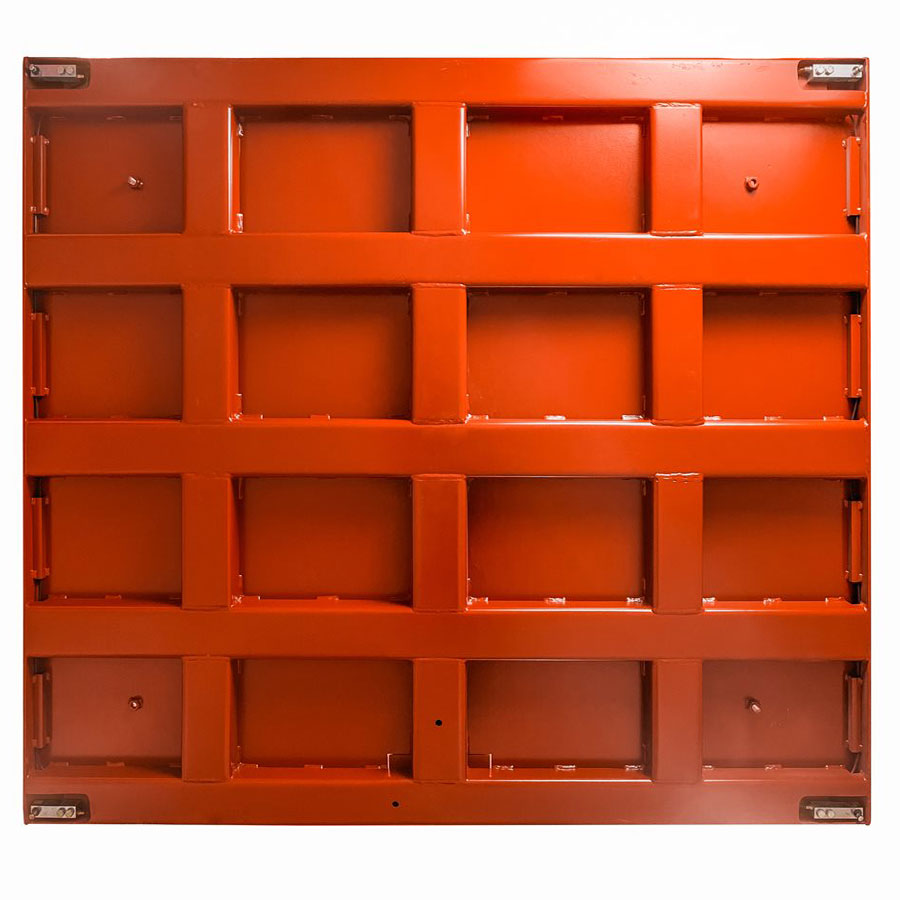

  • Weighbridge: 1/4" carbon steel tread deck plate w/ formed channel sub-structure / 1/4" 304 stainless steel smooth deck plate w/ formed channel sub-structure

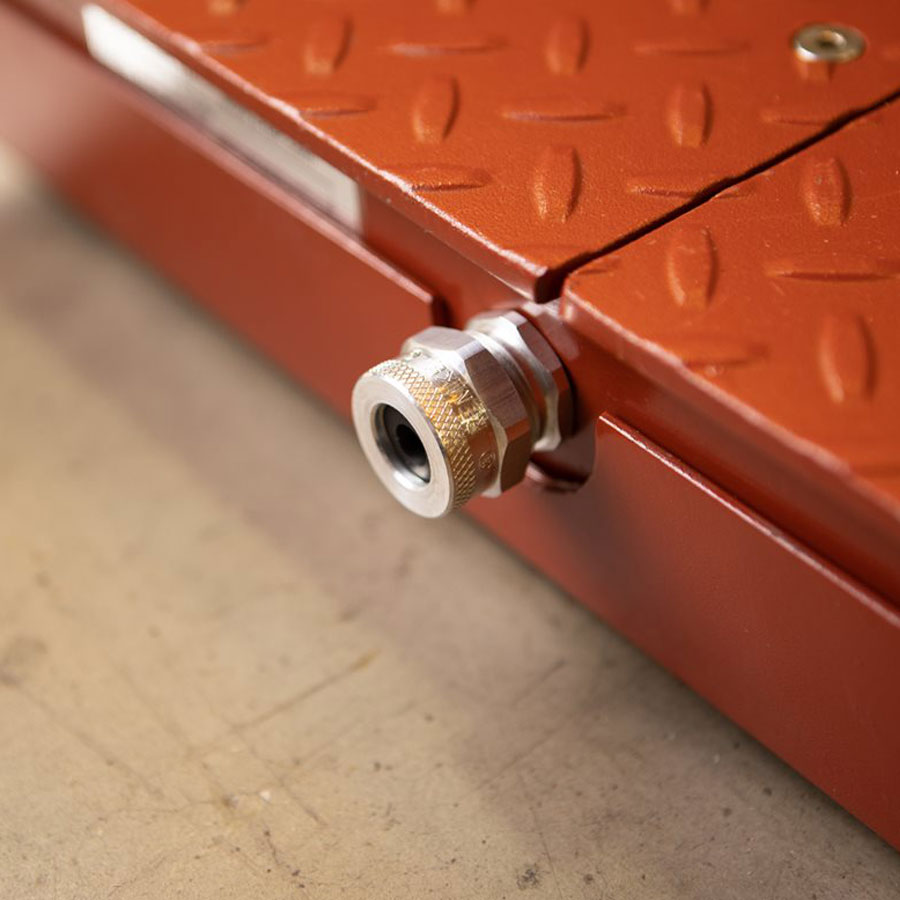

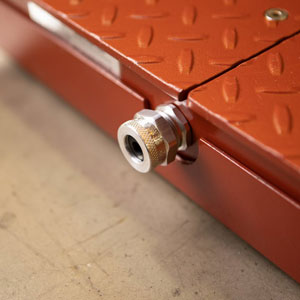

  • Deck: Top access junction box, threaded lifting eye bolt holes: 5/8"-11 eyebolt
  • Paint System: Alkyd Enamel (carbon steel) - All exposed surfaces are media blasted to a clean, consistent appearance (stainless)
  • Load Cell: Stainless steel IP67, 350 Ohms, 2.0 mV/V, FM Approved
  • 1,000 lb capacity: (4) 500 lb cells
  • 2,500 lb capacity: (4) 1,250 lb cells
  • 5,000 lb capacity: (4) 2,500 lb cells
  • 10,000 lb capacity: (4) 5,000 lb cells

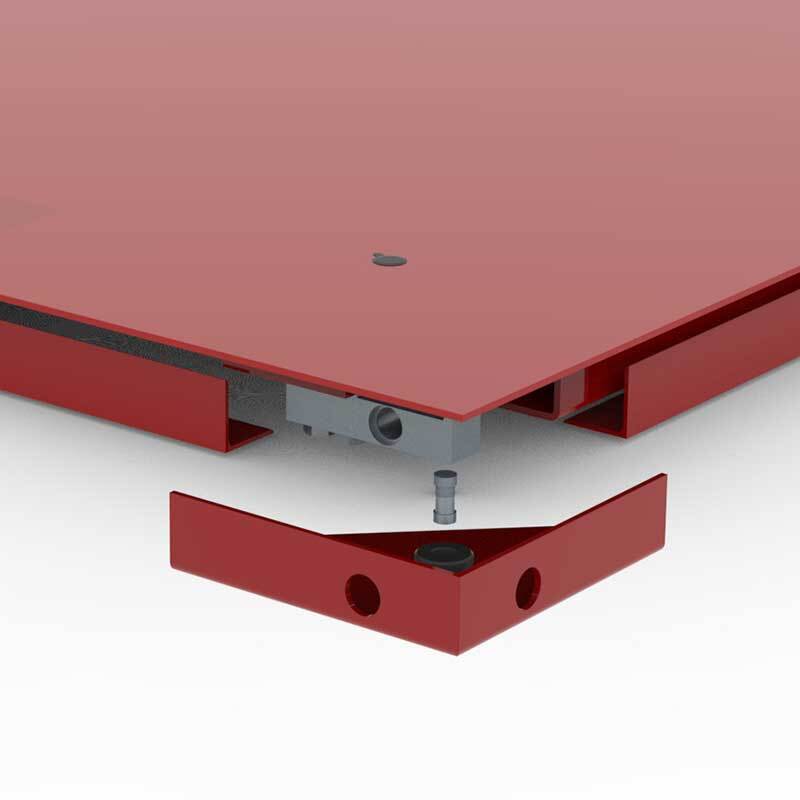

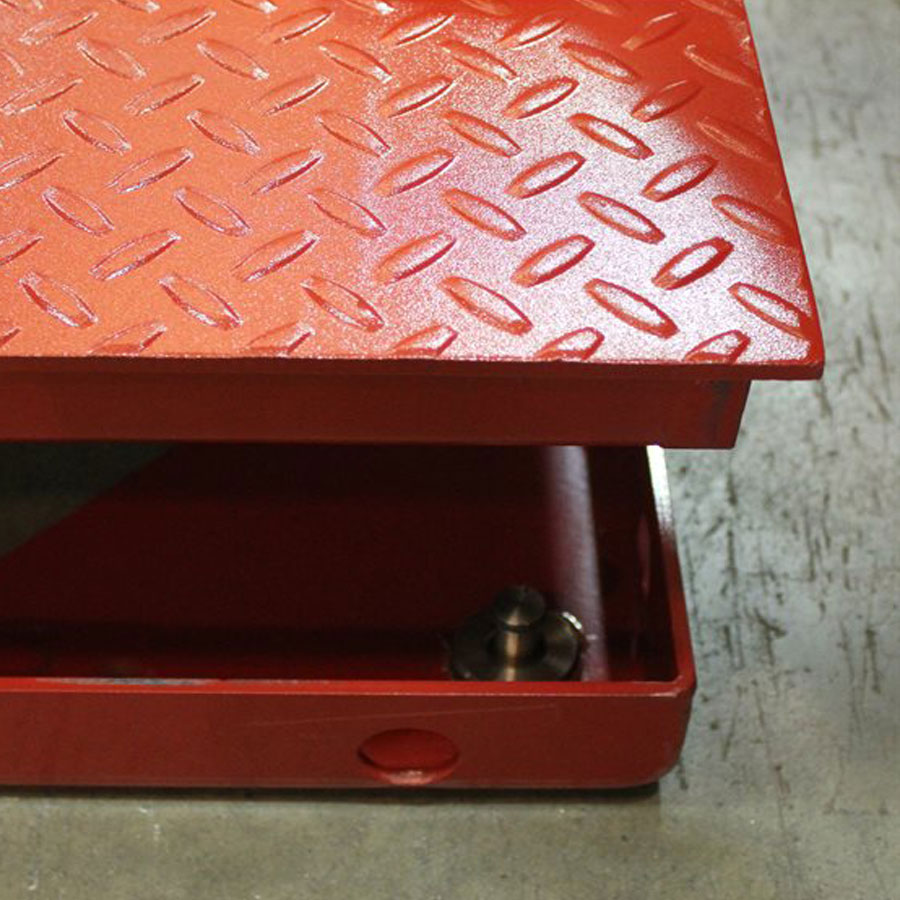

  • Leveling foot: Fixed rocker pin - no height adjustment
  • Junction Box: NEMA 4 fiberglass reinforced plastic (FRP) with signal trim summing board

Material

  • Carbon Steel
  • Stainless Steel

Literature

Frequently Asked Questions

3-Years on weighbridge steel structure
2-Years on load cells, junction box, and summing board
