Details

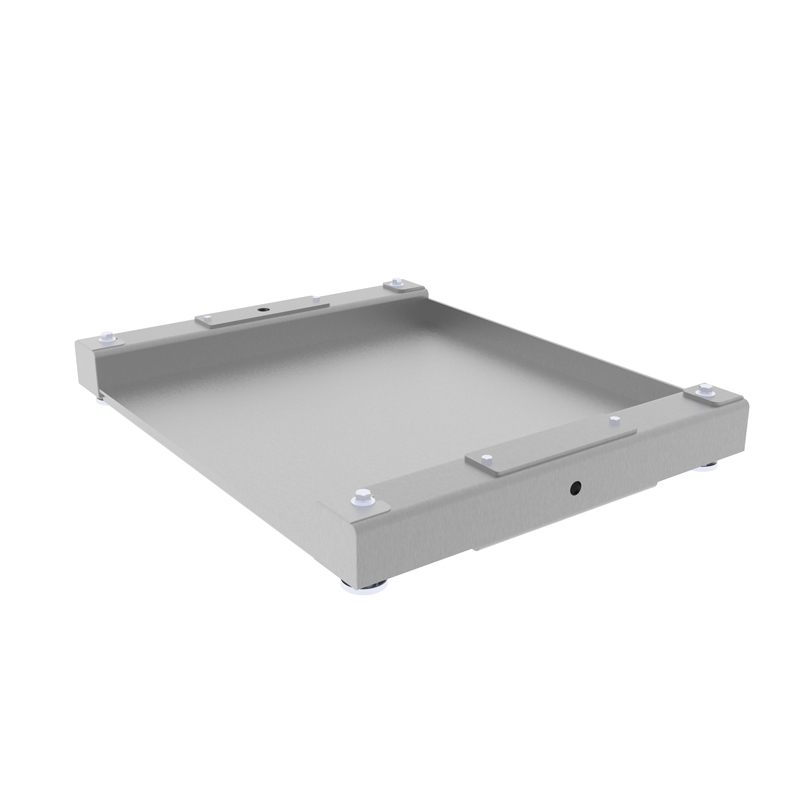

The B-TEK Drum Scale is designed with a low-profile weighing surface. The deck height makes this scale ideal for use with pallet jacks, dollies, wheeled carts and storage drums rolled on end. The scale is available in painted mild steel or 304 stainless steel. The Drum Scale can be supplied with detachable ramps, indicator columns and wheeled portability kits. The simple, robust design of the scale allows for adaptability in many different types of industrial applications and environments.

  • Low profile
  • Side rails and backstop

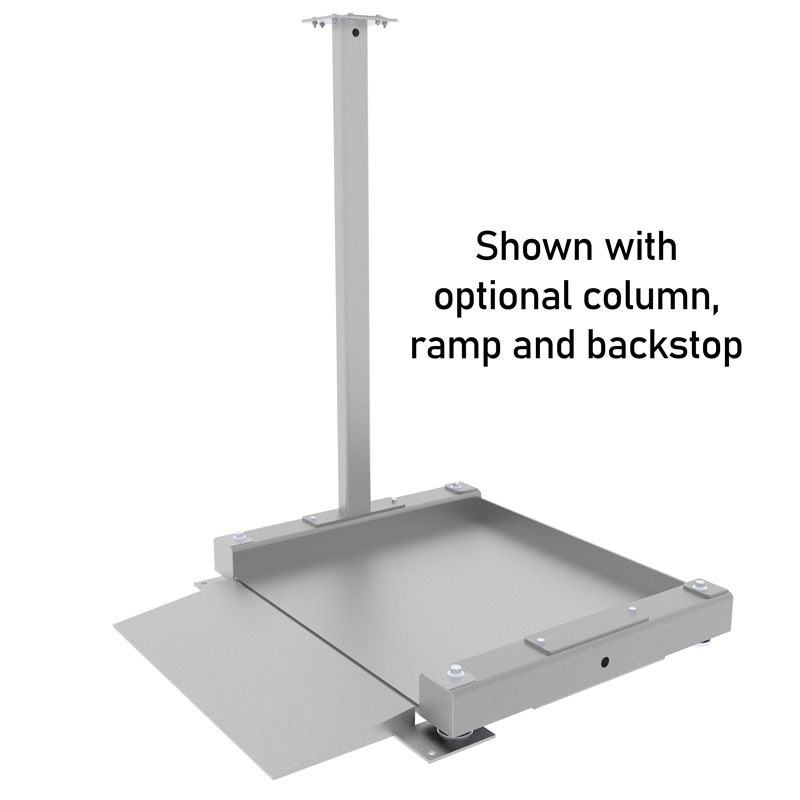

  • Detachable ramp (optional)
  • Column with universal indicator mount (optional)
  • Swivel casters and a push handle (optional)
  • Available in carbon and 304 stainless steel
  • NTEP Approved

Specifications

  • Certificate of Conformance: 94-092A3
  • Type: Low profile above ground
  • Scale Capacity: 1,000 & 2,500 lbs.
  • Scale Height: 1-1/2” nominal deck height
  • Available Sizes: 2’ x 2’ - 4’ x 4’ - Custom sizes upon request
  • Weighbridge: 1/4” carbon steel tread plate deck with live side rail design
  • Deck: Side access FRP junction box, leveling foot adjustment holes in side rails
  • Paint System: Alkyd Enamel paint
  • Load Cell: Plated alloy steel, 350 Ohms, 3.0mV/V
  • 1K capacity: (4) 1,000 lb.
  • 2.5K capacity: (4) 2,500 lb.
  • Leveling foot: B-TEK stainless steel ball encapsulated foot - 2.5” diameter base
  • Junction Box: NEMA 4 fiberglass reinforced plastic (FRP) with signal trim summing board

Material

  • Carbon Steel
  • Stainless Steel

Capacity

  • 1,000 lb
  • 2,500 lb

Literature

Options & Accessories

Columns
Misc
Drum Scale Backstop Adder
Product Code: 913-1297
Material
$125.00
Drum Scale Ramp
Product Code: 913-1208
Size
Material
$595.00
Drum Scale Square Tube Push Handle
Product Code: 913-1267
Material
$425.00
Drum Scale Wheel Kit
Product Code: 913-1261
Material
$2,265.00
