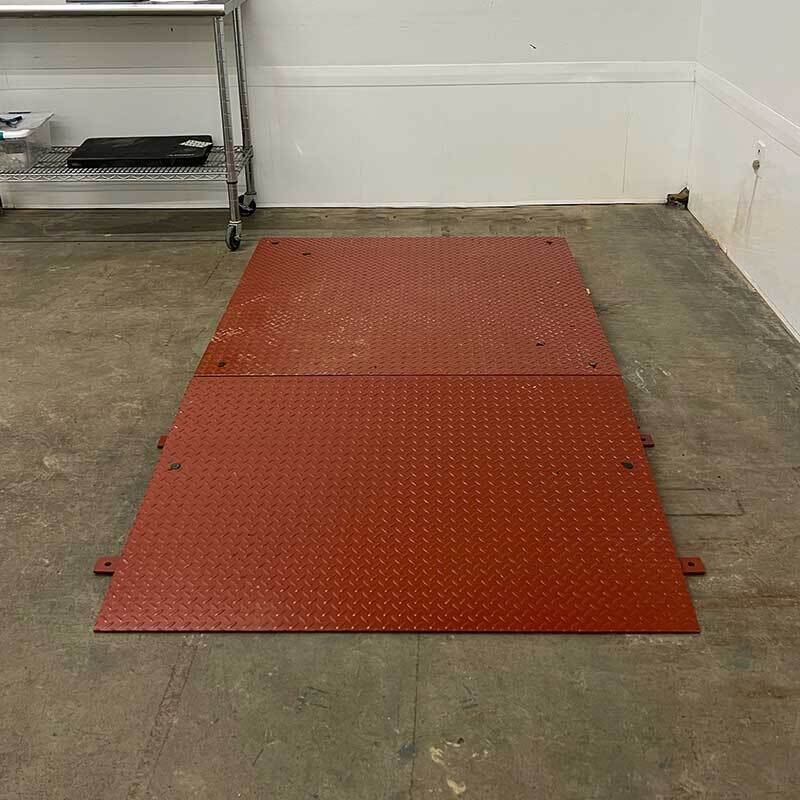

Clydesdale Carbon Steel Floor Scale
https://www.b-tek.com/products/platform-scales/all-floor-scales/floor-scales/clydesdale-carbon-steel-floor-scale
Share this product beyond Facebook and Twitter!
Product Code: 911-1120

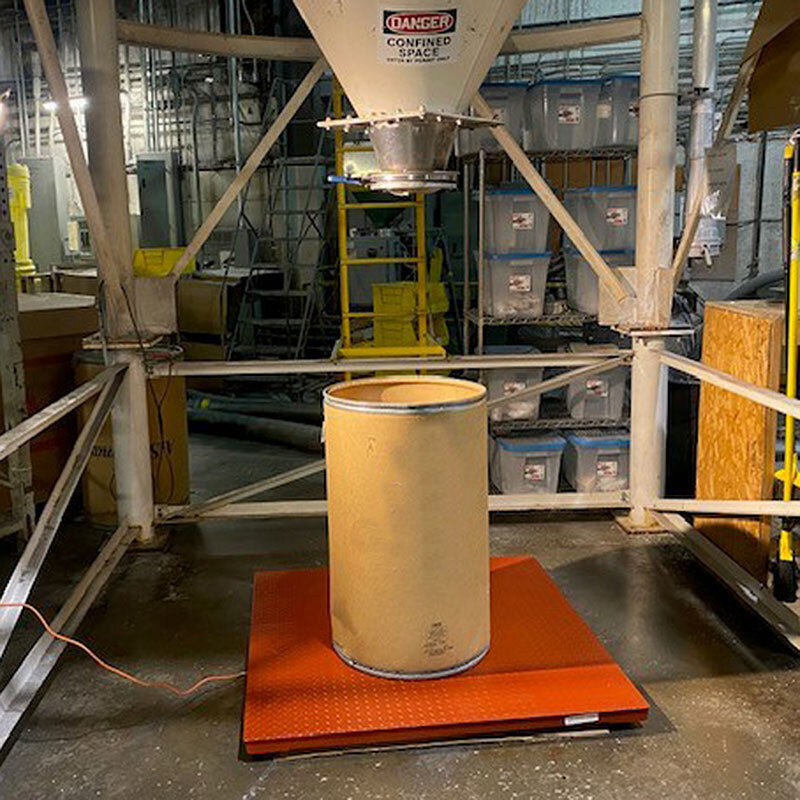

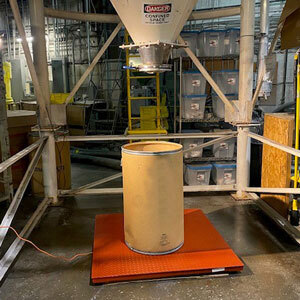

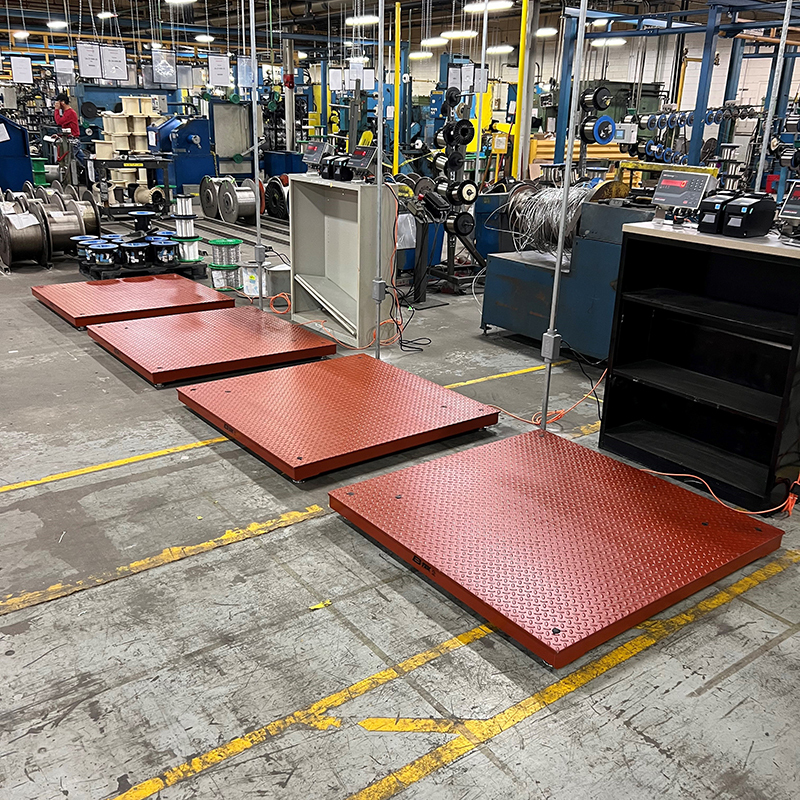

The Clydesdale floor scale is designed for use in a variety of industrial, commercial, and agricultural applications.
- Acrylic Alkyd Enamel Paint System - Protects against chipping, wear, salt water, cleaning agents, mild acids, solvents and shop chemicals

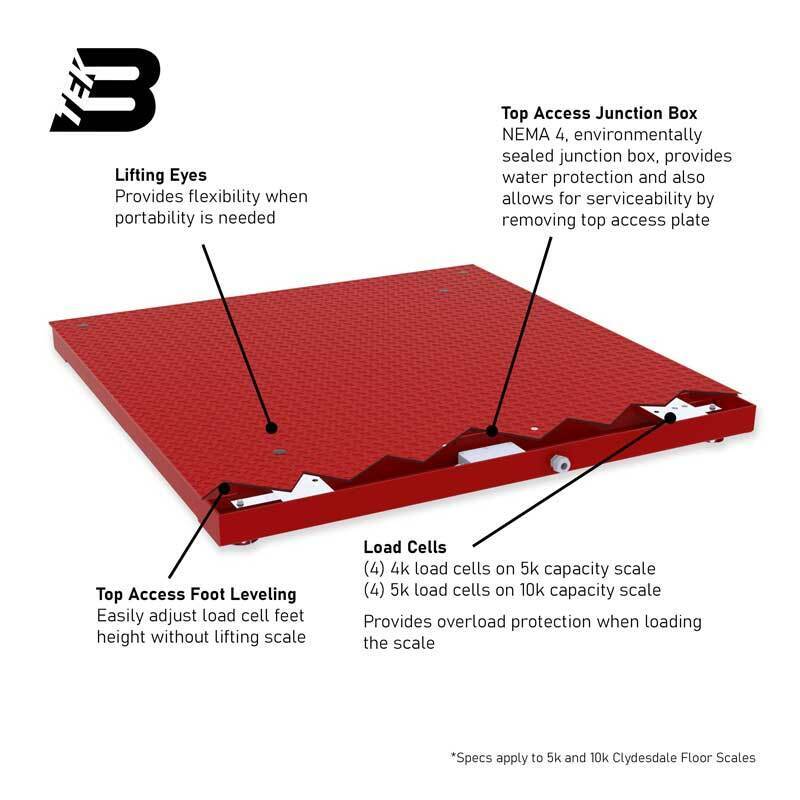

- Stainless Steel Ball Encapsulated Feet - Compensate for uneven mounting surfaces
- Formed Channel Weighbridge Substructure - C-channel height completely encloses the load cell body for added protection
- Environmentally Sealed Top Access Junction Box - Easy serviceability and water protection
- Precision Load Cells - Durable, reliable, accurate and environmentally protected (IP67) for safe outdoor use
- Heavy Platform Deck - Insures long term structural integrity of the scale
Details
The Clydesdale floor scale is designed for use in a variety of industrial, commercial, and agricultural applications. NTEP (trade approved) platform sizes range from 24" x 24" to 120" x 96". Capacities from 500 lb x .1 lb to 20,000 x 5 lb. B-TEK excels in the ability to design and build the Clydesdale for applications beyond the normal, everyday warehouse scale. Custom sizes and capacities are available upon request.
Specifications
- COC: 94-092A4

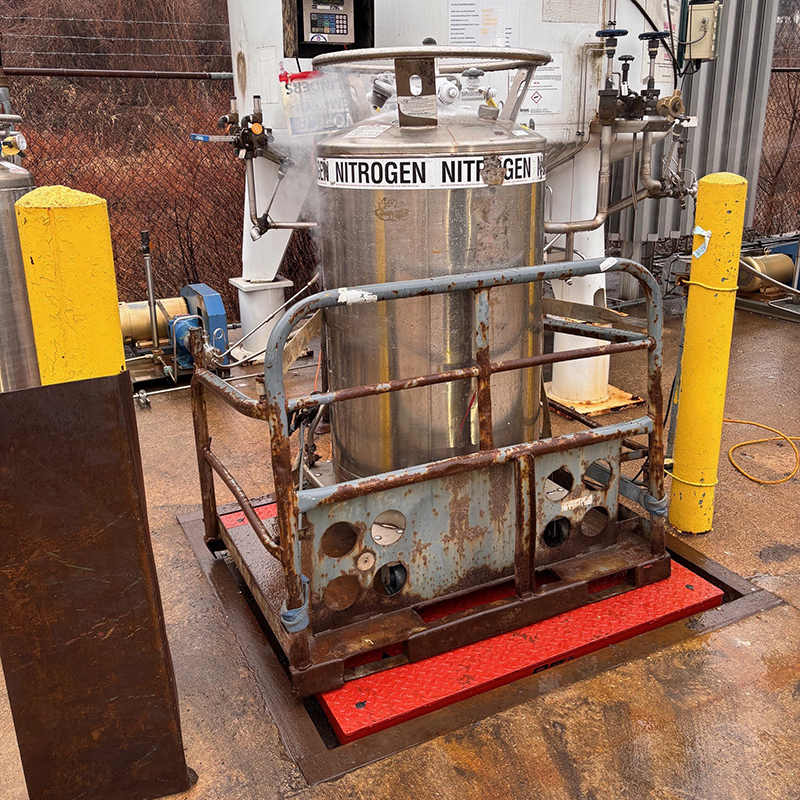

- Above ground or pit installation
- NTEP capacities: 500 lb x .1 lb to 20,000 x 5 lb.

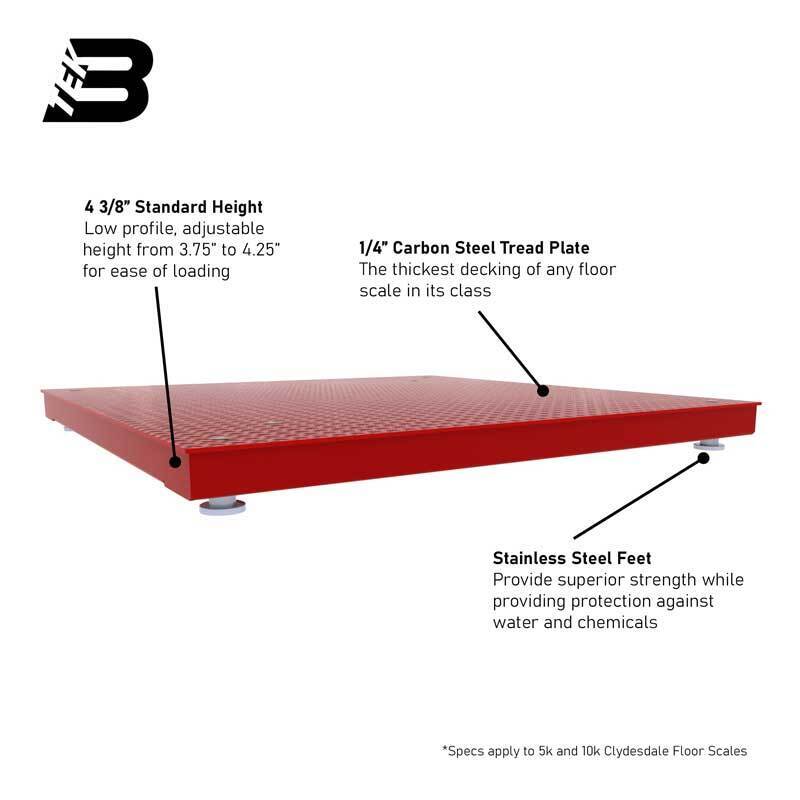

- 4-3/8" deck height (2,500 - 10,000 lb)
- 5-3/8" deck height (20,000 lb)
- NTEP platform sizes: 24" x 24" to 120" x 96"
- Tread plate deck (smooth plate option)
- Formed C-channel sub-structure
- Top access junction box (side access option)
- Stainless steel ball encapsulated feet
- Top access foot leveling and lifting eyes
- Acrylic Alkyd Enamel paint
- Plated alloy steel, 350 Ohms, 3.0 mV/V load cell
- NTEP Approved
Shipping Dimensions
| Product Code | Length | Width | Height | Weight |
|---|---|---|---|---|
911-1100 | 0" | 0" | 0" | 110 lbs |
911-1101 | 0" | 0" | 0" | 105 lbs |
911-1103 | 0" | 0" | 0" | 151 lbs |
911-1110 | 0" | 0" | 0" | 228 lbs |
911-1115 | 0" | 0" | 0" | 290 lbs |
911-1118 | 0" | 0" | 0" | 350 lbs |
911-1119 | 0" | 0" | 0" | 350 lbs |
911-1120 | 0" | 0" | 0" | 344 lbs |
911-1121 | 0" | 0" | 0" | 365 lbs |
911-1129 | 0" | 0" | 0" | 399 lbs |
911-1134 | 0" | 0" | 0" | 508 lbs |
911-1135 | 0" | 0" | 0" | 525 lbs |
911-1136 | 0" | 0" | 0" | 513 lbs |
911-1144 | 0" | 0" | 0" | 462 lbs |
911-1155 | 0" | 0" | 0" | 752 lbs |
911-1169 | 0" | 0" | 0" | 710 lbs |
911-1170 | 0" | 0" | 0" | 710 lbs |
911-1172 | 0" | 0" | 0" | 1010 lbs |
Literature
Options & Accessories
Frequently Asked Questions
- 3-Years weighbridge steel structure
- 2-Years on load cells, junction box, and summing board
