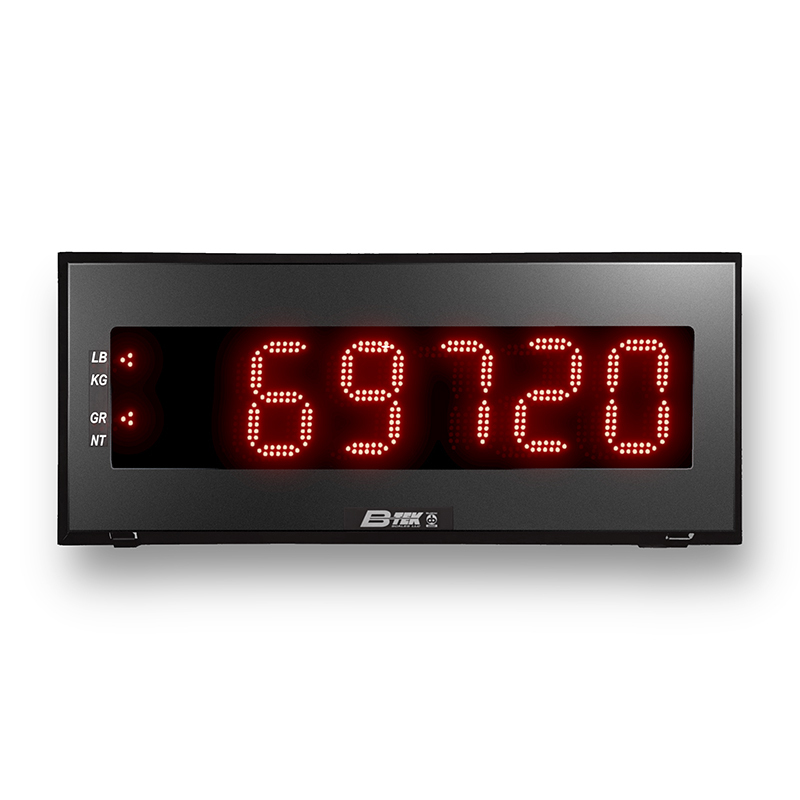

SUPERBRIGHT 2 LED Remote Display
- High-intensity LEDs - Visible even in direct sunlight for easy readability
- Rugged NEMA 4 Case - Ensures durability and protection in harsh environments
- Auto-learn Feature - Automatically adapts to any data stream, simplifying setup
- Large Digits - Enhances visibility for viewing up to 250 feet away

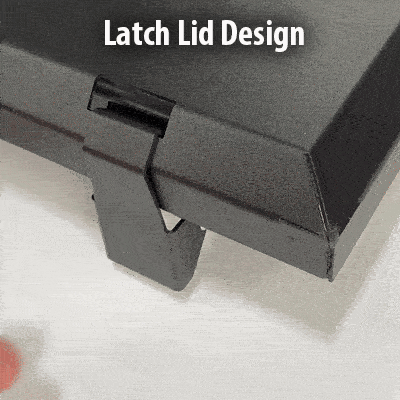

- Front Access Design - Fast, easy setup with no tools required
Details
The SUPERBRIGHT 2 LED Remote Display is engineered to provide dependable weight visibility in demanding industrial environments. Built with high-intensity LED technology, it provides clear, accurate readings for operators and drivers, even in bright sunlight or low-light conditions. In many truck scale applications, this style of remote display is commonly known as a scoreboard, serving as a critical communication tool between the scale and approaching vehicles.
Constructed with a durable enclosure, the unit is designed to handle exposure to weather, dust, and daily industrial use. Its large numeric display improves readability from extended distances, helping reduce confusion and supporting safer vehicle positioning on and around the scale. This level of visibility is especially important in high-traffic areas where quick and accurate weight communication is required.
Installation is straightforward, with flexible mounting options that let you position the display for optimal viewing. Once installed, the remote display operates as a dependable scoreboard, providing consistent performance with minimal maintenance. Its simple design and reliable operation make it a practical solution for facilities that require clear, continuous weight display without added complexity.
Specifications
- 6-digit Superbright red LED display (double-row digits on 5" and 8" displays.
2" displays have single row-digits) - Auto-Learn feature automatically decodes data stream
- Adjustable LED intensity
- Weatherproof powder coated aluminum alloy enclosure
- LB / KG and GR / NT display character annunciators
- Mirror display function
- Accepts: 20 mA, RS-232 and RS-422 / 485 inputs
- Configurable baud rate 300 to 19,200
- (Echo) retransmit data stream output
- 120 VAC (standard) or 12 - 36 VDC (optional) operating voltage
- 60" AC line cord
