Tedea-Huntleigh 1250 High Capacity Single-Point
https://www.b-tek.com/products/parts-accessories/load-cells/single-point-load-cell/tedea-huntleigh-1250-high-capacity-single-point-tedeahuntleigh1250-group
Share this product beyond Facebook and Twitter!
Product Code:
814-100077
Long-term stability and durability are maintained throughout use.
Details

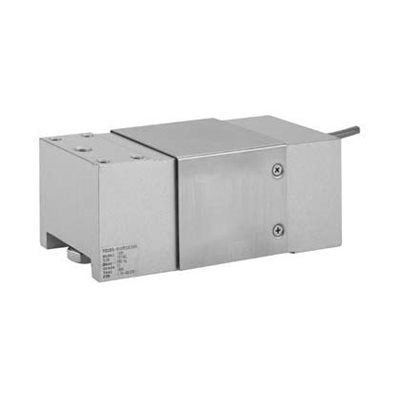

The Tedea-Huntleigh 1250 aluminum, single-point, high-capacity, off-center loading load cell accurately weighs loads from 50 to 1,000 kg. Long-term stability and durability are maintained throughout use. This load cell comes with 10 ft of load cell cable.
Interchangeable Products: Celtron LOC, Flintec PCB, HBM PW12, Rice Lake RL1250
Specifications
- Full Scale Output: 2.0 mV/V
- Input Resistance: 415 ± 15 ohms
- Output Resistance: 355 ± 3 ohms
- Material/Finish: Anodized aluminum
- Temperature: Compensated 14° to 104° F / -10° to 40° C
- Operating -4° to 158° F / -20° to 70° C
- Safe Overload: 150% Full scale
- Rated Excitation: 10 VDC (15 V max)
- Combined Error: 0.02% Full Scale
- Insulation Resistance: >2000 megohms
- Seal Type: Potted and/or Environmentally sealed - IP65
- Cable Length: 10 ft
- Approvals: NTEP FM Approved
Max Cell Capacity
- 250 kg
- 300 kg
- 500 kg
- 635 kg
- 1,000 kg
- 50 kg
- 75 kg
- 100 kg
- 150 kg
- 200 kg
Frequently Asked Questions
Celtron LOC, Flintec PCB, HBM PW12, Rice Lake RL1250
