Details

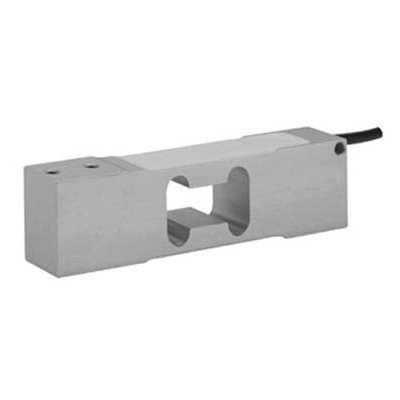

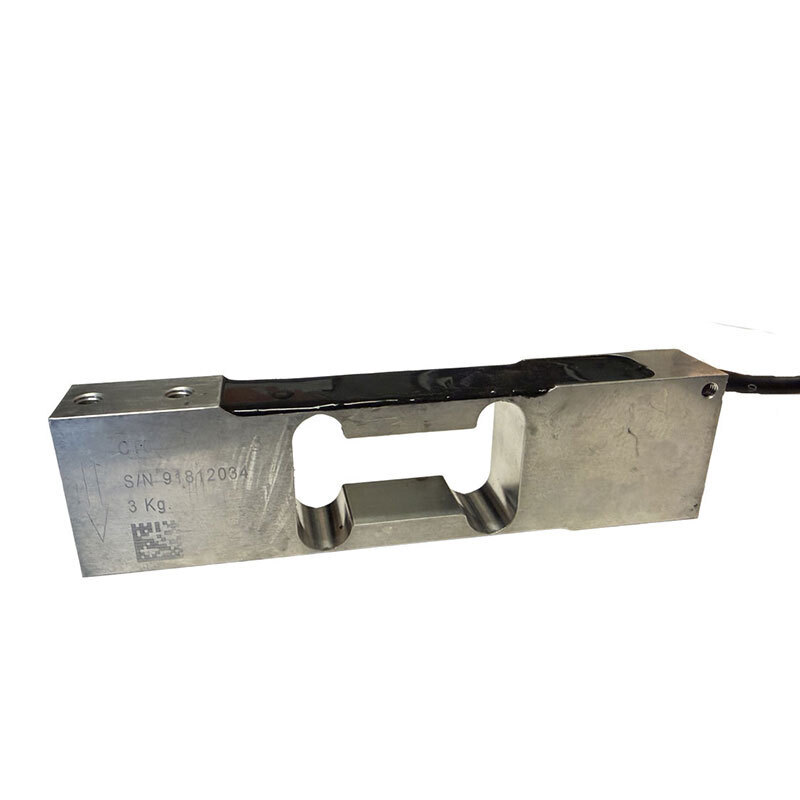

The Tedea-Huntleigh 1042 aluminum, the single-point load cell is ideal for platform weighing by offering high immunity to side forces with a special coating to provide humidity resistance. Its capacities range from 1 to kg, and this load cell comes complete with 10 ft of load cell cable.

Interchangeable Products: Revere 642, HBM SP4, RLWS RL1042, ZEMIC L6N



NTEPLogo

FMApproved thumb

Specifications

  • Full Scale Output: 2.0 mV/V
  • Input Resistance: 415 ± 15 ohms
  • Output Resistance: 355 ± 3 ohms
  • Material/Finish: Aluminum
  • Temperature: Compensated 14° to 104° F / -10° to 40° C
  • Operating -4° to 158° F / -20° to 70° C
  • Safe Overload: 150% Full scale
  • Rated Excitation: 10 VDC (15 V max)
  • Combined Error: 0.02% Full scale
  • Insulation Resistance: >2000 megohms
  • Seal Type: Environmentally sealed - IP66
  • Cable Length: 10 ft
  • Approvals: NTEP FM Approved

Max Cell Capacity

  • 50 kg
  • 75 kg
  • 100 kg
  • 3 kg
  • 10 kg
  • 15 kg
  • 20 kg
  • 30 kg
  • 7 kg
