Details

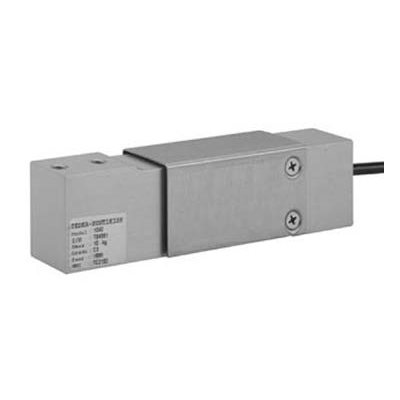

The Tedea-Huntleigh 1040 aluminum, single-point load cell is designed for direct mounting of weighing platforms, hanging scales, and other low-capacity beam applications. 1040 maintains long-term stability and durability. Its capacities range from10 to 100 kg, and it comes complete with 10 ft of load cell cable.

Interchangeable Products: Celtron LOC, Mettler Toledo 0785

 NTEPLogo

FMApproved thumb



Specifications

  • Full Scale Output: 2.0 mV/V
  • Input Resistance: 415 ohms
  • Output Resistance: 350 ohms
  • Material/Finish: Aluminum
  • Temperature: Compensated 14° to 104° F / -10° to 40° C
  • Operating -4° to 158° F / -20° to 70° C
  • Safe Overload: 200% Full scale
  • Rated Excitation: 10 VDC (15V max)
  • Combined Error: 0.02% Full Scale
  • Insulation Resistance: >2000 megohms
  • Seal Type: Potted - IP65
  • Cable Length: 10 ft
  • Approvals: NTEP FM Approved

Max Cell Capacity

  • 50 kg
  • 100 kg
  • 10 kg
  • 15 kg
  • 20 kg
  • 30 kg
