Details

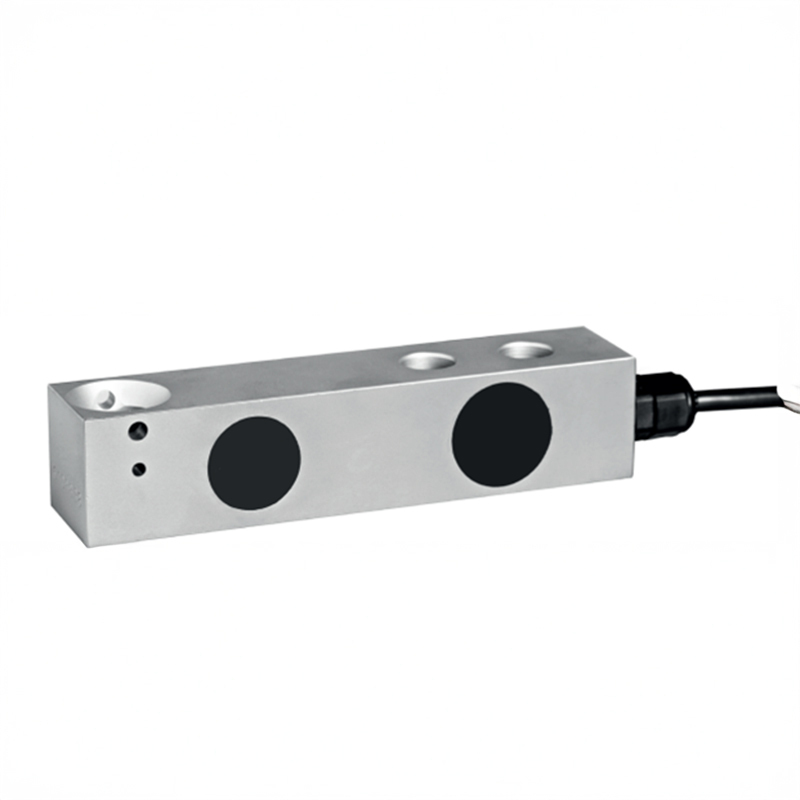

Flintec SLB Stainless Steel Blind Hole Single Ended Beam with 10' cable.
*SESB Environmentally Sealed High Accuracy Load Cell

Specifications

  • Rated Output: 2.0 mV/V
  • Input Resistance: 1100 +/- 50 Ohms
  • Output Resistance: 1000 +/- 2 Ohms
  • Excitation Voltage: 5-15 VDC
  • Insulation Resistance: >- 5000 Mega Ohms
  • Safe Load Limit: 200% Emax
  • Ultimate Load Limit: 300 %Emax
  • Sealing: Potted
  • IP Rating: IP67
  • Approvals: NTEP & FM Approvals
