Details

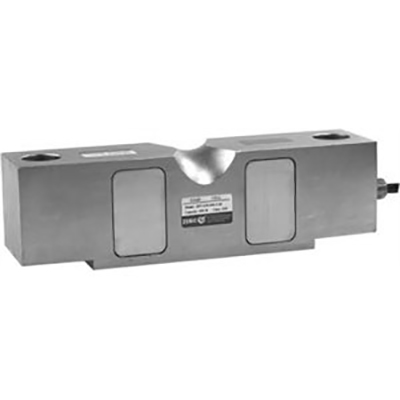

The ZEMIC H9N Double-Ended Link Shear Beam is ideal for truck scales, track scales, and other heavy weighing devices. This ZEMIC H9N load cell has a sealed construction and a low profile for easy installation. Offering a wide range of capacities, this load cell also has a cable length of 30 ft.

Interchangeable Products: Celtron DLB, Sensortronics 65058, Coti CG-58, Rice Lake RL75058, Vishay CLB

NTEPLogo

FMApproved thumb

Specifications

  • Max No. of Verification Intervals: 3000/10000 Nmax
  • Min Load Cell Verification Intervals: Class III/IIIL Vmin
  • Output Sensitivity: 3.0±0.003 mV/V
  • Input Resistance: 700 ± 7 ohms
  • Output Resistance: 703 ± 4 ohms
  • Insulation Resistance: =5000 (50 VDC)
  • Temperature: Compensated 14° to 104° F / -10° to 40° C
  • Operating -31° to 158° F / -35° to 70° C
  • Seal Type: Environmentally sealed - IP67
  • Excitation, Recommended: 5~12 V (DC)
  • Excitation, Max: 18 V (DC)
  • Safe Overload: 150% Full scale
  • Ultimate Overload: 300% Full scale
  • Cable Length: 30 ft

Max Cell Capacity

  • 25,000 lb
  • 40,000 lb
  • 50,000 lb
  • 60,000 lb
  • 75,000 lb
  • 100,000 lb
  • 125,000 lb
  • 150,000 lb
  • 200,000 lb

Frequently Asked Questions

Celtron DLB, Sensortronics 65058, Coti CG-58, Rice Lake RL75058, Vishay CLB
