Vehicle Loop Detector Kit
https://www.b-tek.com/products/parts-accessories/electronic-components/indicator-accessories/vehicle-loop-detector-kit
Share this product beyond Facebook and Twitter!
Product Code:
878-000037
The Vehicle Loop Detector Kit is an alert system designed for installation in the concrete approach of a truck scale. The induction loop senses a vehicle as it nears the platform and sends a signal to disable transactions or trigger alerts. Each kit includes preformed loops, detectors, and a prewired enclosure for simple field setup.
- Approach Installation Design – Installed in the concrete approach to sense trucks before reaching the scale platform
- Transaction Control Input – Contact closes when a truck is near the loop to prevent unintended transactions
- Wide Voltage Compatibility – Operates from 12 VDC to 240 VAC for flexible site conditions
- Selectable Sensitivity Levels – Ten adjustment points allow accurate tuning for different environments
- Multi-Frequency Operation – Four frequency settings help prevent crosstalk when multiple loops are used

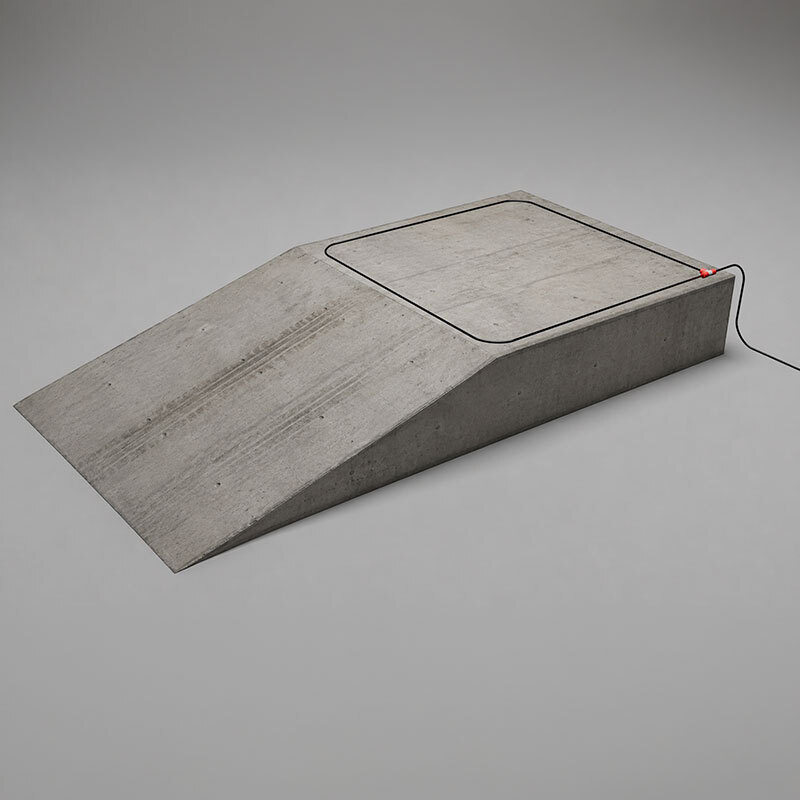

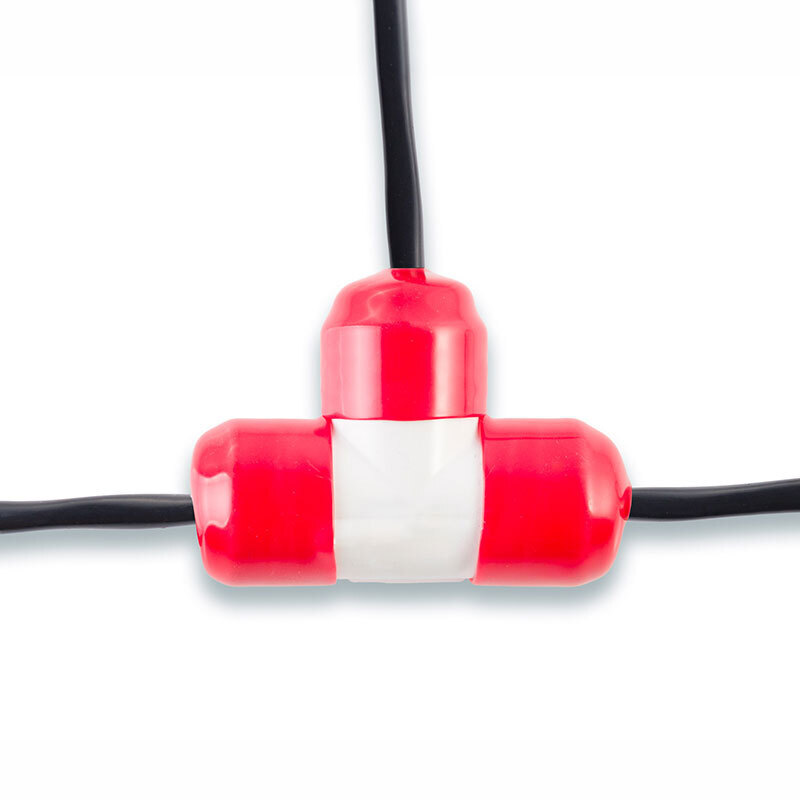

- Durable Preformed Loops – Offered in 4 ft x 6 ft or 4 ft x 8 ft sizes with rugged tubing and lightning protection
- Audio and Visual Alerts – Three alert channels with multiple tone patterns and adjustable 65–105 dBa output
- Prewired Junction Box – Components mounted and wired to speed up field installation
- Low Maintenance Design – Loops are protected from damage and require less upkeep than exposed sensors
Details

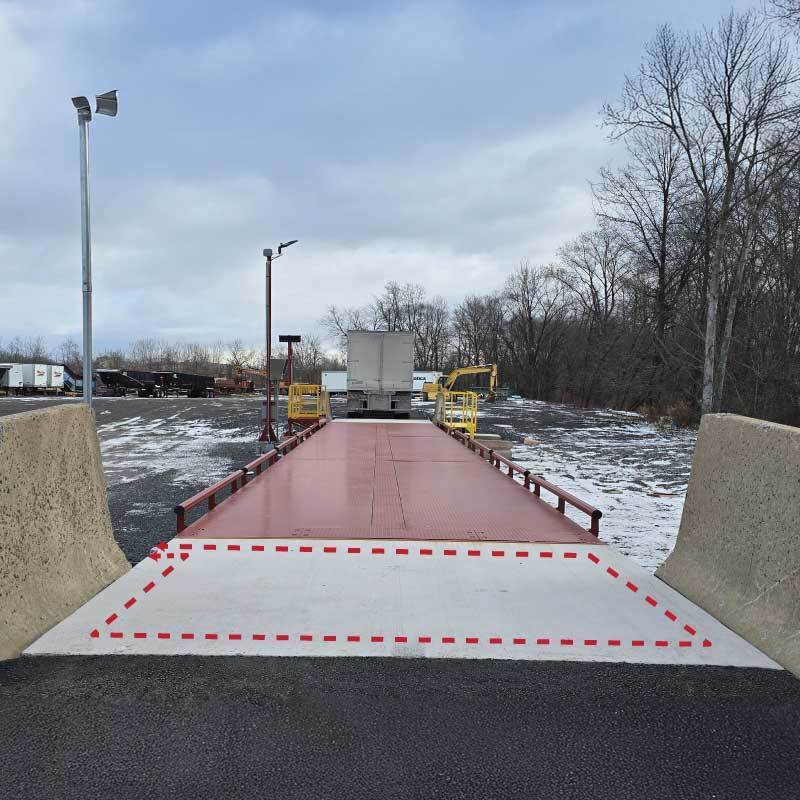

The Vehicle Loop Detector Kit helps prevent unintended transactions and provides clear feedback as trucks approach the scale. The loop is installed in the concrete approach roughly half a foot from the scale. When a truck moves near the loop, the metal in the vehicle slightly changes the loop’s resistance. The detector reads this change and closes a contact wired to the scale indicator. If the vehicle is not fully on the platform, the contact will remain active to stop a transaction until the truck advances into the correct position.

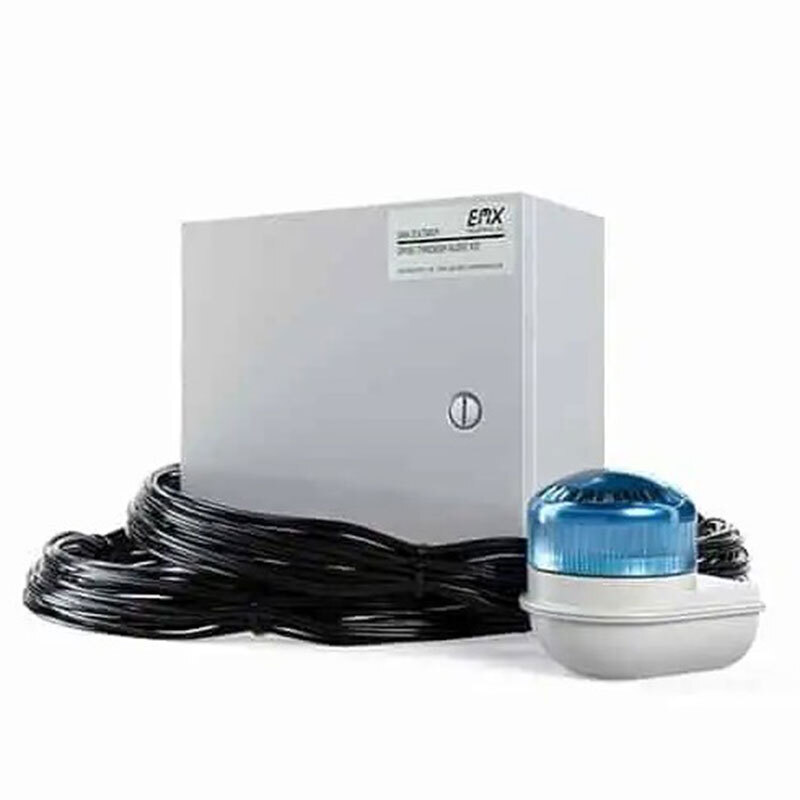

The system arrives with the transformer and detectors mounted and wired inside the junction box to reduce installation time. Terminal blocks make field connections straightforward with dedicated points for power, the loop leads and the LED beacon. The preformed loops are available in two sizes and are built with rugged tubing and integrated lightning protection for long-term durability in concrete, saw cut and tar installations.
The kit provides both audio and visual signaling through a multi-channel beacon with adjustable volume levels. It supports applications such as truck positioning, on-scale alerts and dual-zone detection for attended or unattended scale environments.
Specifications
- Loop Sizes: 4 ft x 6 ft or 4 ft x 8 ft
- Detection Method: Vehicle mass shifts loop resistance which activates detector contact
- Loop Construction: 0.26 in thermoplastic rubber tubing with lightning protection
- Lead Length: 100 ft, shorten or splice as needed
- Detector Voltage Range: 12 VDC to 240 VAC
- Sensitivity Settings: 10
- Frequency Settings: 4
- Relay Outputs: 2 (vehicle presence and loop fault or pulse functions)
- Alert Modes: Three channels offering simulated strobe, tone patterns, or steady light
- Tone Options: 64
- Volume Range: 65–105 dBa
- Enclosure: Prewired panel with transformer and detectors mounted
- Applications: Truck positioning alerts, transaction control, dual-zone approach detection
