Product Code:
915-2265

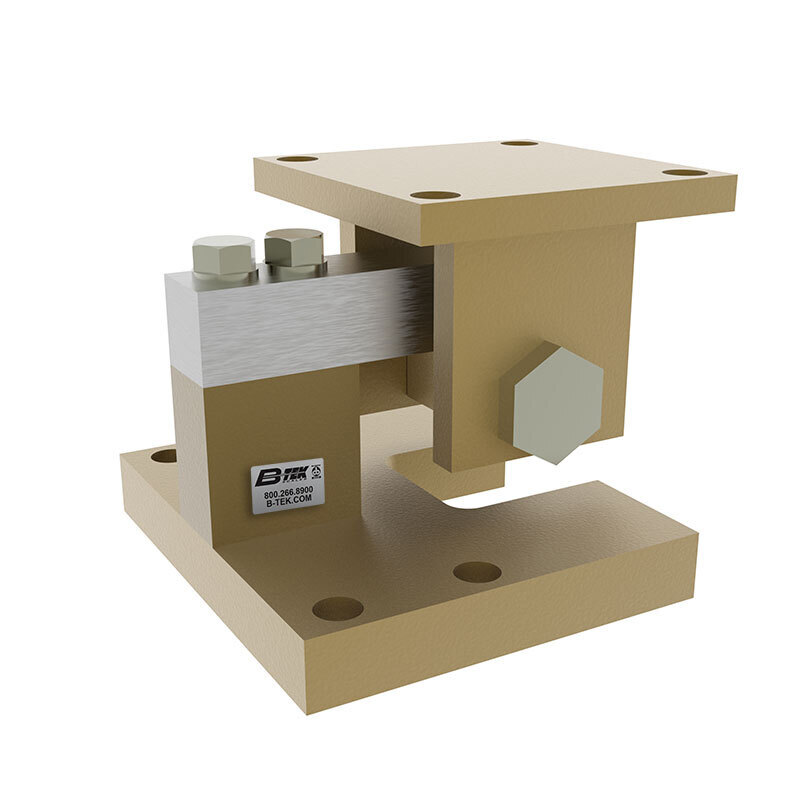

SETM2 Mount Kits are designed to simplify installation and improve serviceability for weighing systems in demanding environments. With features like SureShot Base Plates for precise anchor placement and wide bottom bases for added stability, the SETM2 ensures accurate, reliable performance in tanks, hoppers and other fixed installations. Built to minimize frustration and maximize efficiency, this mount kit offers technicians the flexibility they need without compromising durability or accuracy.
- Complete Kit Solution – Includes mounts, load cells, 25’ home run cable and a NEMA 4X stainless steel junction box

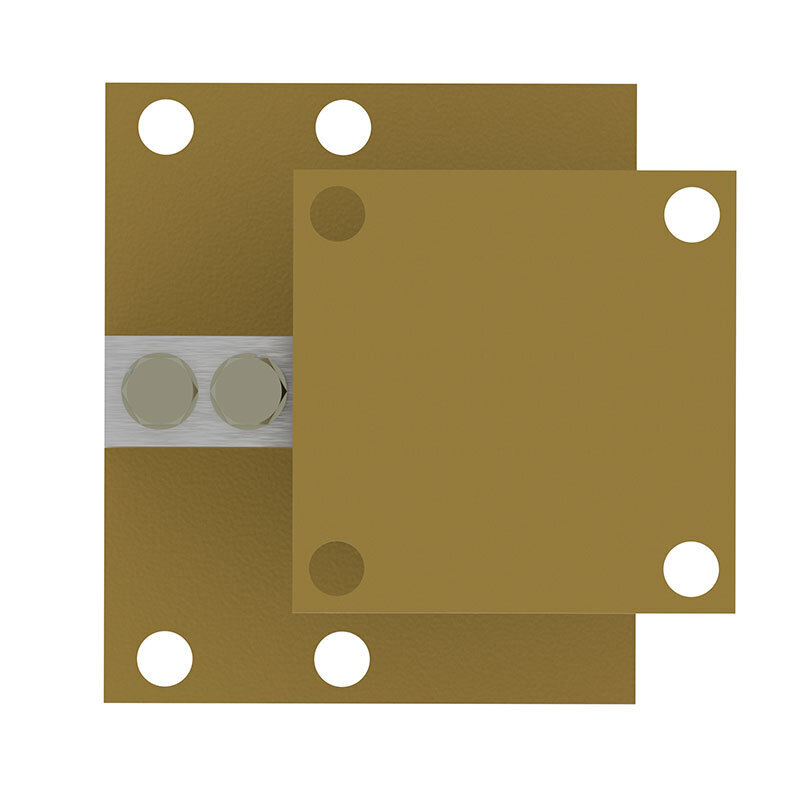

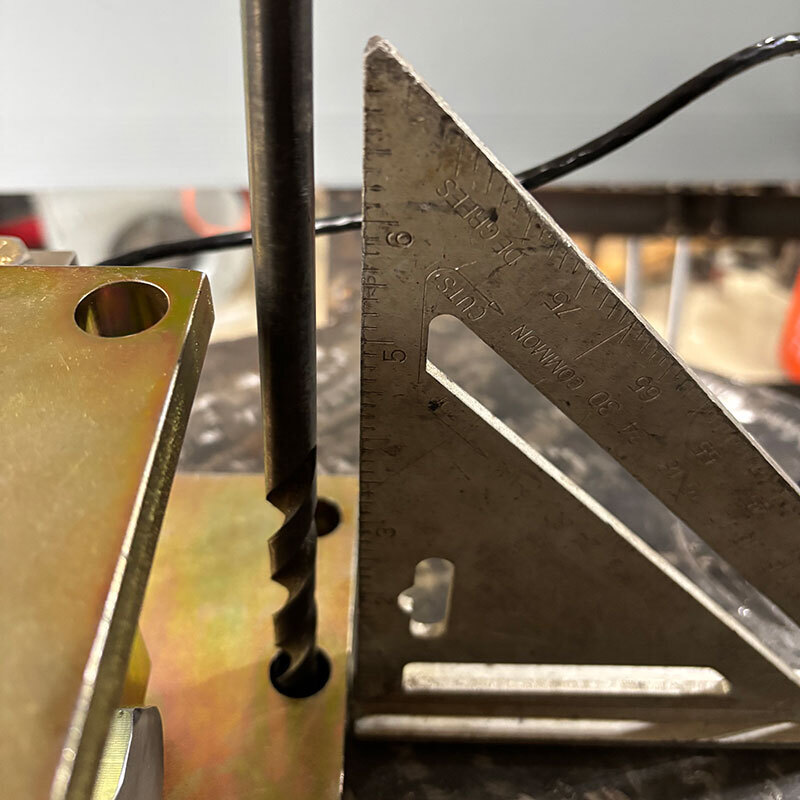

- SureShot Base Plates – Ensures accurate alignment with easy-to-drill anchoring holes
- Wide Bottom Base – Provides increased stability and improved access
- Durable Construction – Available in zinc-plated steel or stainless steel for enhanced corrosion resistance
- Load Cell Variety – Kit capacities ranging from 1.5k to 40k for flexibility across multiple applications
- No Base Plate Modifications – Eliminates the need for cutting, welding or adjusting mounting plates before installation
Details

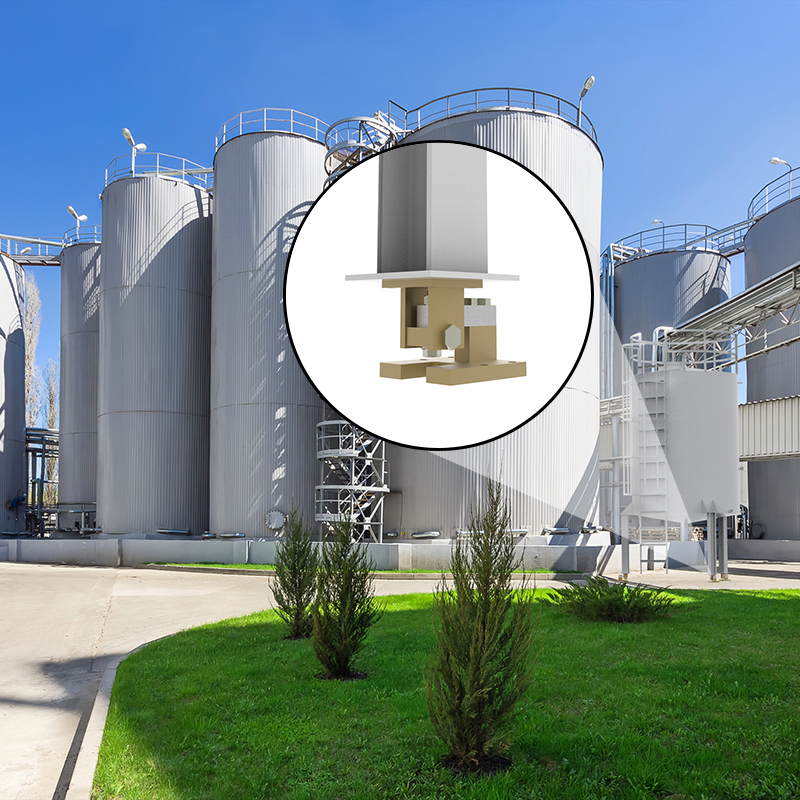

The SETM2 Mount is designed for secure, stable weighing in demanding industrial applications such as tanks, silos, mixers, grinders, hoppers and material handling systems. Featuring a wide bottom base, the SETM2 simplifies installation by enhancing access to anchor holes for improved stability and faster setup. With kit capacities ranging from 1.5k to 40k, this mount is available with zinc-plated steel or stainless steel load cells for durable performance in harsh environments. The SETM2 is engineered to reduce technician frustration with smarter mounting features for reliable results.
Each kit includes a NEMA 4x stainless steel junction box, mount assemblies, load cells and 25' home run cable.
Applications
- Tanks
- Silos
- Mixers
- Grinders
- Hoppers
- Material Handling Systems
Specifications
- Load Cell Capacities: 500 to 10k lbs
- Material: Carbon or stainless steel
- Junction box: B-TEK NEMA 4x stainless steel
- Self-checking
- Self-centering
- Kit Includes: Stainless steel junction box, mount assemblies, load cells and 25 feet of load cell cable
- Hermetically sealed and FM Approved cells available
