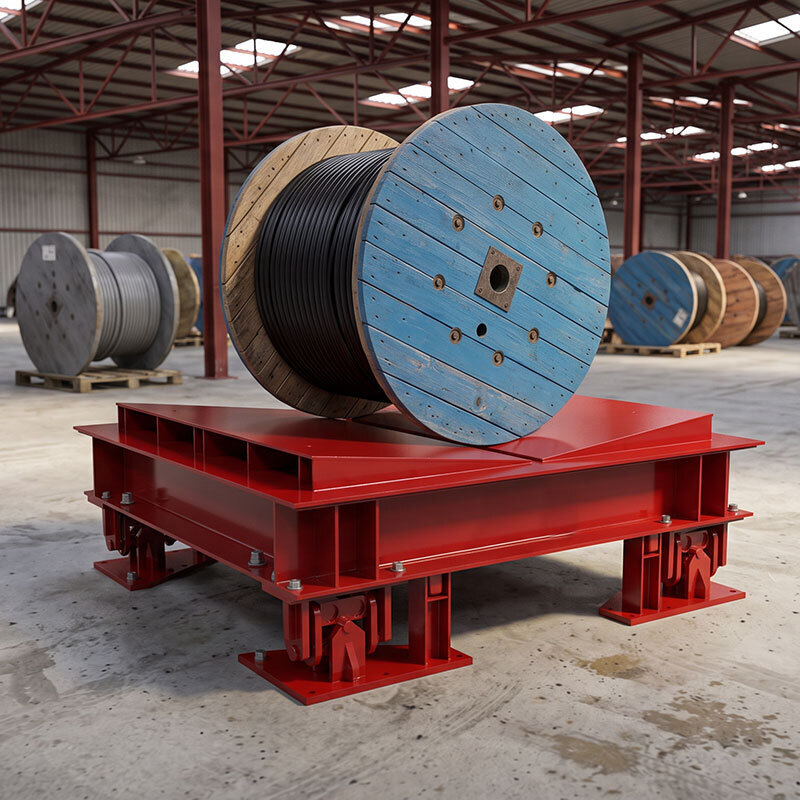

HI-IMPACT Analog Coil Scale

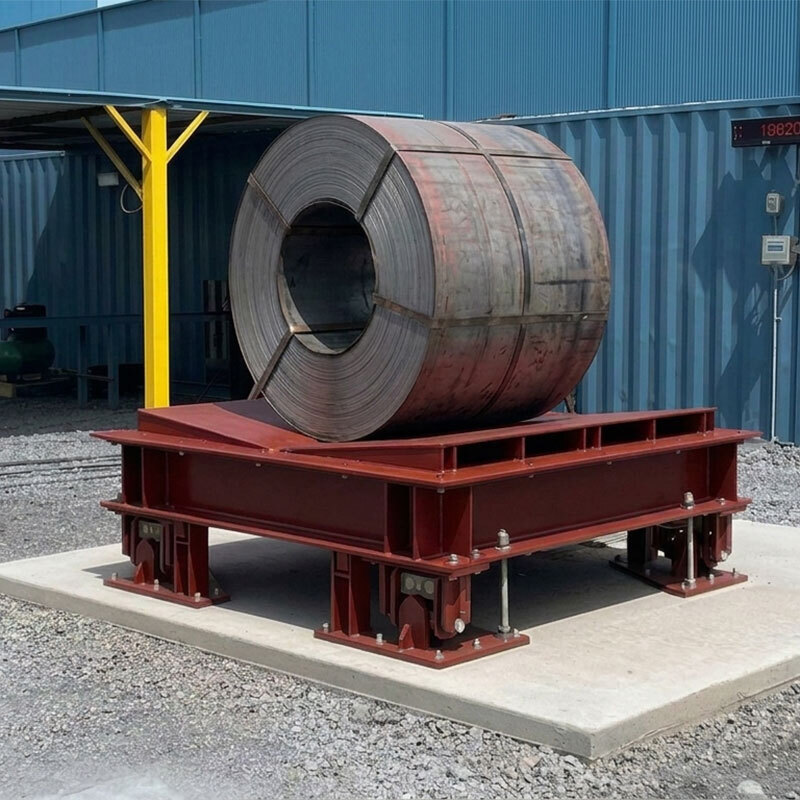

The HI-IMPACT scale is engineered for heavy manufacturing and material-handling applications, particularly in steel-processing environments. Ideal for weighing coils, slabs, billets, bars and rods, it features a rugged structural steel weighbridge and high-capacity design up to 120,000 lb. With durable construction and precision load cells, it delivers reliable, legal-for-trade performance in harsh industrial conditions.
- WF-Beam Weighbridge Construction – Provides strength for repeated high-impact loading in harsh environments
- Double-Ended Shear Beam Load Cells – Delivers accurate and stable weight measurement under heavy loads
- 360 Degree Checking System – Prevents excessive movement and protects components from damage
- Configurable Deck And Support Options – Adapts to coil handling, transfer cars and custom applications
- Shock Isolation – Reduces load impact stress with Fabreeka pad integration
Details

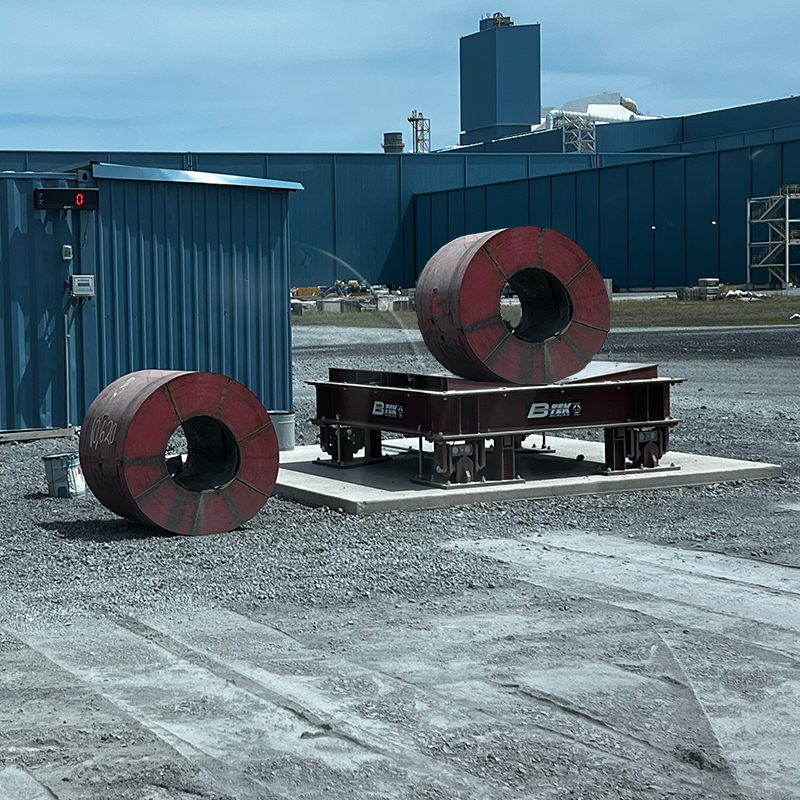

The B-TEK HI-IMPACT scale is designed to meet the demanding requirements of heavy manufacturing and steel processing facilities. Commonly used for weighing steel coils, slabs, billets, bars and rods, it combines a rugged WF-beam weighbridge with precision double-ended shear beam load cells to ensure long-term reliability and legal-for-trade accuracy. Its robust construction withstands high-impact loading and extreme industrial environments.
The HI-IMPACT can be configured with a V-deck for accurate coil positioning, a self-contained portability frame for flexible installation or integrated rails for coil transfer car weighing applications. This versatility makes it an ideal solution for steel coil processing plants requiring durability, accuracy, and adaptability.
B-TEK has 30 years of steel production/process application experience, and full customization is available to meet unique requirements.
- Flat deck

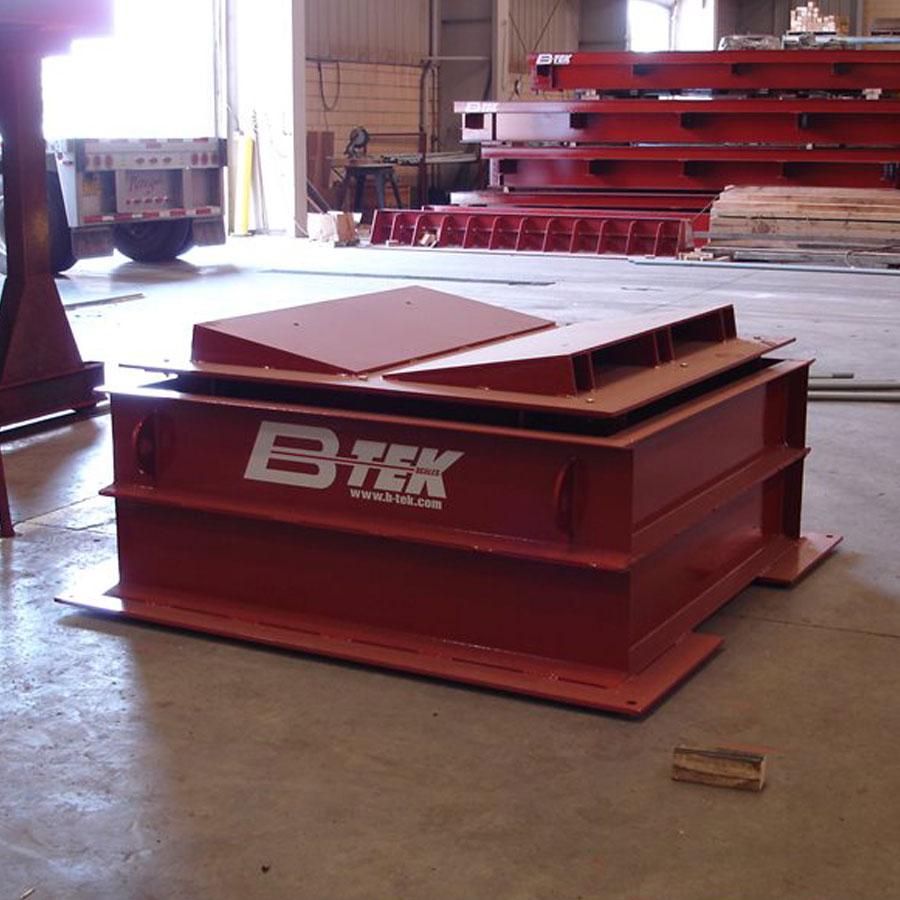

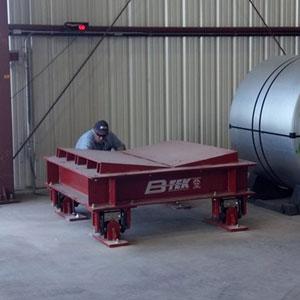

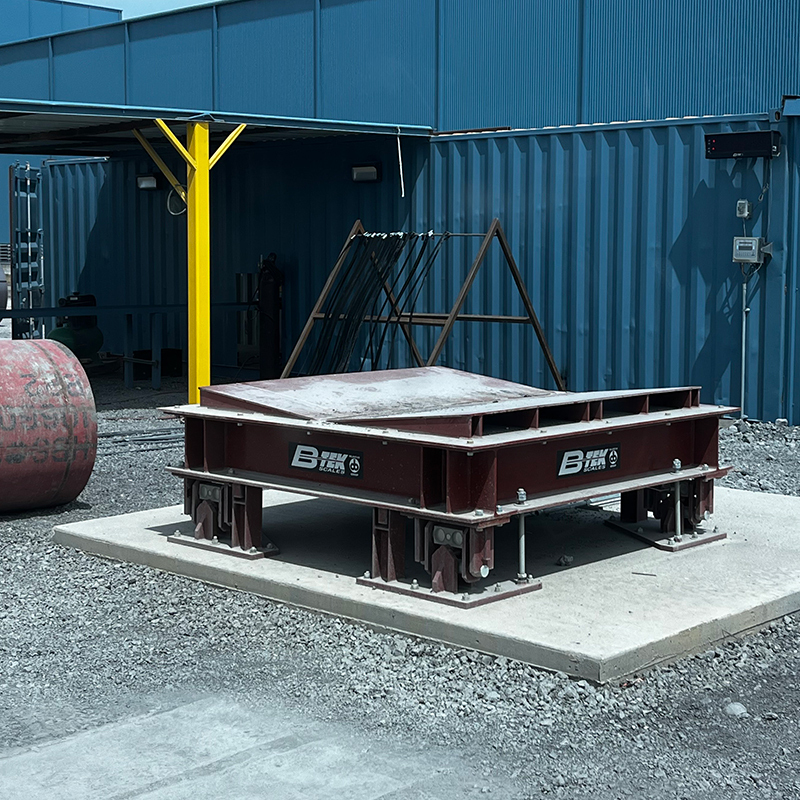

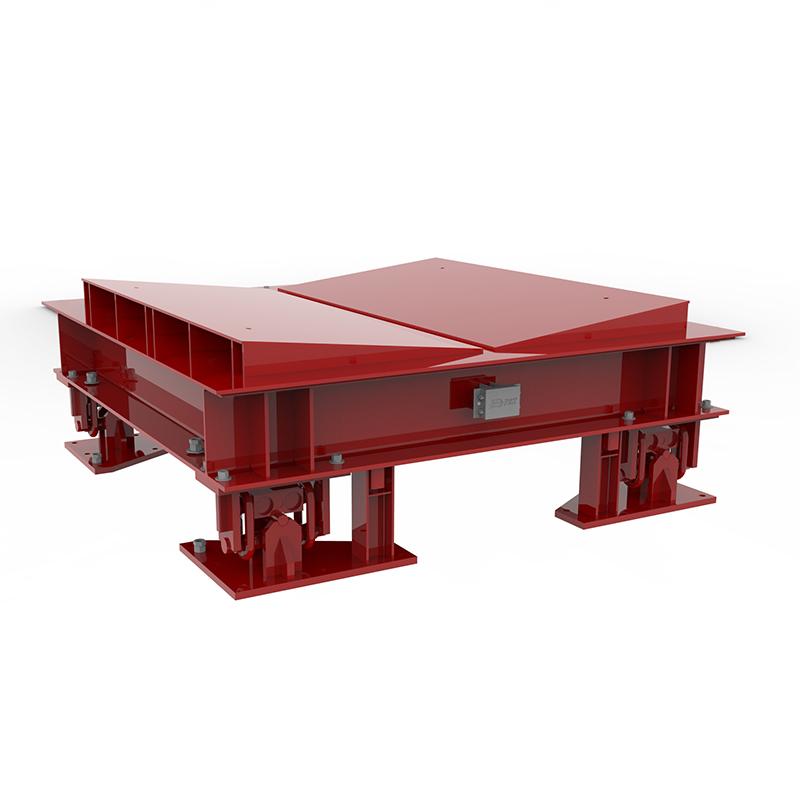

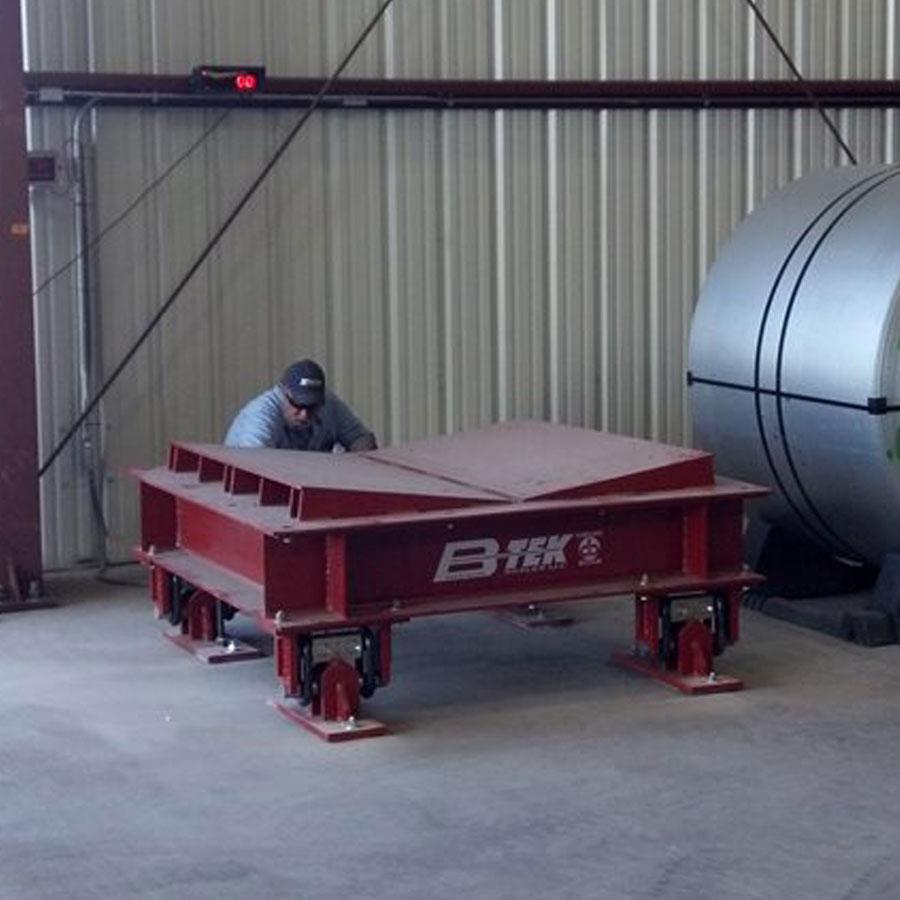

- V-deck for coil positioning
- Custom supports, racking, pipe cradle
- Portability / protective frame

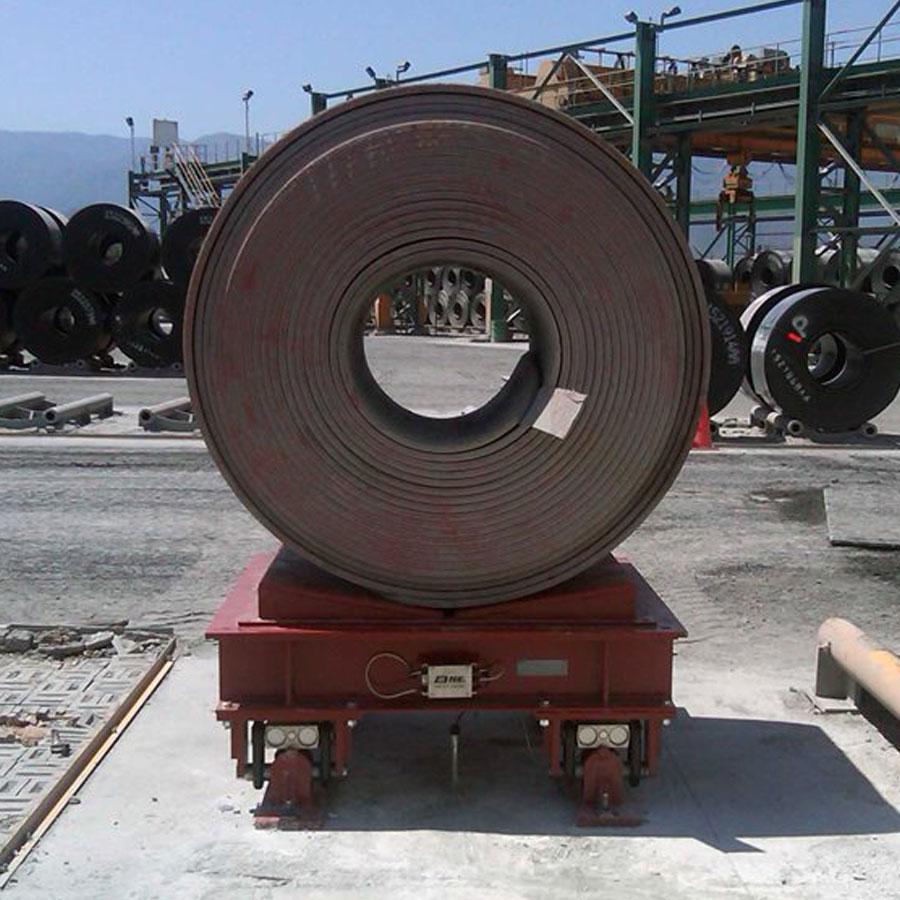

- Integrated rails for coil car weighing
- Manhole for pit installation
Specifications
- NTEP Certification: COC 97-132A
- Capacity Range: 20,000 to 120,000 lb (NTEP)
- Capacities Above 120,000 lb: Available (Non-NTEP)
- Platform Sizes: 4' x 6' to 20' x 10' (NTEP)
- Platform Height: 25” to 28” based on capacity
- Weighbridge Design: WF-beam with grid pattern construction
- Standard Deck: 1/2" smooth steel plate welded to weighbridge
- Special Deck: Up to 1” plate
- Load Cells: 25K to 65K Double-ended shear beam based on capacity
- Suspension System: Field proven parallel link suspension
- Checking: 360 degree motion and up-lift limiting system
- Optional Shock Isolation: Fabreeka pads for load shock isolation
- Design Options: Full electronic or electromechanical (Non-NTEP)
Industry Solution
- Manufacturing
- Steel
Input
- Analog
Capacity
- 40,000 lb
- 60,000 lb
- 80,000 lb
- 120,000 lb
Loading Resources ...
Options & Accessories
Loading Options & Accessories ...
Frequently Asked Questions
- 3-Year weighbridge warranty covering defects in materials and workmanship
- 2-Year components warranty covering defects in materials and workmanship
