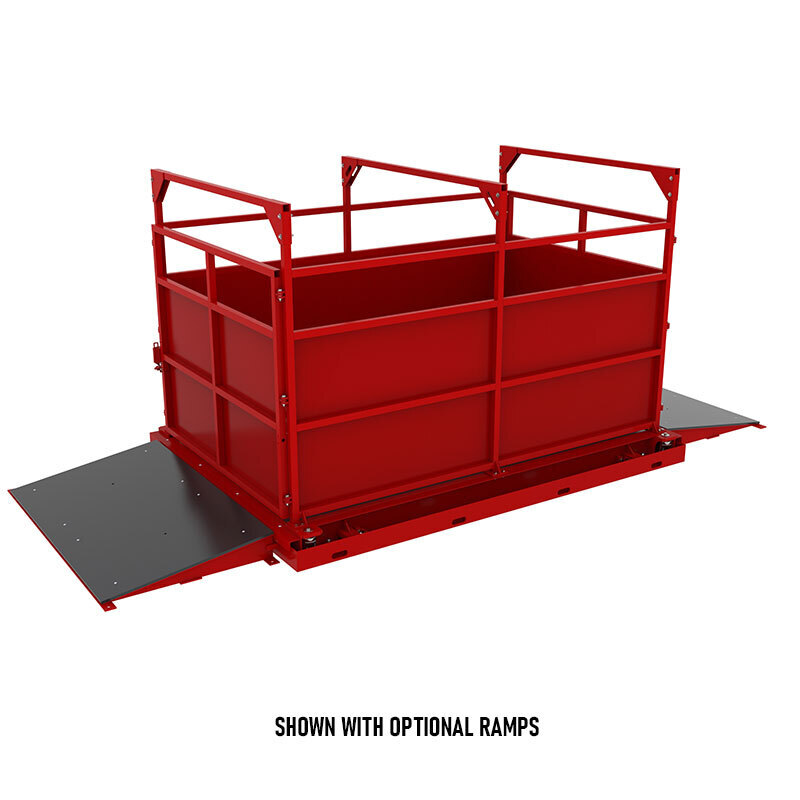

Multi-Animal Livestock Scale
The B-TEK Multi-Animal Livestock Scale is built for accurate, dependable weighing in demanding agricultural environments. Designed to handle the unpredictable movement and impact of livestock, this scale uses corner-mounted compression load cells with 8× overload protection to withstand shock loading. A rigid structural containment frame and secure footing help maintain animal calmness during weighing. Integrated jack bolts and external load cell access simplify inspection and service. Available in analog or digital configurations, the scale is built for long-term durability in the field.
- Rigid Containment Frame – Resists stress and repeated livestock impact
- Integrated Jack Bolts – Allows controlled lifting without special equipment
- 8× Overload Protection – Protects load cells from shock loading and sudden impact forces
- Removable Wood Deck With Rubber Mat – Enhances traction while allowing fast deck replacement
- IP68/IP69K Canister Cells – Supports washdown environments and long-term field reliability
- Advanced Checking System - Reinforced checking design limits side-to-side and end-to-end movement, improving weighing stability
Details
The B-TEK Multi-Animal Livestock Scale is engineered with a focus on durability, serviceability and real-world livestock handling conditions. A reinforced structural containment frame resists torsional stress and repeated impact from animal movement while maintaining structural integrity over time.

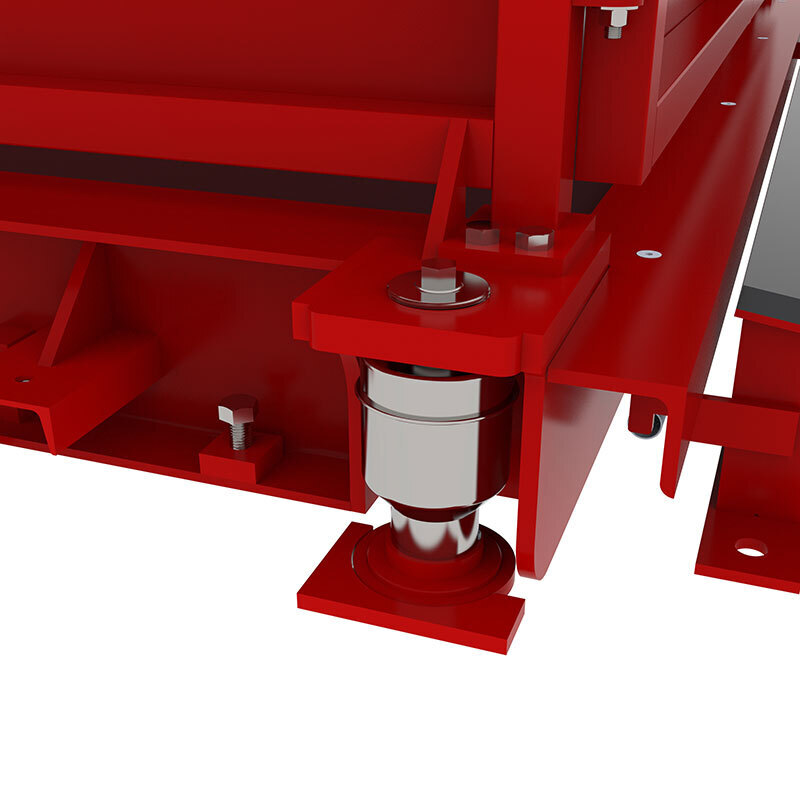

Corner-mounted compression canister load cells are externally accessible and rated IP68/IP69K, allowing operation in washdown environments without compromising performance. Integrated jack bolts at each corner allow controlled lifting for inspection or load cell replacement without requiring additional lifting equipment.

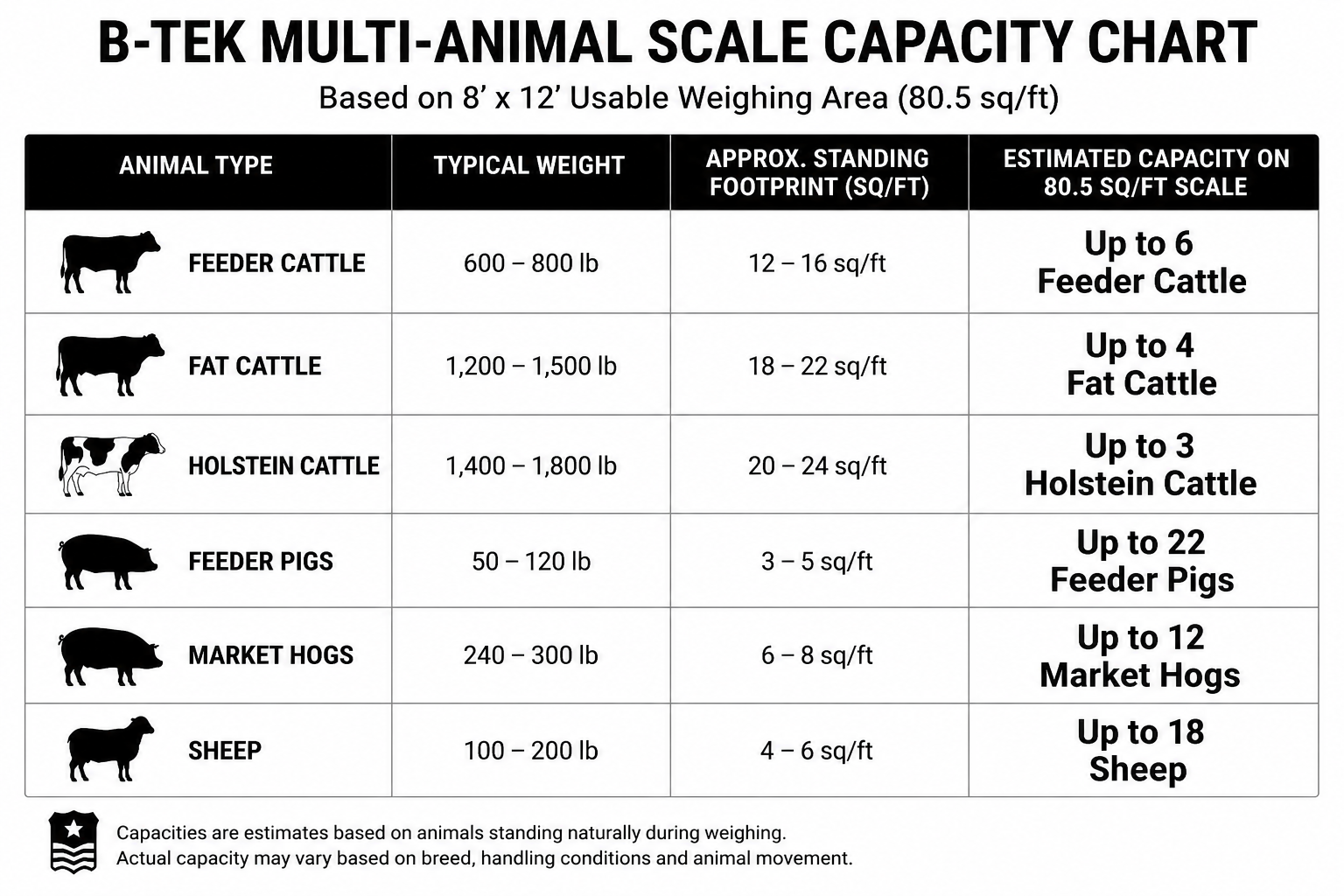

The standard 8 ft by 12 ft scale supports up to 20,000 lb at 5 lb divisions. Additional scale sizes up to 102 square feet are available to accommodate varying herd sizes and facility layouts. A removable wood deck with a durable rubber mat provides secure footing, helping reduce animal stress while allowing fast deck replacement when needed.
Installation flexibility includes an above-ground containment frame, a permanent baseplate installation or a pit configuration. A reversible heavy-duty door supports left- or right-hand flow and is designed to withstand repeated use in high-traffic environments.
Specifications
- Capacity: 20,000 lb
- Division Size: 5 lb
- Scale Size (Standard): 8′ × 12′
- Additional Sizes: Available up to 102 sq ft
- Load Cell Type: Corner-mounted compression canister
- Load Cell Options: Analog or Digital
- Overload Protection: 8× system capacity
- Frame Options: With frame (standard) or without frame (stands)
- Door Configuration: Reversible heavy-duty doors
- Containment Panel Height: 4.5 ft
- Installation Options Above-ground containment frame, base-plate permanent installation or pit installation
