EZTM2 Mount Kit
Click to rotate this product
Featured Product
https://www.b-tek.com/products/application-specific-weighing/load-cell-mount-kits/eztm2-mount-kit
Share this product beyond Facebook and Twitter!
Product Code:
915-5559

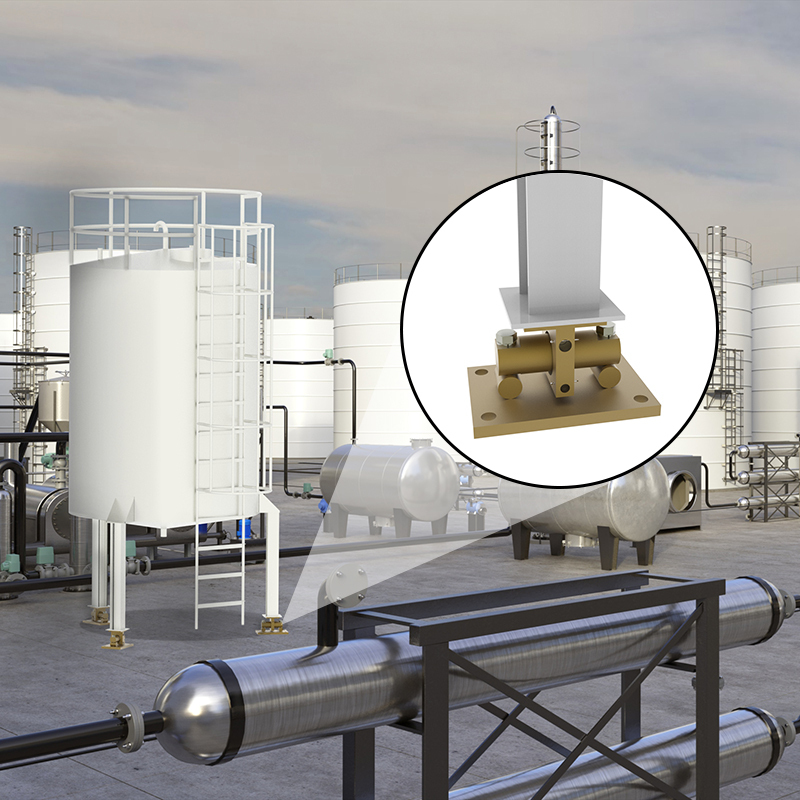

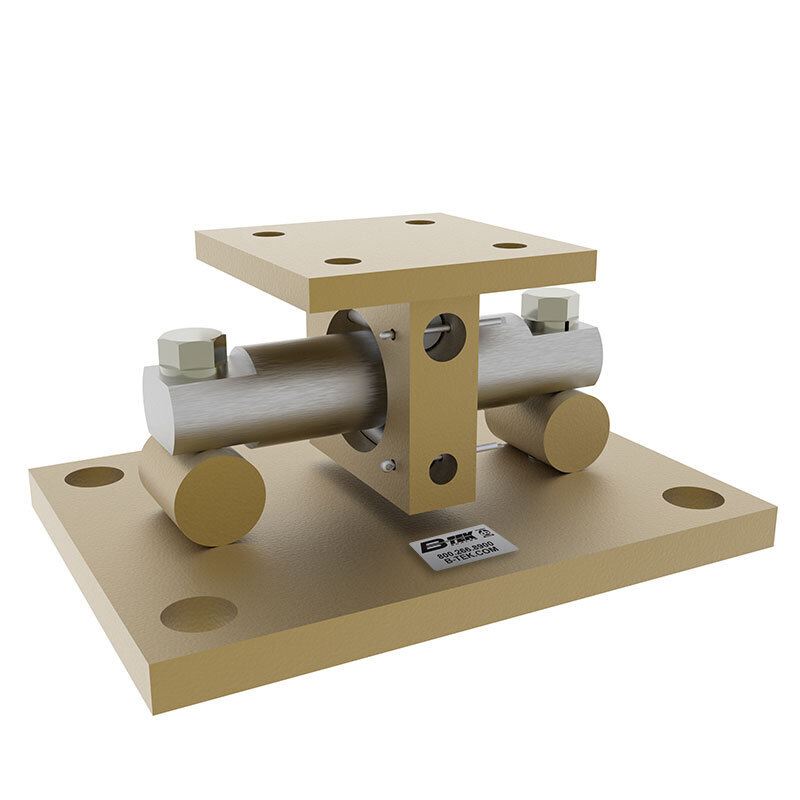

The EZTM2 Mount Kit simplifies installation and improves serviceability for weighing systems in demanding environments. Featuring SureShot Base Plates for precise anchor placement and enhanced accessibility for fast installation, the EZTM2 Mount Kit offers reliable performance in tanks, hoppers and other fixed installations. The EZaccess top plate provides clear access to the load cell mounting bolts, allowing technicians to use a ratchet or impact wrench for easier maintenance. Moved holes on the bottom plate provide additional flexibility for improved stability and faster setup.
- Complete Kit Solution – Includes mounts, load cells, 25’ home run cable and a NEMA 4X stainless steel junction box
- SureShot Base Plates – Ensures accurate alignment with easy-to-drill anchoring holes

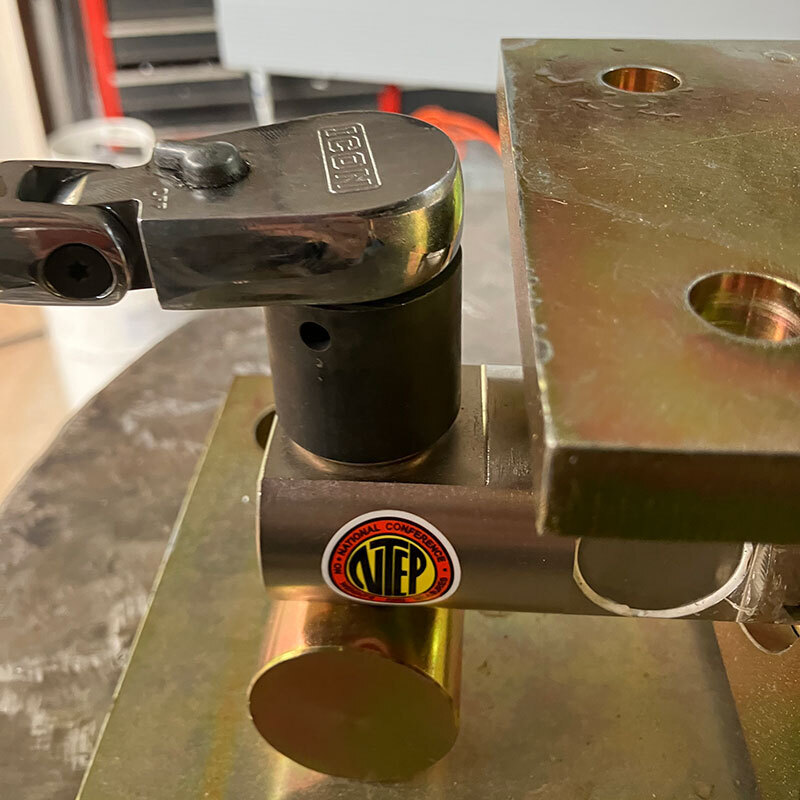

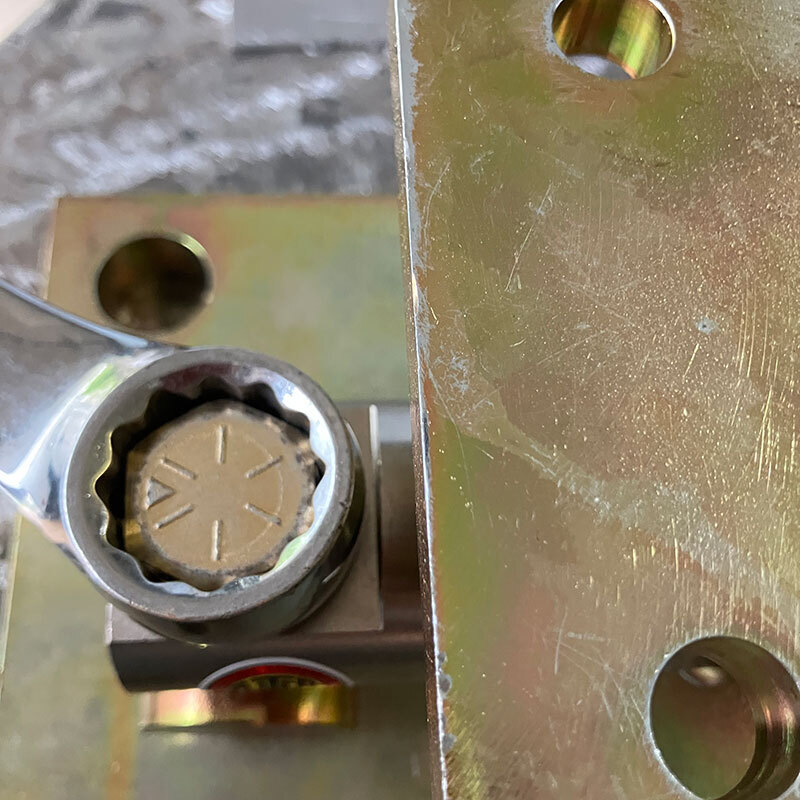

- EZaccess Top Plates - Provide clear access to load cell mounting bolts, allowing technicians to use a ratchet or impact wrench for easier maintenance
- Durable Construction – Available in zinc-plated steel or stainless steel for enhanced corrosion resistance
- Load Cell Variety – Kit capacities ranging from 15k to 400k for flexibility across multiple applications
Details
The EZTM2 Mount Kit is designed to simplify installation and improve serviceability for weighing systems in demanding environments. Featuring SureShot Base Plates for precise anchor placement and enhanced accessibility for fast installation, the EZTM2 Mount Kit offers reliable performance in tanks, hoppers and other fixed installations. The EZaccess top plate provides clear access to the load cell mounting bolts, allowing technicians to use a ratchet or impact wrench for easier maintenance. Moved holes on the bottom plate provide additional flexibility for improved stability and faster setup.

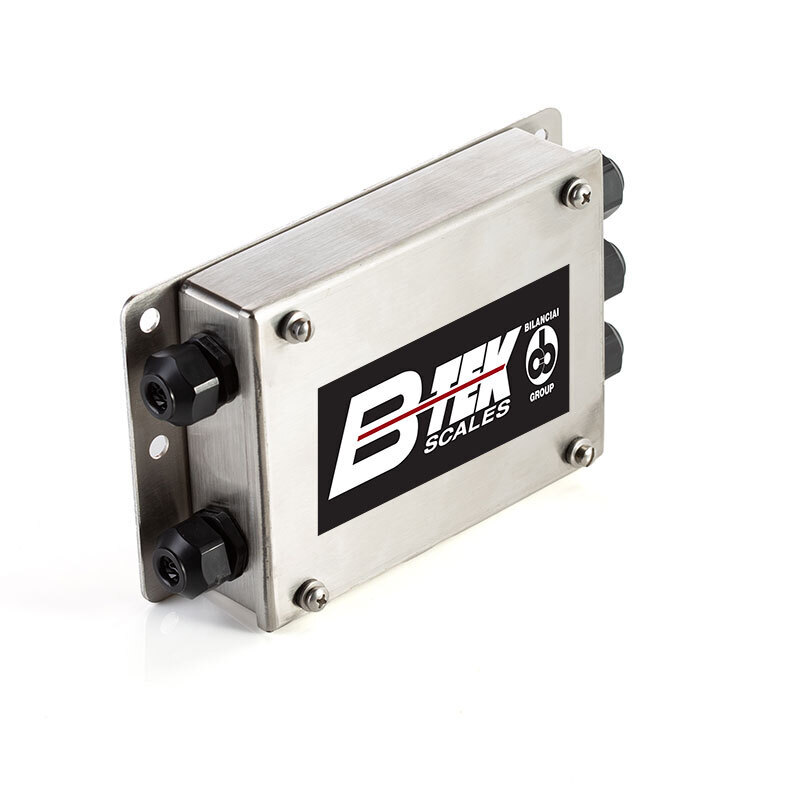

Each kit includes a NEMA 4x stainless steel junction box, mount assemblies, load cells and 25' home run cable.
Applications:
Applications:
- Tanks
- Silos
- Mixers
- Grinders
- Hoppers
- Material Handling Systems
Specifications
- Load Cell Capacities: 5k to 100k lbs.
- Finish: Carbon or stainless steel
- Self-checking
- Self-centering
- Hermetically sealed and FM Approved cells available

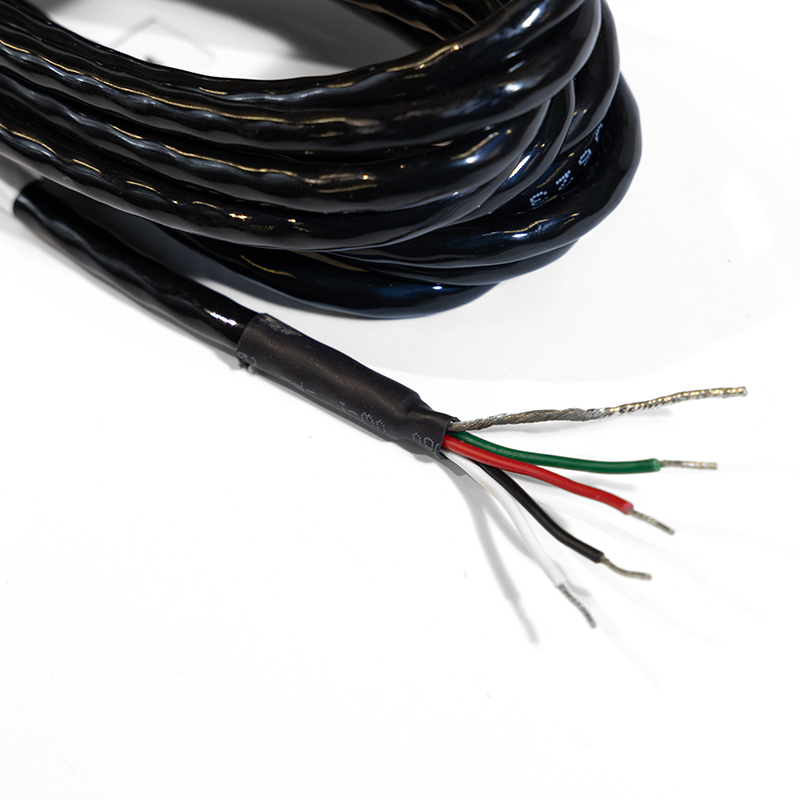

- Kit Includes: Stainless steel junction box, mount assemblies, load cells and 25 feet of load cell cable
