Details

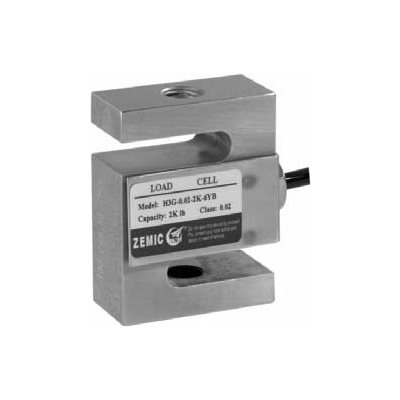

The ZEMIC H3G S-Type Load Cell is ideal for hanging hopper, and other weighing devices. This S-type load cell is made with nickel-plated alloy steel with an IP rating of IP67. Offering a wide range of capacities, this load cell also has a cable length of 20 ft.

Interchangeable Products: Revere M363, Celtron STC, Sensortronics 60001, Artech 20210, Rice Lake RL20000/20001, Totalcomp TS-SS, Transcell BSA/BSS, Vishay STC

Specifications

  • Max No. of Verification Intervals: 5000/10000 Nmax
  • Min Load Cell Verification Intervals: Class III/IIIL Vmin
  • Output Sensitivity: 3.0±0.008 mV/V
  • Input Resistance: 350 ± 3.5 ohms
  • Output Resistance: 350 ± 3.5 ohms
  • Insulation Resistance: =5000 (50 VDC)
  • Temperature:
  • Compensated 14° to 104° F / -10° to 40° C
  • Operating 31° to 158° F / -31° to 70° C
  • Excitation, Recommended: 5~12 V (DC) Excitation, Max: 18 V (DC)
  • Safe Overload: 150% Full Scale
  • Ultimate Overload: 300% Full Scale
  • Seal Type: Environmentally sealed - IP67
  • Cable Length: 20 ft

Max Cell Capacity

  • 250 lb
  • 750 lb
  • 100 lb
  • 200 lb
  • 300 lb
  • 75 lb
  • 150 lb
  • 50 lb
  • 500 lb
  • 1,000 lb
  • 1,500 lb
  • 2,000 lb
  • 2,500 lb
  • 3,000 lb
  • 5,000 lb
  • 10,000 lb
  • 15,000 lb
  • 20,000 lb

Frequently Asked Questions

Revere M363, Celtron STC, Sensortronics 60001, Artech 20210, Rice Lake RL20000/20001, Totalcomp TS-SS, Transcell BSA/BSS, Vishay STC
