Details

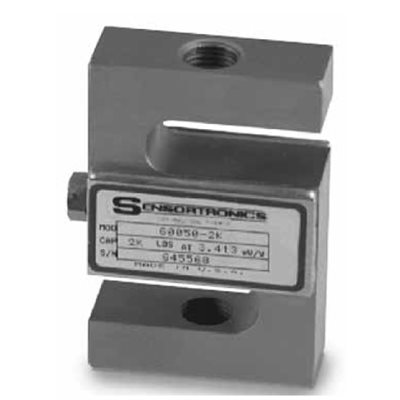

The Sensortronics60050 is stainless steel, s-type load cell that is environmentally sealed. It is designed for single or multiple-cell load applications. Its capacities range from 250 to 20,000 lb, and it comes complete with 20 ft of load cell cable.

Interchangeable Products: Celtron STC-SS



FMApproved

Specifications

  • Full Scale Output: 3.0 mV/V
  • Bridge Resistance: 350 ohms
  • Material/Finish: Stainless steel
  • Temperature: Compensated 14° to 104° F / -10° to 40° C
  • Operating 0° to 150° F / -18° to 65° C
  • Safe Overload: 150% Full scale
  • Rated Excitation: 10 V DC (15 V max)
  • Combined Error: 0.03% Full scale
  • Insulation Resistance: =5000 megohms
  • Seal Type: Environmentally sealed - IP67
  • Cable Length: 20 ft
  • Approvals: FM Approved

Max Cell Capacity

  • 250 lb
  • 750 lb
  • 500 lb
  • 1,000 lb
  • 1,500 lb
  • 2,000 lb
  • 2,500 lb
  • 3,000 lb
  • 5,000 lb
  • 10,000 lb
  • 15,000 lb
  • 20,000 lb
