Details

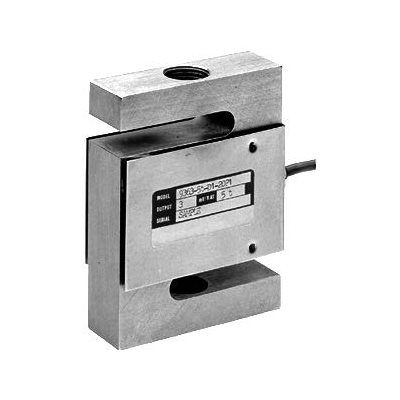

The Revere 9363 stainless steel, s-type load cell with a compact and economical design is ideally suited for scale conversions and general-purpose weighing. NTEP-Certified capacities range from 100 to 10,000 lb, and non-NTEP-Certified capacity of 50 lb. Each load cell is supplied with 20 ft of load cell cable. The load cell's trimmed outputs make installation easy.

 NTEPLogo

FMApproved thumb

Specifications

  • Full Scale Output: 3.0 mV/V
  • Input Resistance: 390 ohms
  • Output Resistance: 350 ohms
  • Material/Finish: Stainless steel
  • Temperature: Compensated 14° to 104° F / -10° to 40° C Operating -65° to 200° F / -54° to 94° C
  • Safe Overload: 150% Full scale
  • Rated Excitation: 10 V DC (15 V max)
  • Combined Error: 0.025% Full scale
  • Insulation Resistance: =5000 megohms
  • Seal Type: Environmentally sealed - IP67
  • Cable Length: 20 ft

Max Cell Capacity

  • 100 lb
  • 200 lb
  • 300 lb
  • 750 lb
  • 500 lb
  • 1,000 lb
  • 1,500 lb
  • 2,000 lb
  • 3,000 lb
  • 5,000 lb
  • 10,000 lb
  • 15,000 lb
  • 20,000 lb
