Details

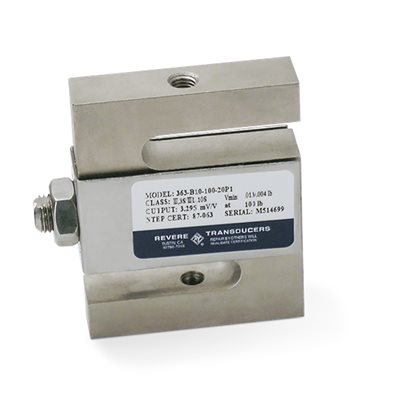

The Revere 363 nickel-plated, alloy steel, s-type load cell with a compact and economical design is ideally suited for scale conversions and general-purpose weighing. NTEP Certified capacities range from 100 to 10,000 lb; non-NTEP Certified capacity of 50 lb. Complete with 20 ft of load cell cable.

Interchangeable Products: ZEMIC H3G

 NTEPLogo

FMApproved thumb

Specifications

  • Full Scale Output: 3.0 mV/V
  • Input Resistance: 430 ohms
  • Output Resistance: 390 ohms
  • Material/Finish: Nickel-Plated Alloy steel
  • Temperature: Compensated 14° to 104° F / -10° to 40° C Operating -40° to 150° F / -18° to 65° C
  • Safe Overload: 150% Full scale
  • Rated Excitation: 10 V DC (15V max)
  • Combined Error: 0.02% Full scale
  • Insulation Resistance: =5000 megohms
  • Seal Type: Environmentally sealed - IP67
  • Cable Length: 20 ft

Max Cell Capacity

  • 200 lb
  • 300 lb
  • 750 lb
  • 100 lb
  • 500 lb
  • 1,000 lb
  • 1,500 lb
  • 2,000 lb
  • 3,000 lb
  • 5,000 lb
  • 10,000 lb
